Temperature Control Switch

TEMPERATURE CONTROL SWITCH

REMOVAL
1. Remove the climate control assembly.
2. Pull and remove the temperature control switch knob.







3. Remove the temperature control switch.

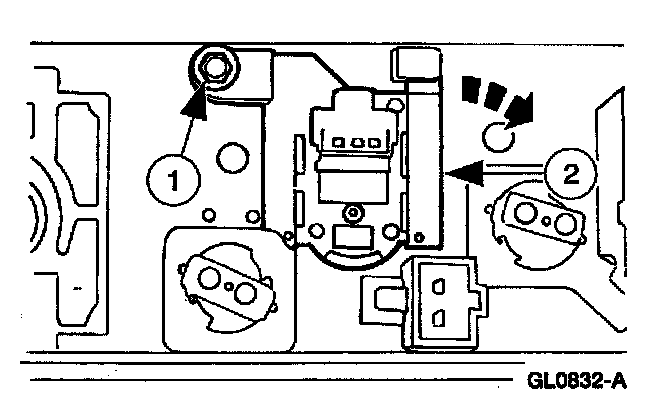

1 Remove the screw.
2 Rotate and remove the temperature control switch.

INSTALLATION
1. To install, reverse the removal procedure.
