Manual A/C

CLIMATE CONTROL ASSEMBLY - MANUAL A/C

REMOVAL

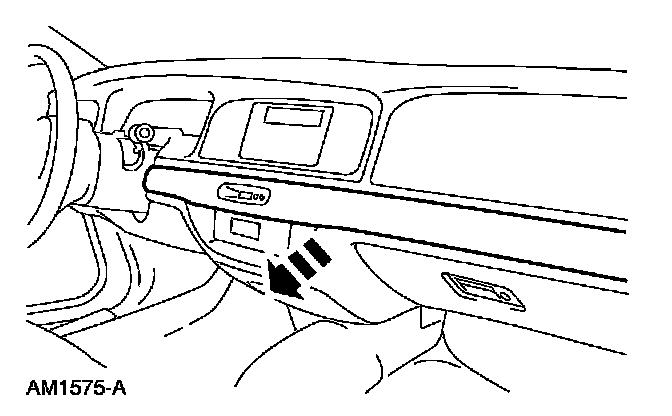

1. Remove the finish panel.

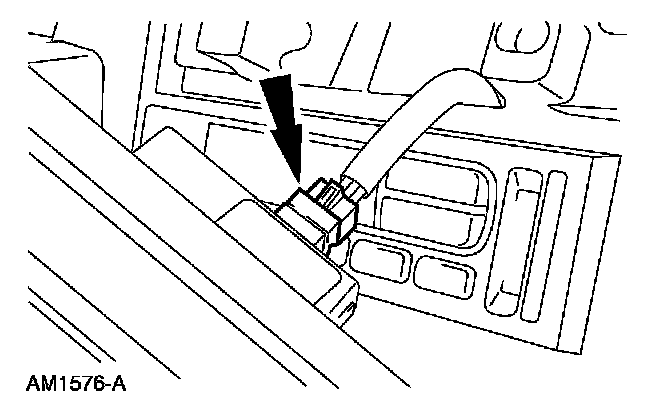

2. Disconnect the connector.

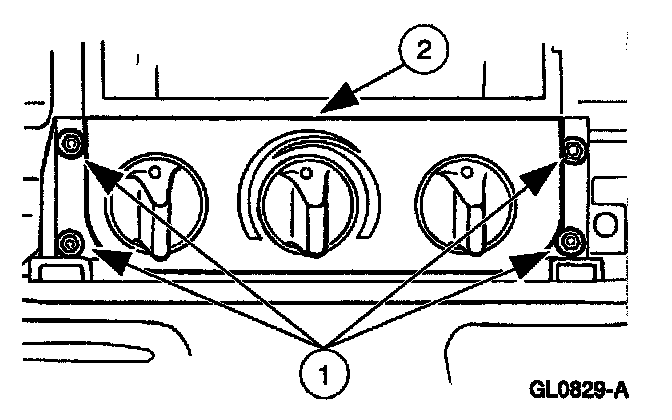

3. Remove the climate control head.
1 Remove the screws.
2 Remove the climate control head.







4. Disconnect the climate control assembly.
1 Disconnect the electrical connectors.
2 Disconnect the vacuum line connector.

INSTALLATION
1. To install, reverse the removal procedure.
