Blower Motor: Service and Repair

BLOWER MOTOR

REMOVAL

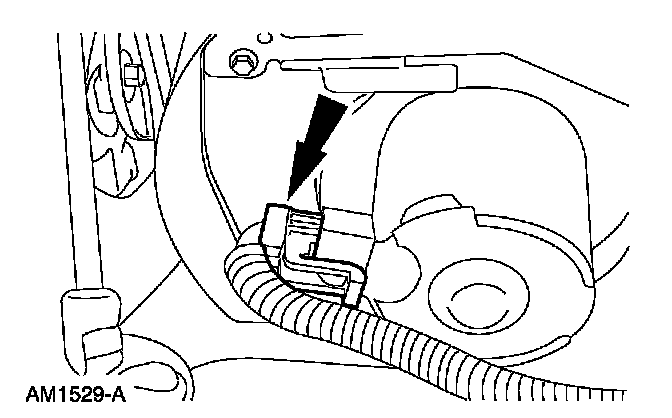

1. Disengage the wire harness connectors from the retainer.

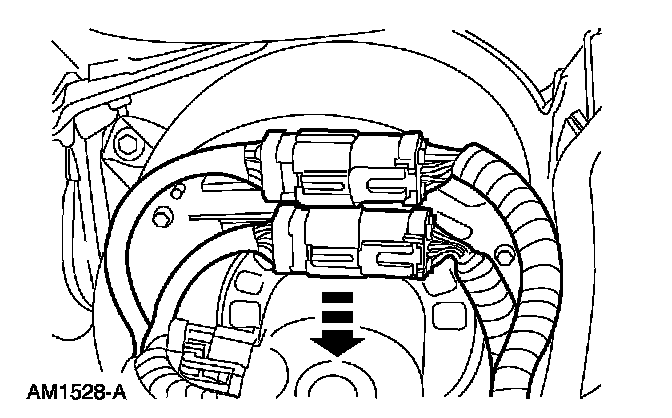

2. Disconnect the blower motor electrical connector.

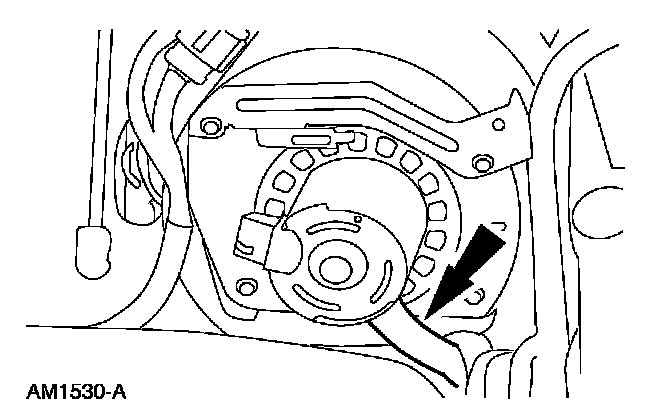

3. Remove the hose.

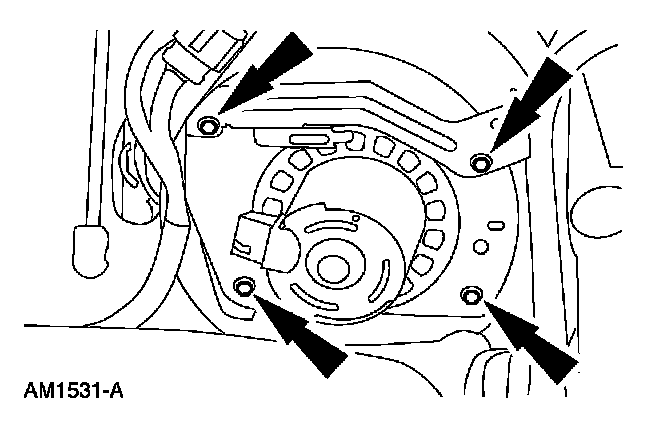

4. Remove the screws and remove the blower motor.







5. CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting shaft.

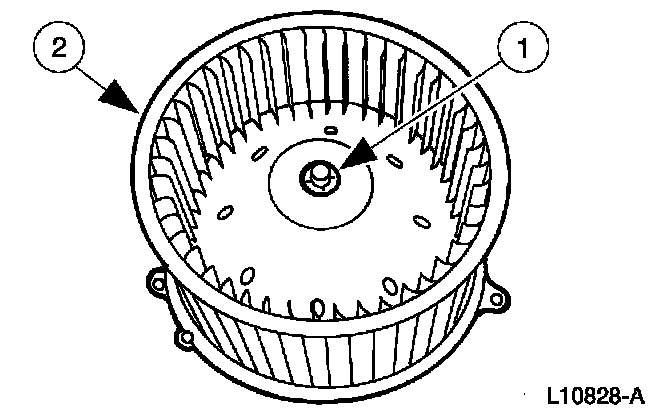

Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel from the blower motor.

INSTALLATION
1. To install, reverse the removal procedure.
