Exhaust Manifold LH

Exhaust Manifold LH

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the negative battery cable.
3. Remove the left front wheel and tire.
4. Remove the exhaust manifold heat shield.





5. Disconnect the exhaust pipe from the exhaust manifold.





6. Disconnect the Exhaust Gas Recirculation (EGR) system module tube from the exhaust manifold.

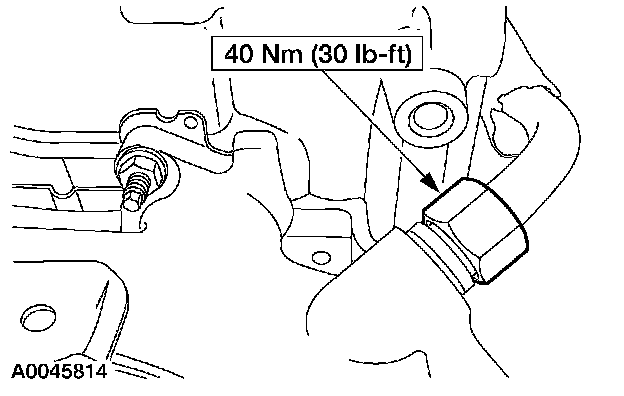

7. Disconnect and remove the Heated Oxygen Sensor (HO2S).

LH:

8. Remove the eight nuts, the exhaust manifold and the gasket.
9. To install, reverse the removal procedure.
