Piston Pin Connecting Rod, Press Fit

Piston-Pin Connecting Rod Assembly, Press Fit

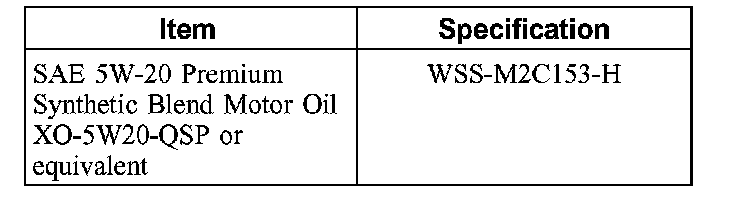

Material

Disassembly

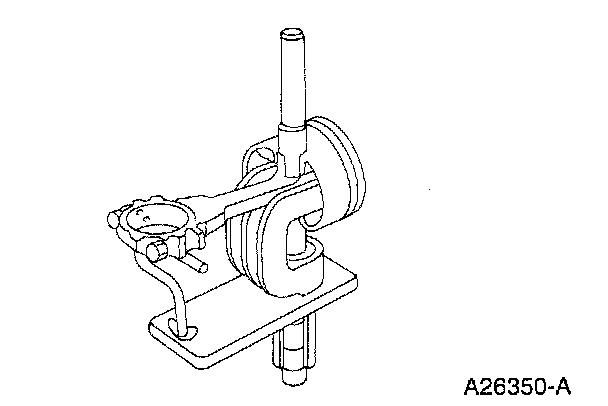

1. Use an appropriate piston pin tool to press the piston pin out from the connecting rod and piston assembly.

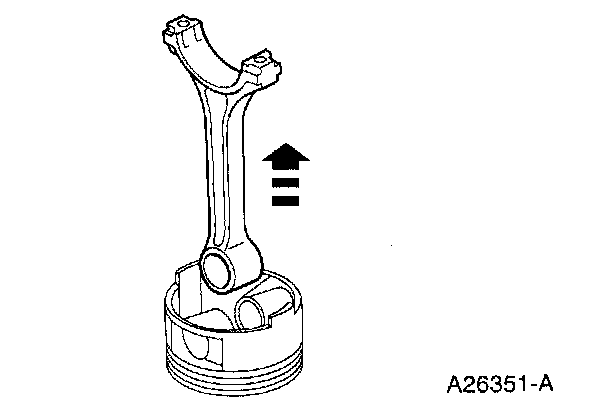

2. Remove the connecting rod from the piston.
3. Clean and inspect the connecting rod and piston.

Assembly





1. Lubricate the piston pin and piston pin bore with clean engine oil.





2. NOTE: The connecting rod can be installed in either direction.

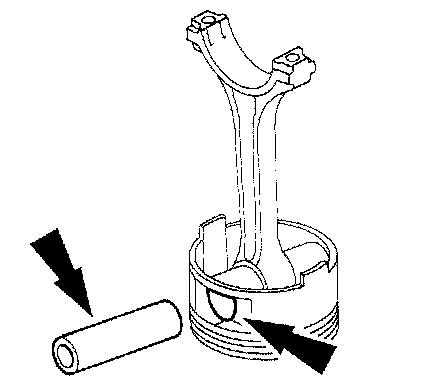

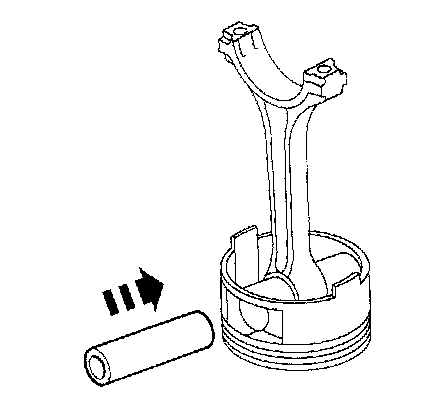

Position the piston pin in the bore aligned with the connecting rod bore.





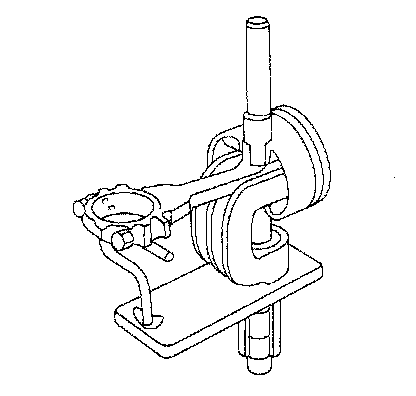

3. Use the piston pin tool to press the piston pin into the piston and rod assembly.
