Valve Guide Seal: Service and Repair

Valve Seals

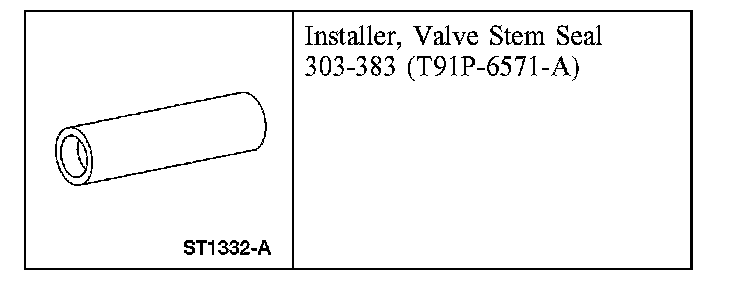

Special Tool(s)

Removal
1. Remove the valve springs.





2. Remove the valve stem seals.

Installation





1. NOTE: The valve stem seal must be bottomed on the valve seat.

NOTE: Make sure that the garter spring is present in the valve stem seal.

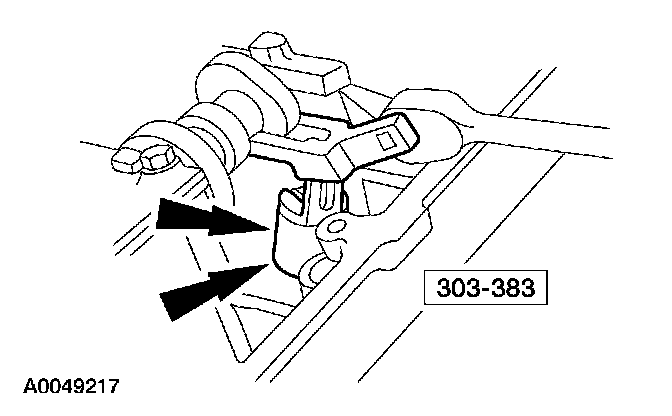

Use the special tool to install the valve stem seals.
2. Install the valve springs.
