Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal

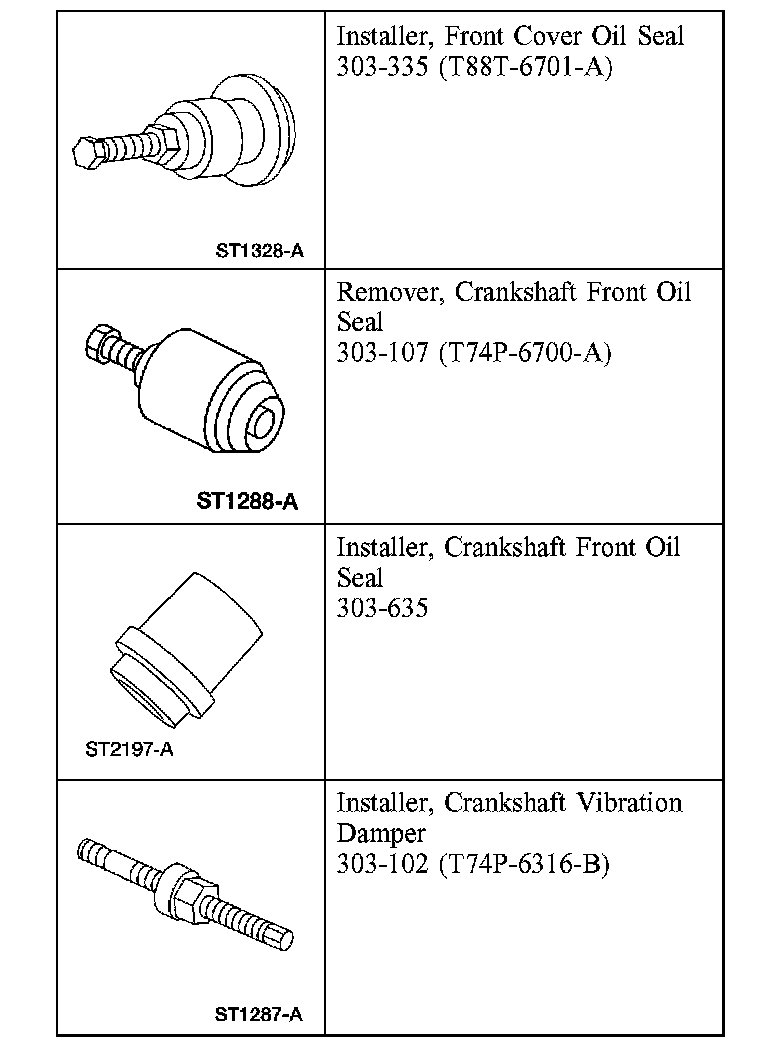

Special Tool(s)

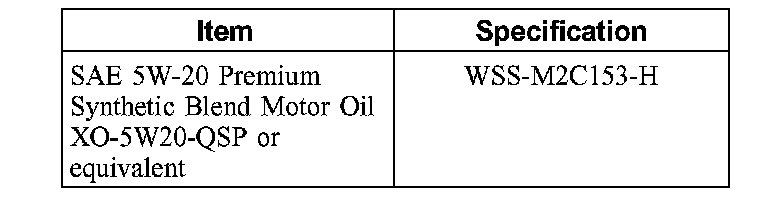

Material

Removal
1. Remove the crankshaft pulley.

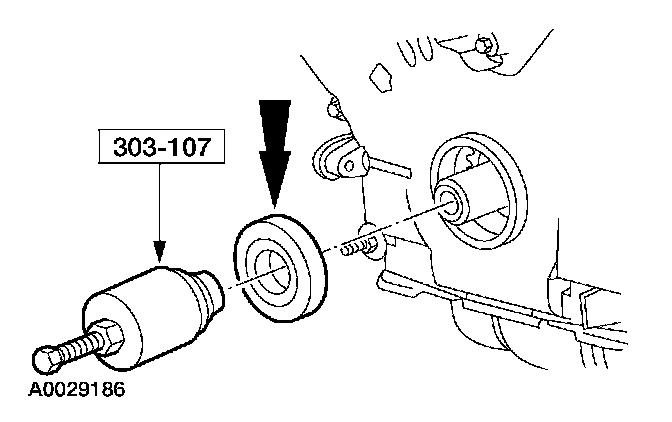

2. Use the special tool to remove the front cover seal.

Installation





1. Lubricate the engine front cover and the front oil seal inner lip with clean engine oil.

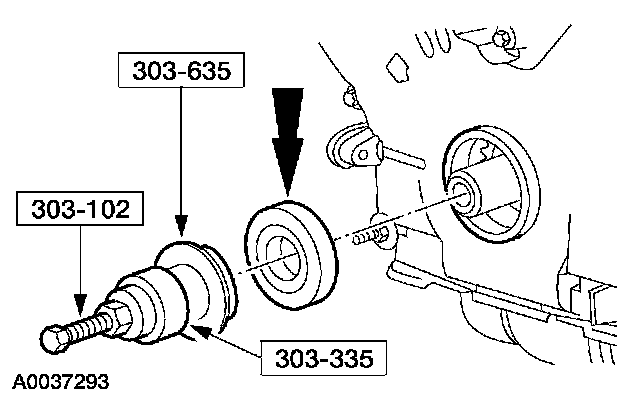

2. Use the special tools to install the crankshaft front seal into the engine front cover.
3. Install the crankshaft pulley.
