Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

Removal and Installation
1. Remove the exhaust manifold.

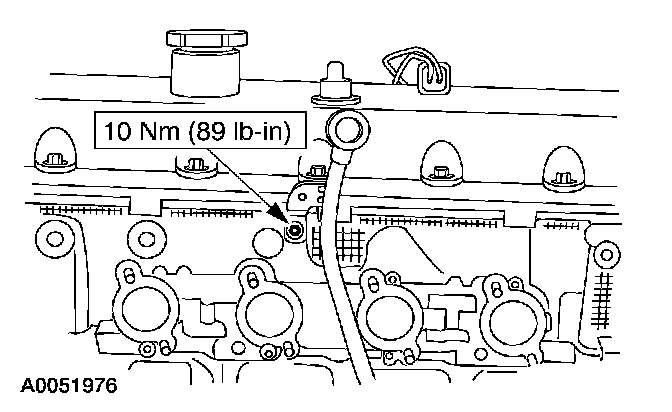

2. Remove the bolt and the oil level indicator tube.

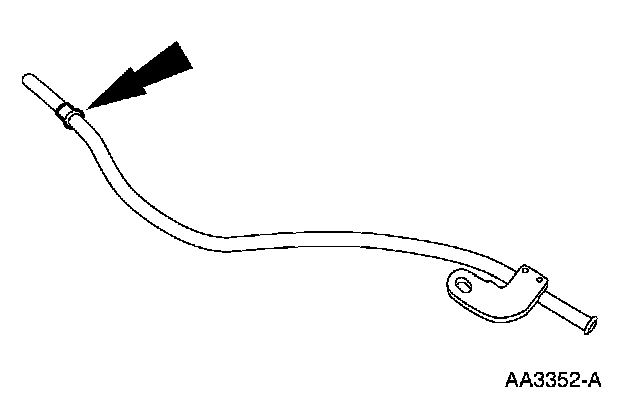

3. Inspect the O-ring; install a new O-ring if necessary.
4. To install, reverse the removal procedure.
