Radiator Cooling Fan Motor: Service and Repair

Cooling Fan Motor and Shroud

Removal and Installation
1. Remove the degas bottle.

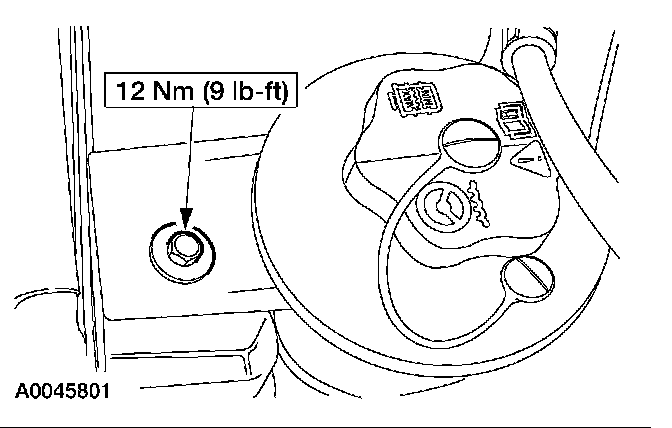

2. Remove the bolt and position the power steering reservoir aside.

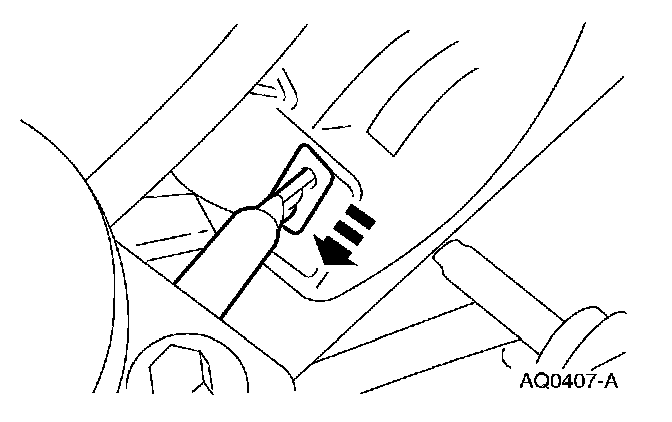

3. Disconnect the connector.

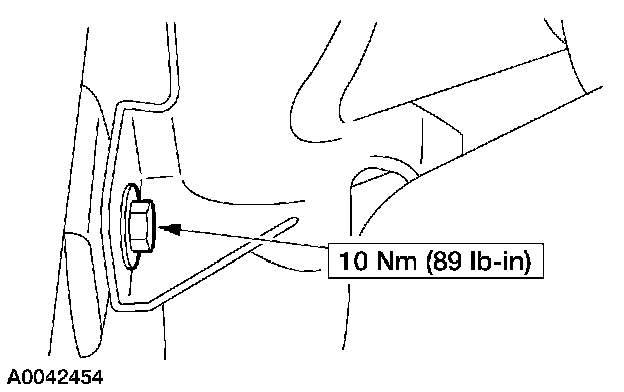

4. Remove the two bolts and the fan blade, fan motor and the fan shroud assembly. To install, reverse the removal procedure.
