Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Parking Brake System
Parking Brake System
Parking Brake

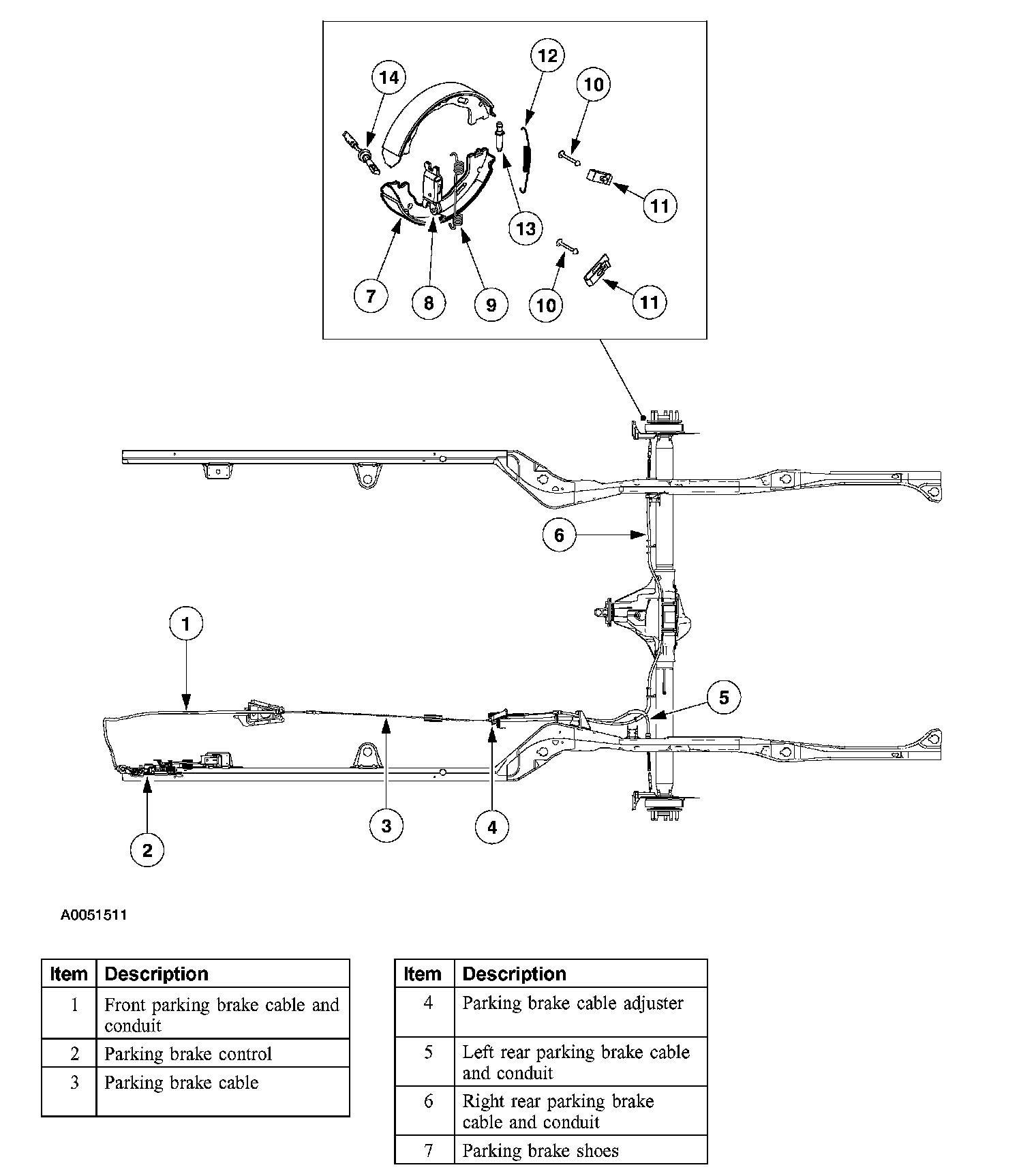

Parking Brake System Part 1 Of 2:

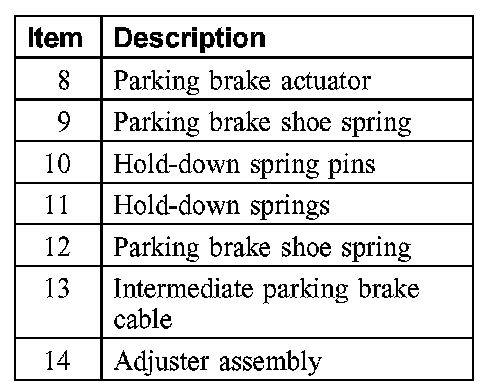

Parking Brake System Part 2 Of 2:
Parking Brake System
