Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Front

Front

Front Disc Brake

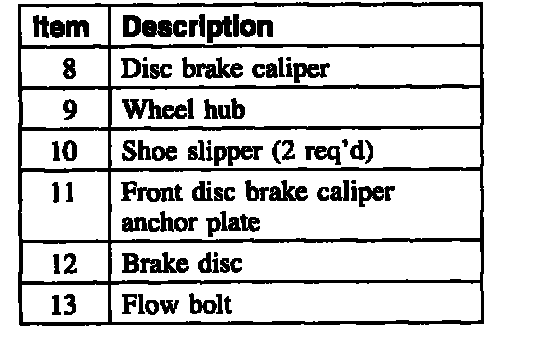

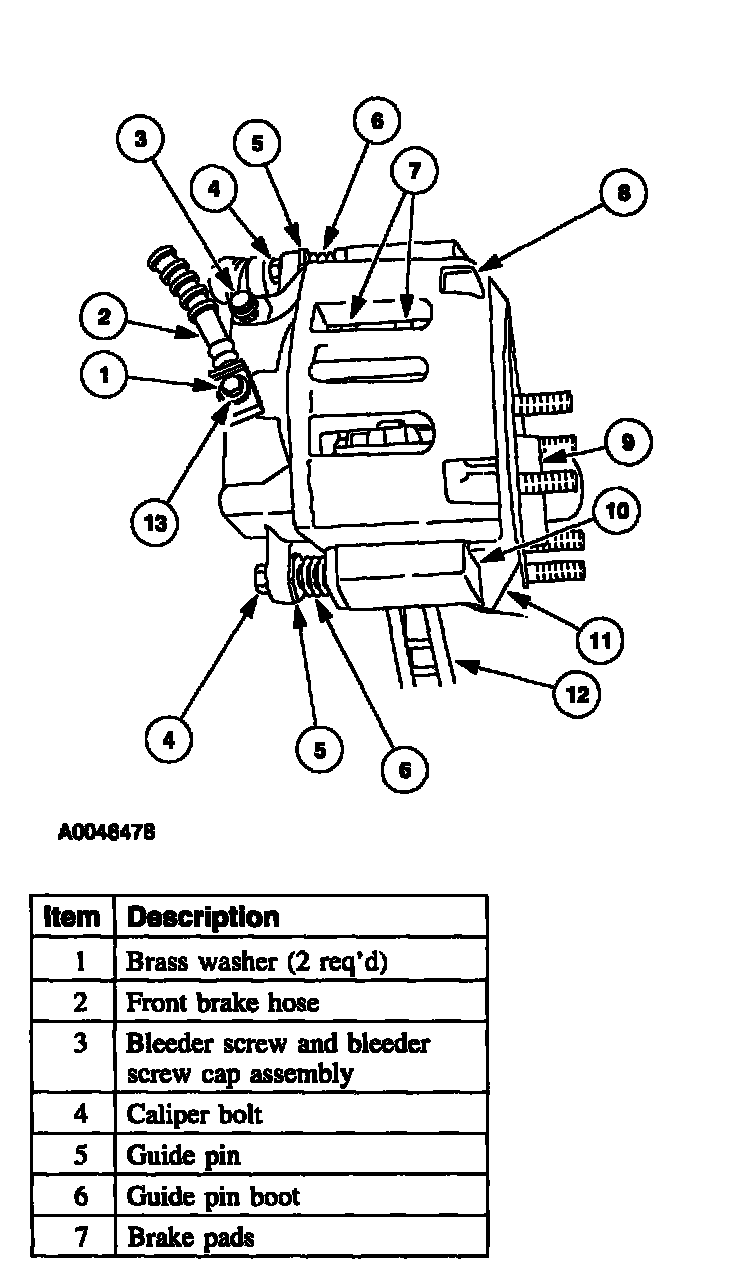

Front Disc Brake Components

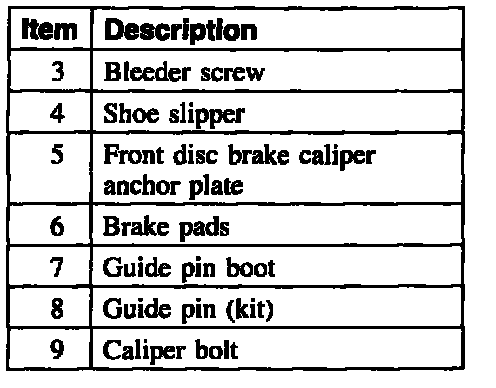

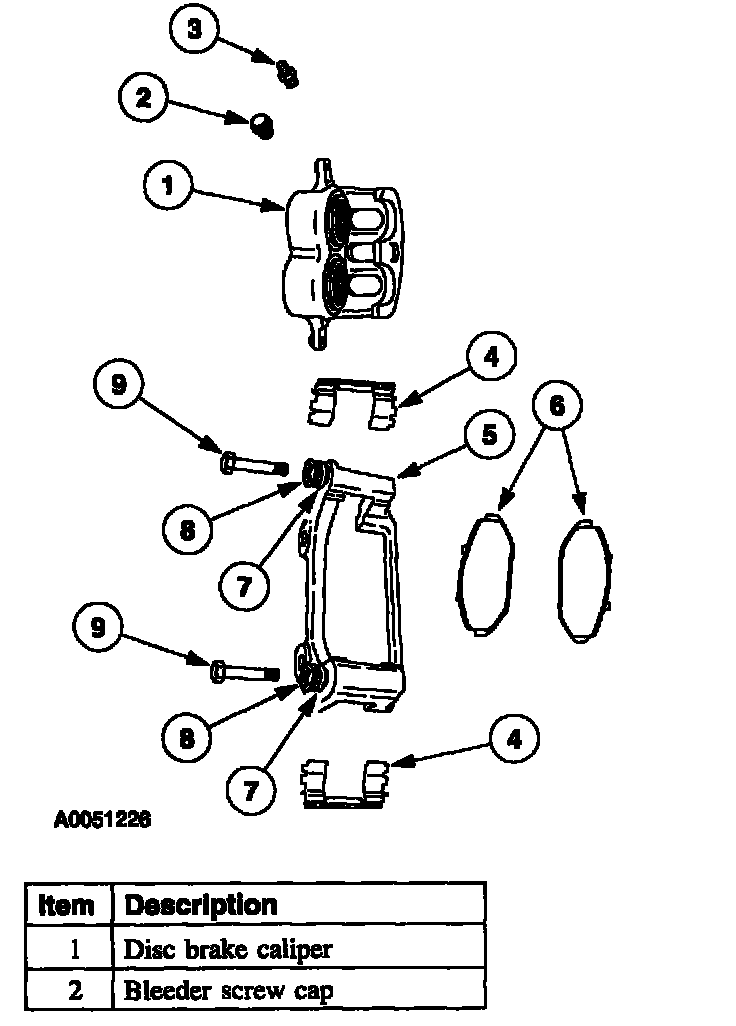

Disc Brake Caliper Components
