Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

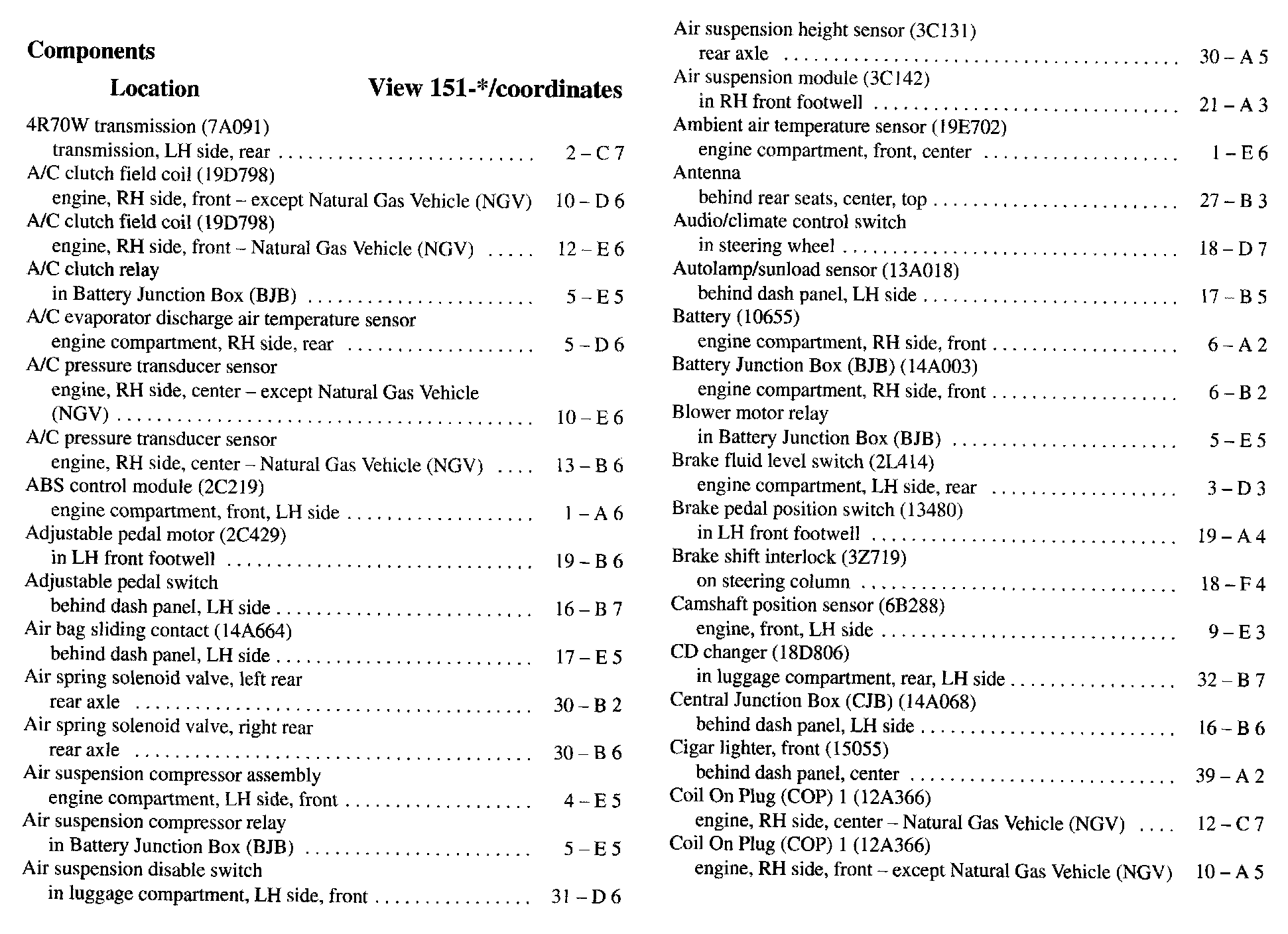

4R-Co:

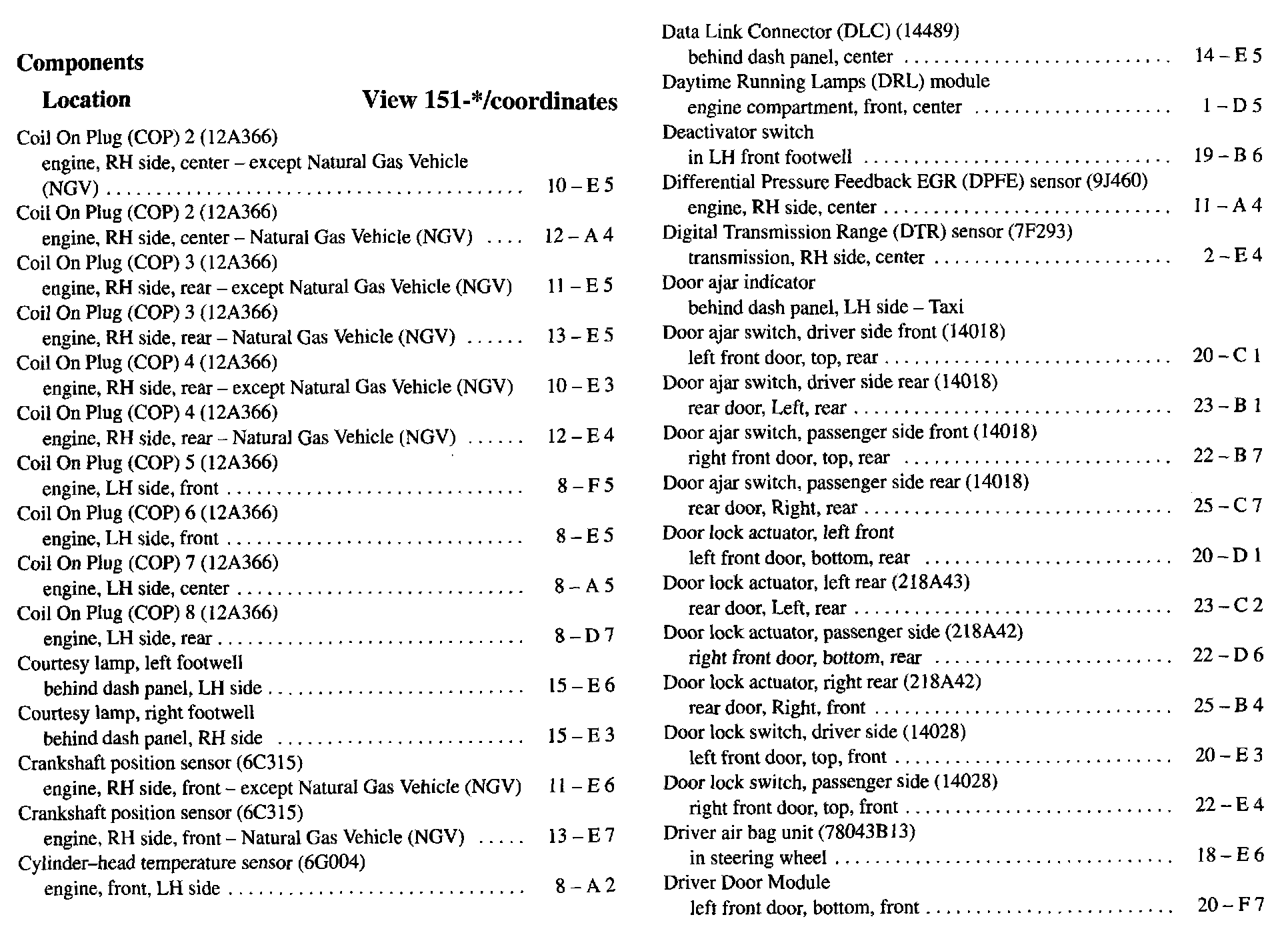

Co-Dr:

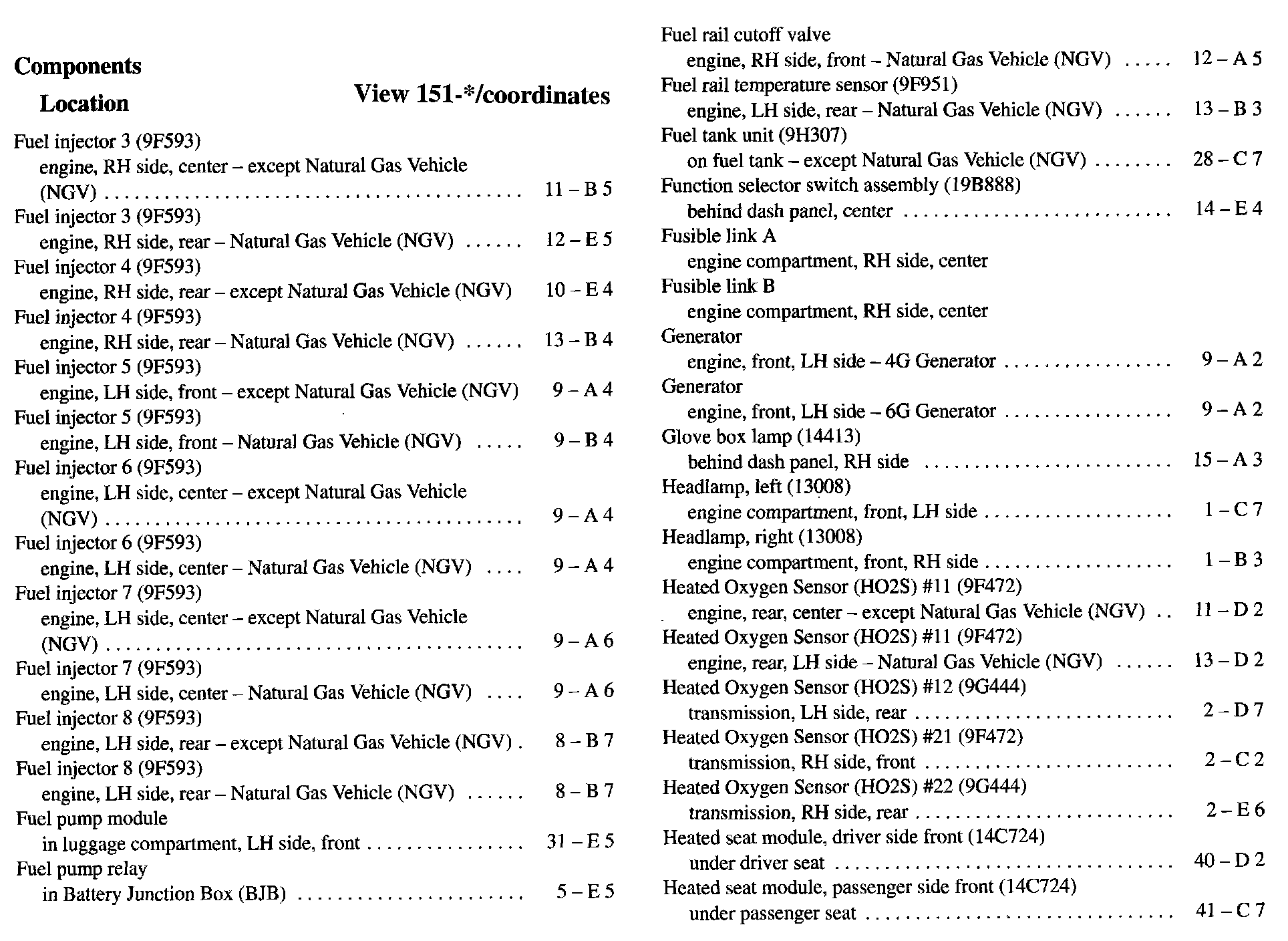

Dr-Fu:

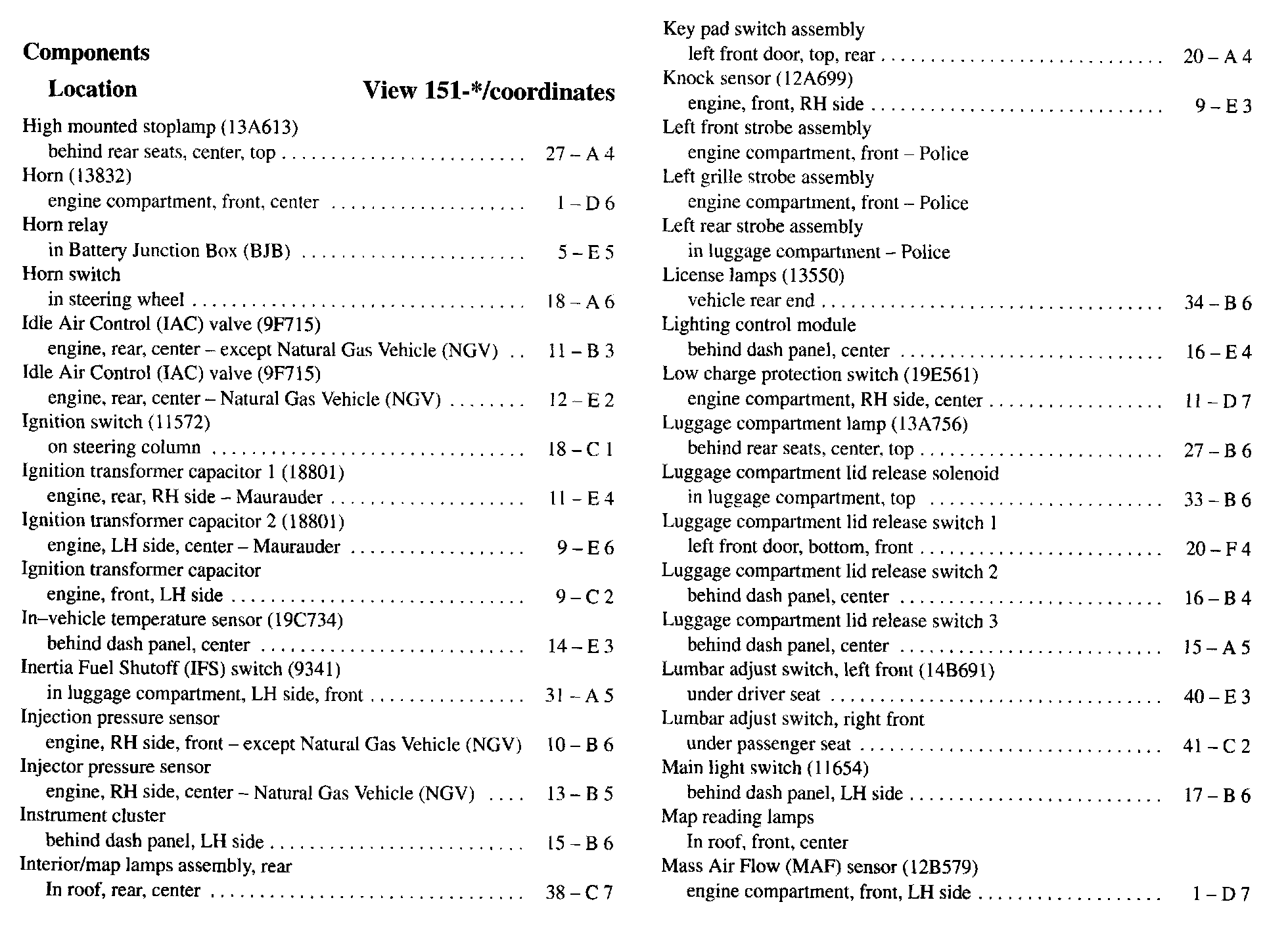

Fu-He:

Hi-Ma:

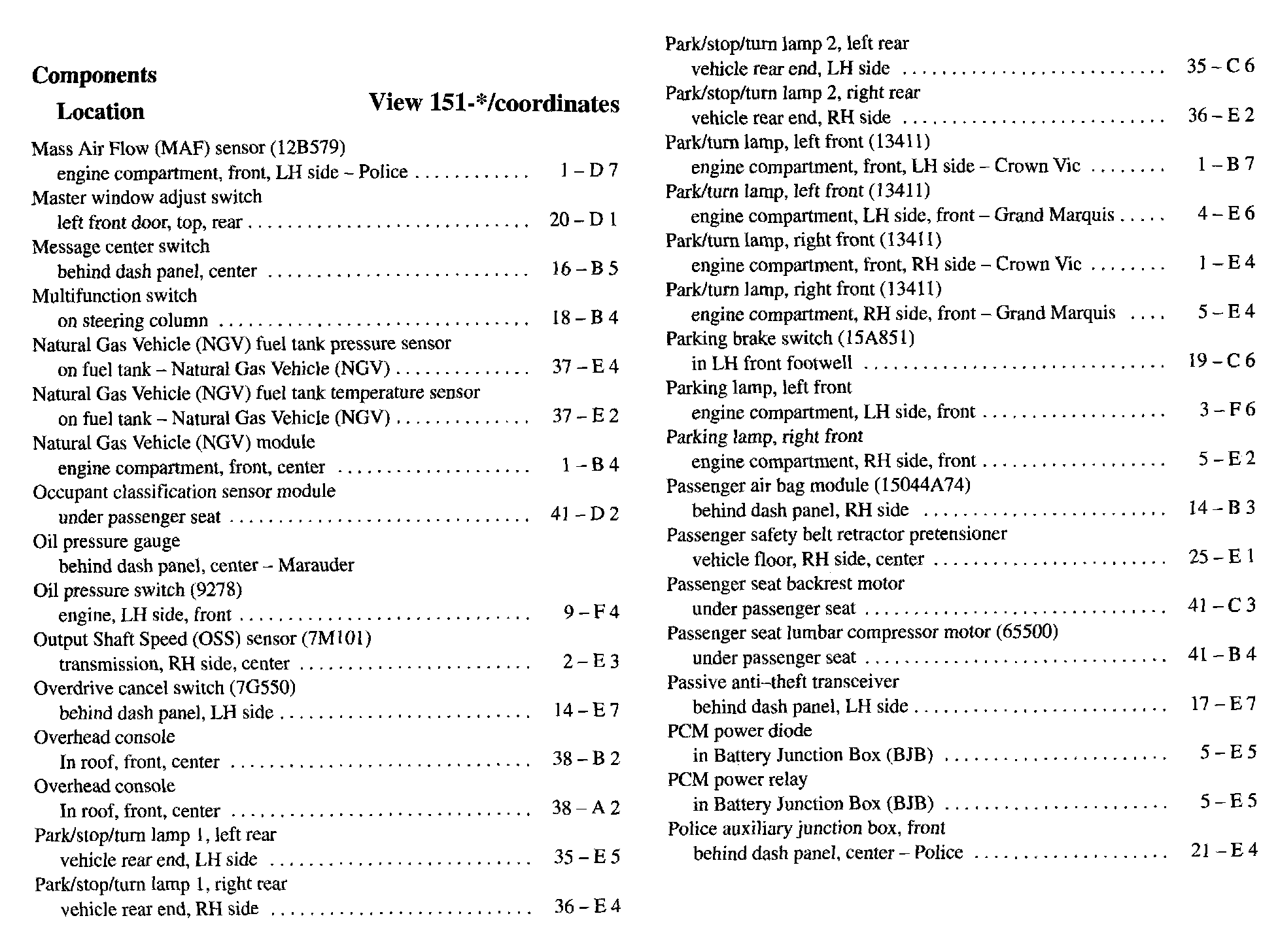

Ma-Po:

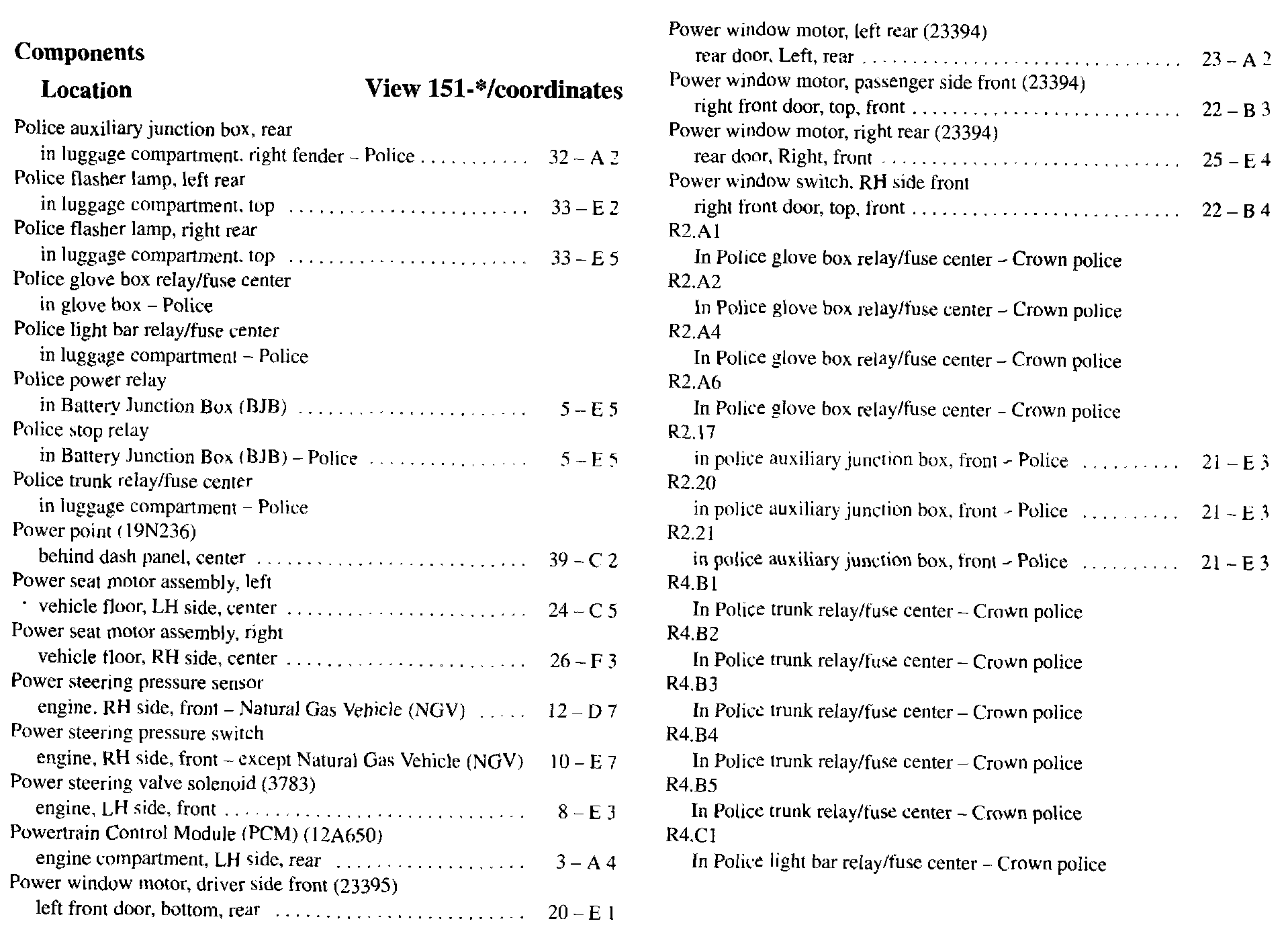

Po-R4:

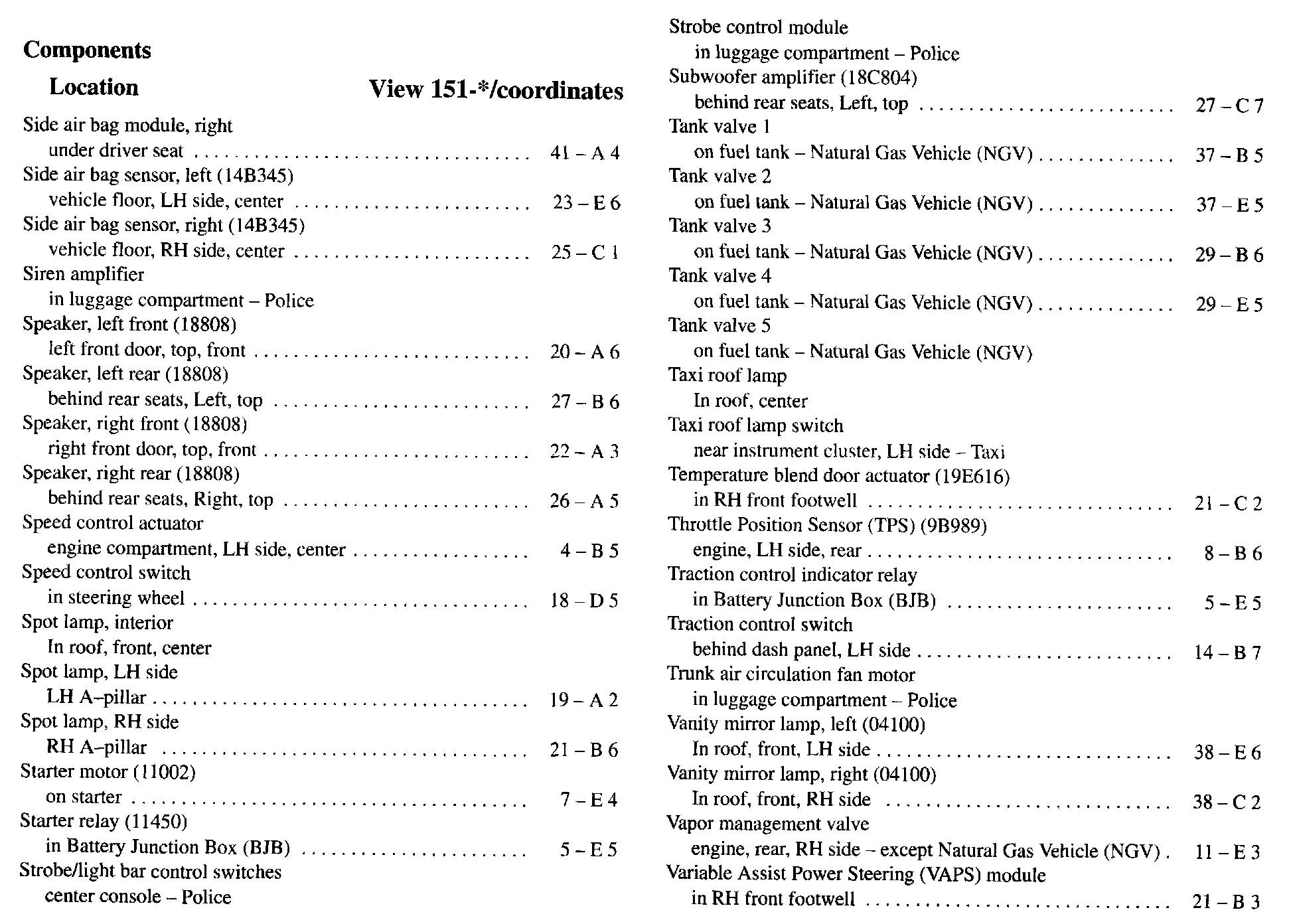

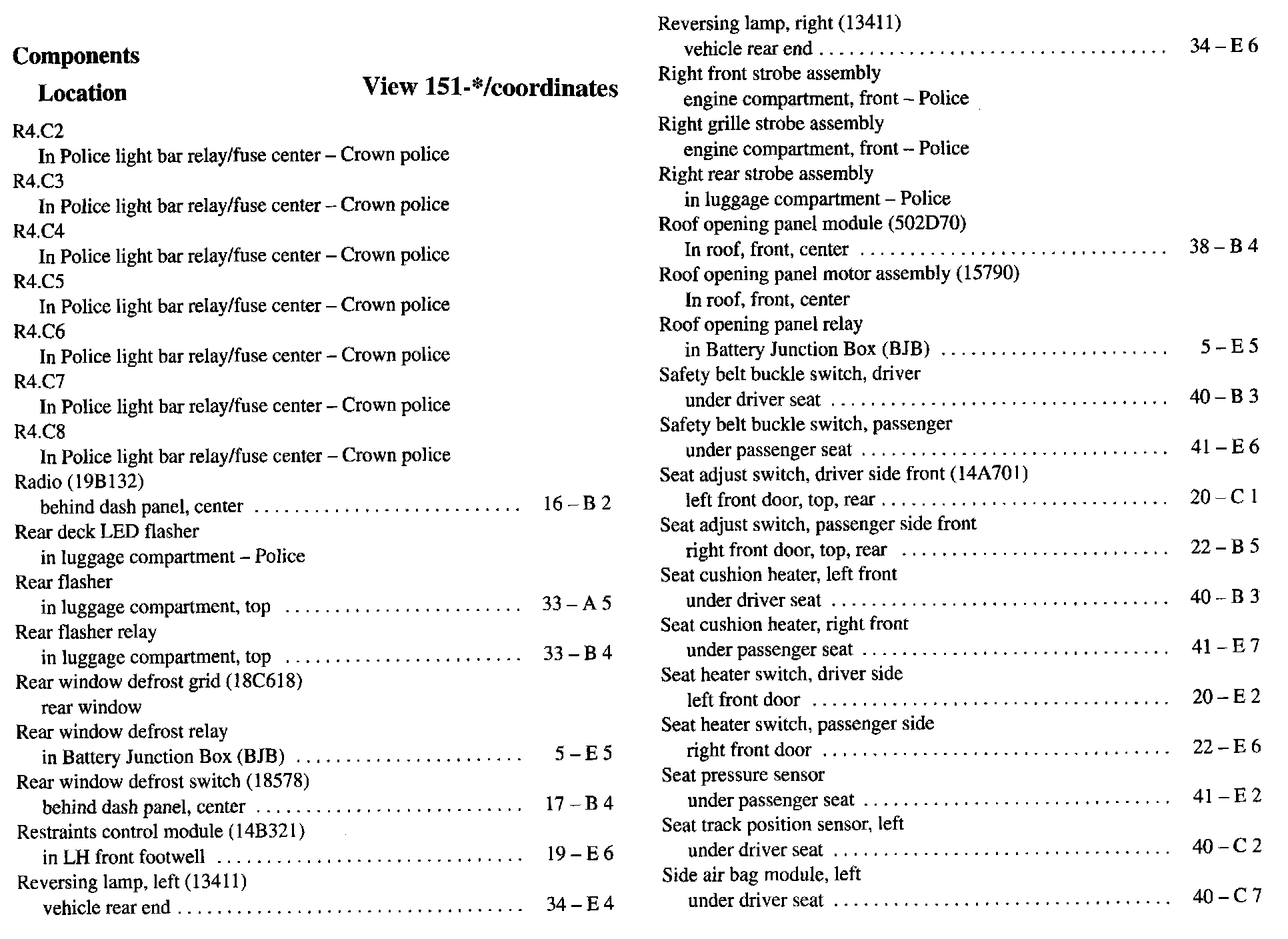

R4-Si:

Si-Va:

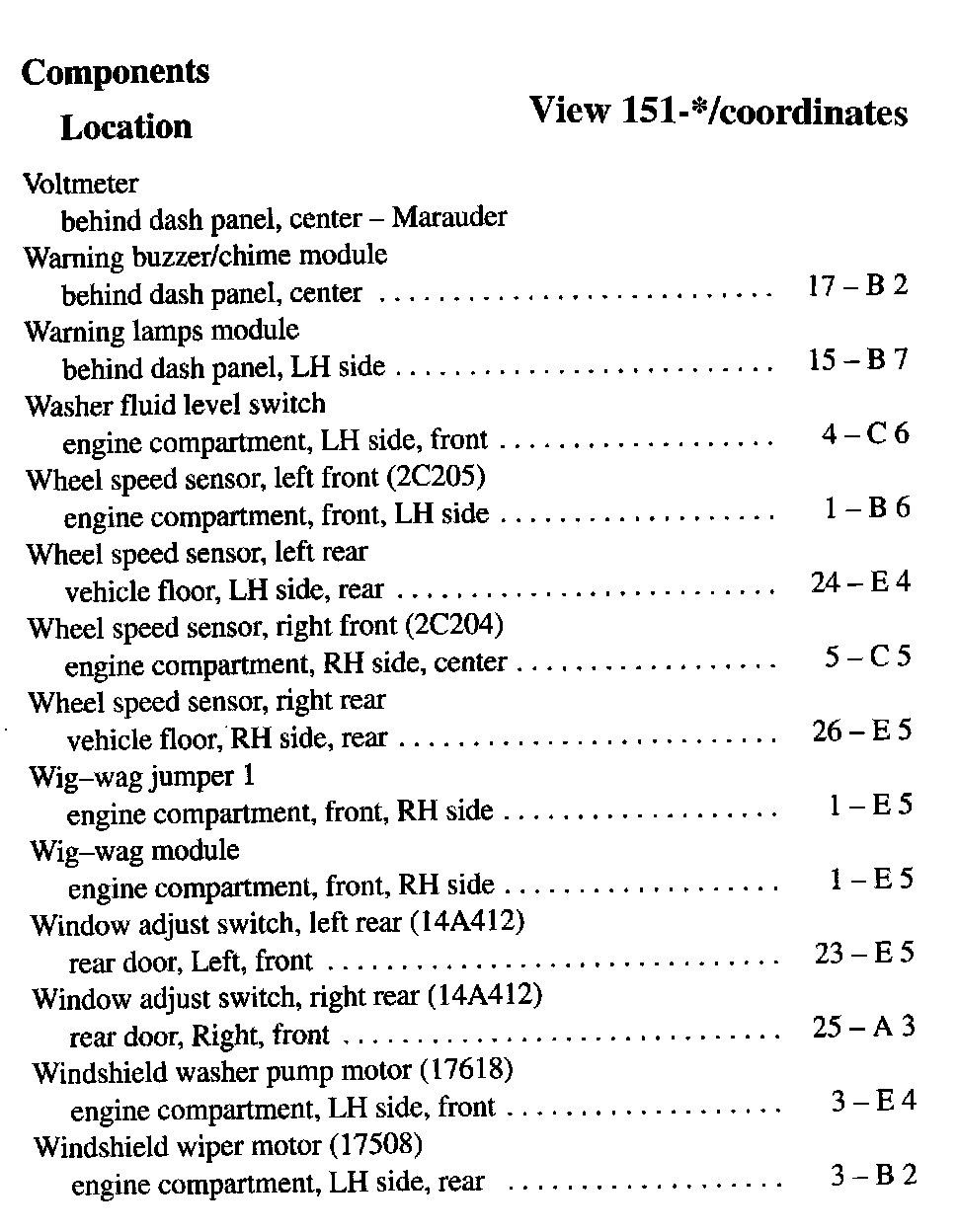

Vo-Wi:
