Test B
Test B
PINPOINT TEST B: ADJUSTABLE BRAKE PEDAL IS INOPERATIVE

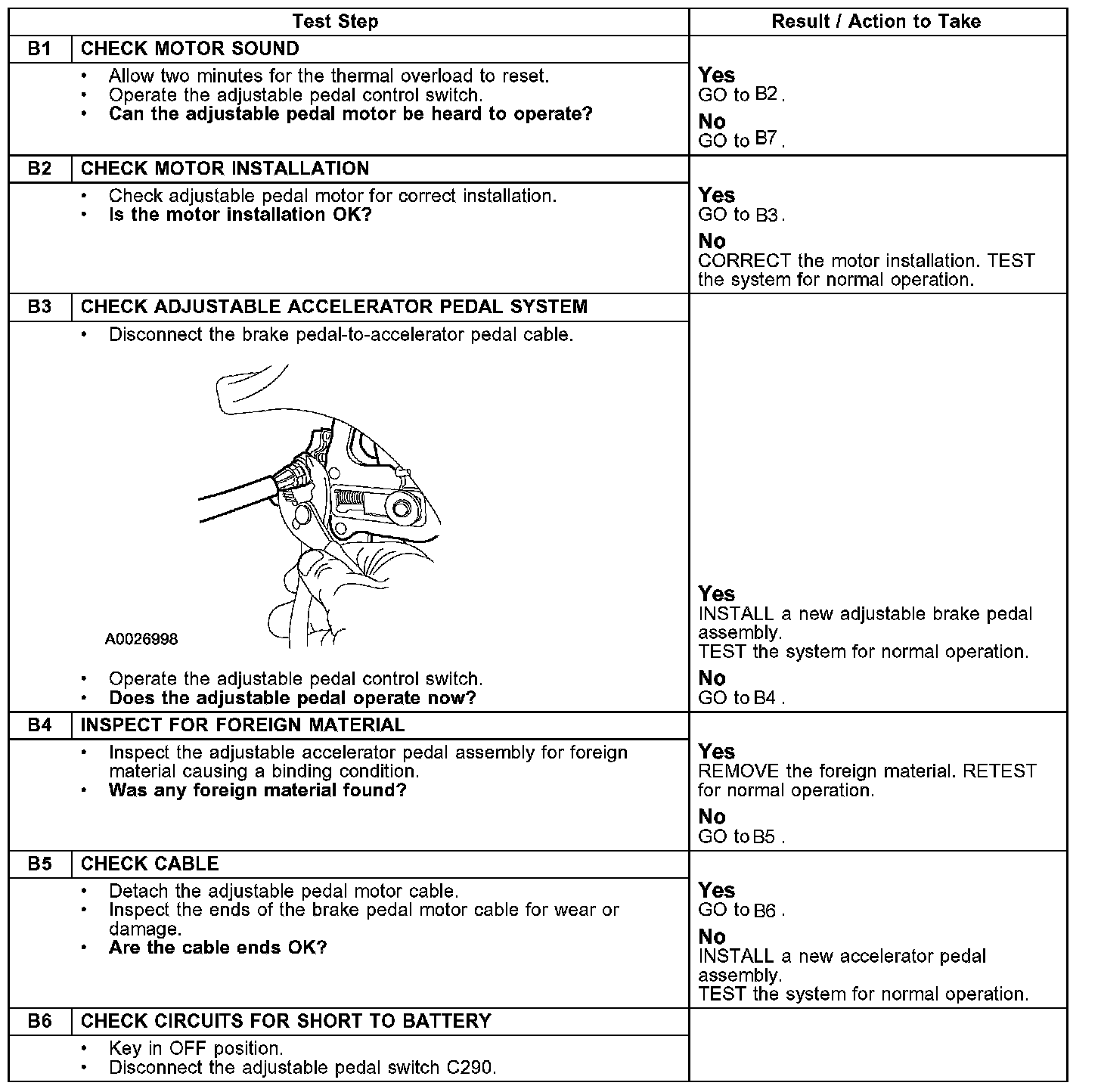

Test B1-B6 Continued:

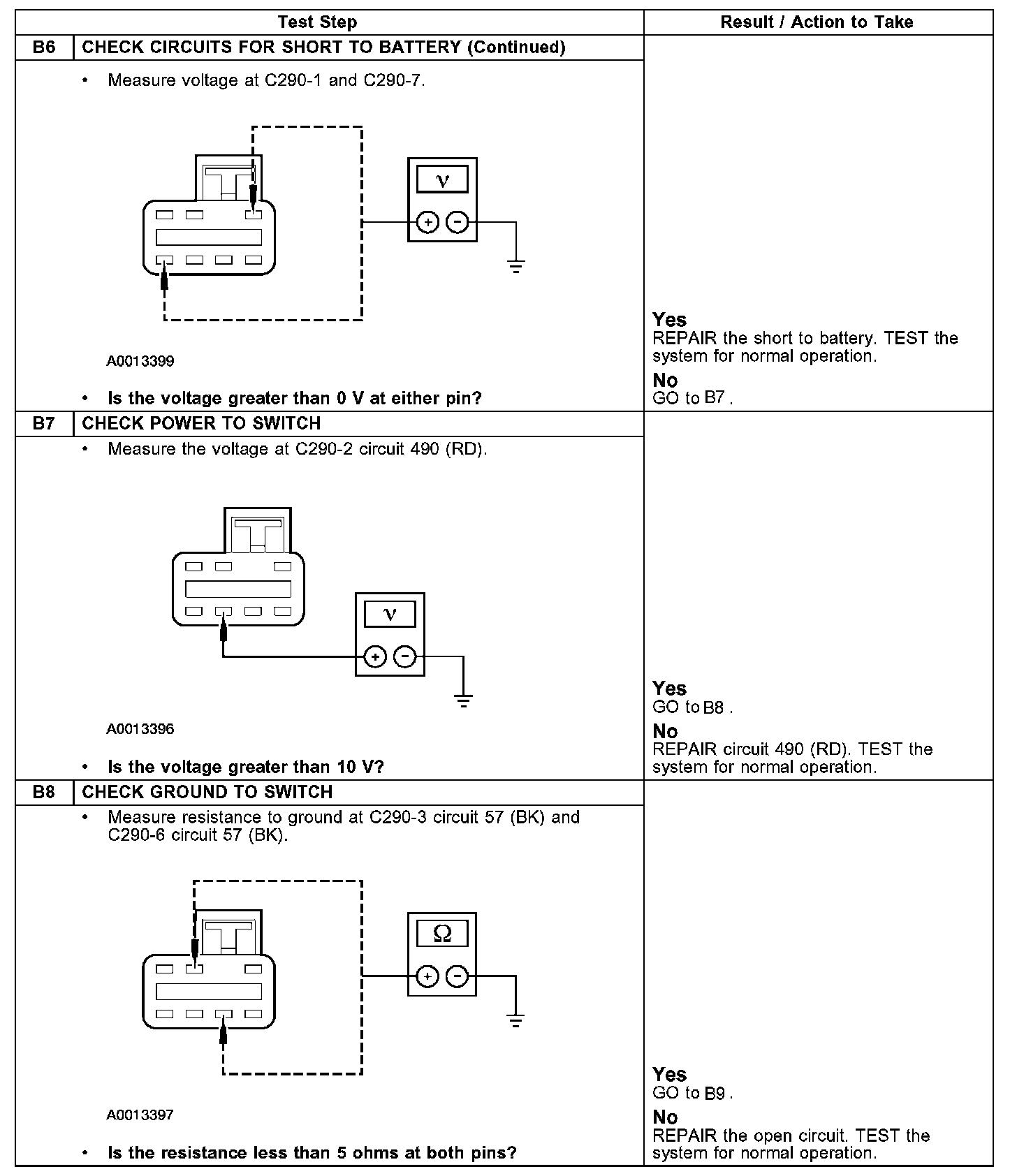

Test B6-B8:

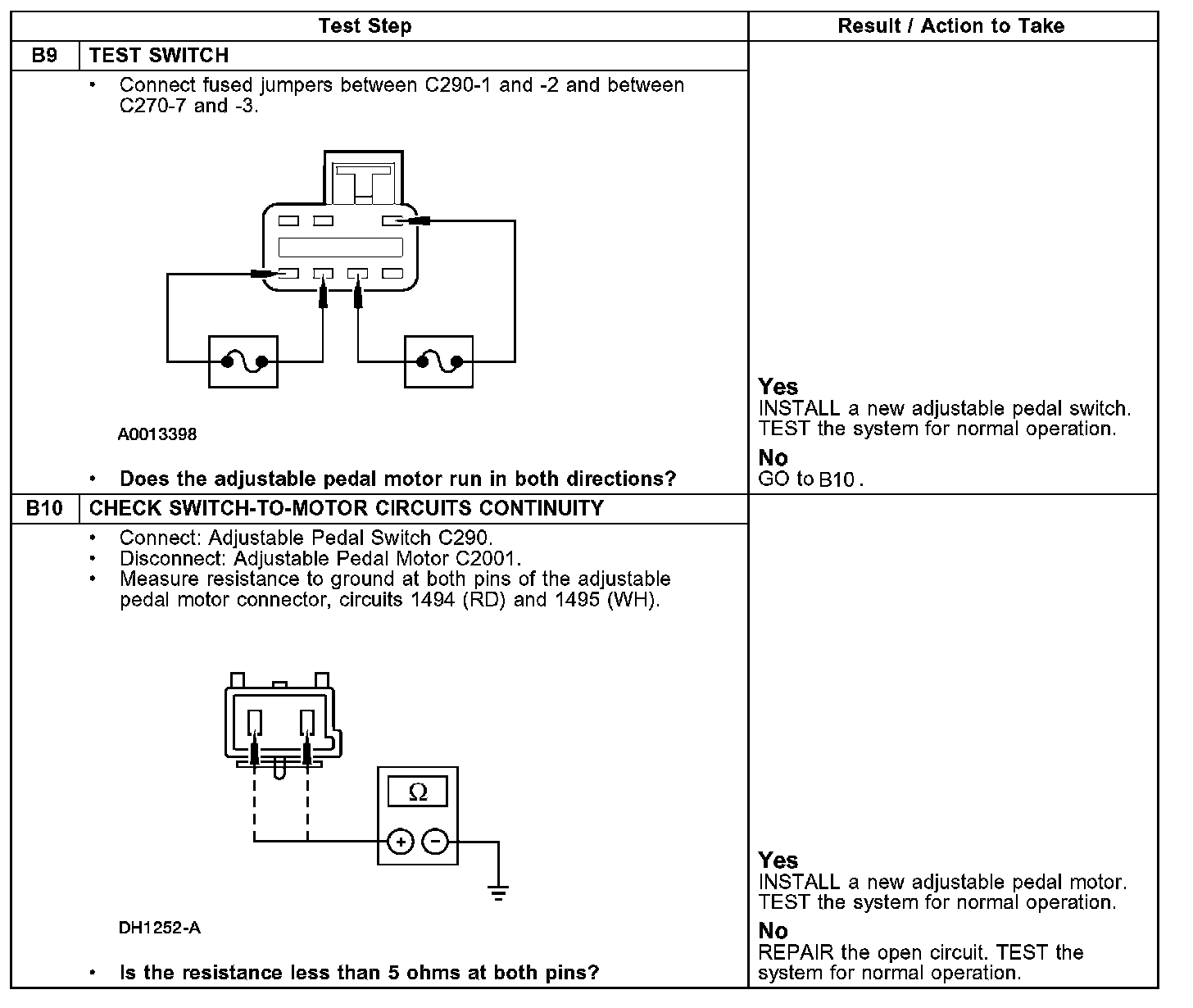

Test B9-10:
