Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

Removal and Installation
1. Disconnect the rear parking brake cable and conduit.
2. Remove the axle shaft.

3. WARNING: To avoid injury when using air tools, do not hold flag nuts with fingers. Failure to follow these instructions may result in personal injury.

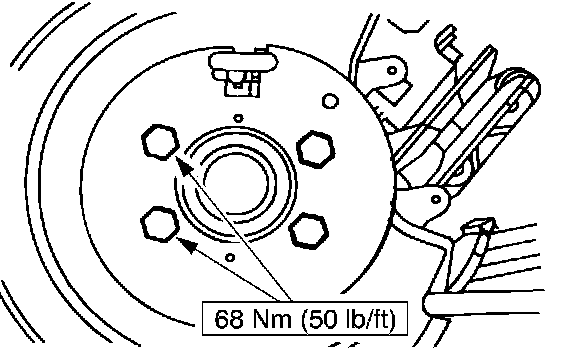

Remove the bolts and the rear wheel disc brake caliper anchor plate.
4. To install, reverse the removal procedure.
