Rear

Brake Pads

Removal and Installation
1. Remove the wheel and tire assembly.

2. CAUTION: Do not allow the caliper to hang from the brake hose. Damage to the hose can result.

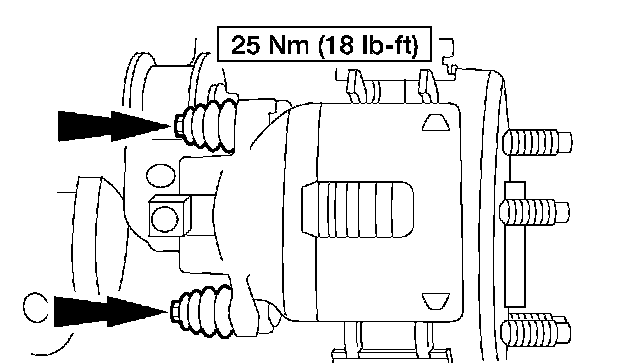

Remove the bolts and lift the caliper off the anchor plate.

3. CAUTION: Do not allow grease, oil, brake fluid or other contaminants to contact the brake pads.

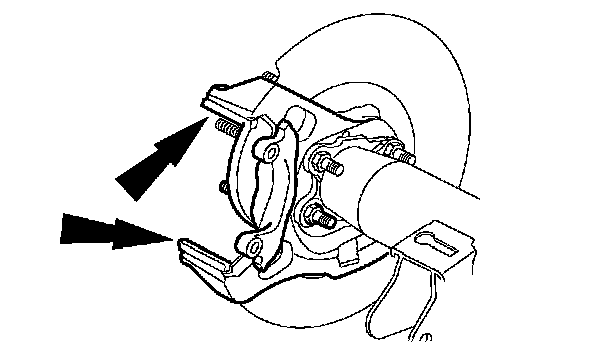

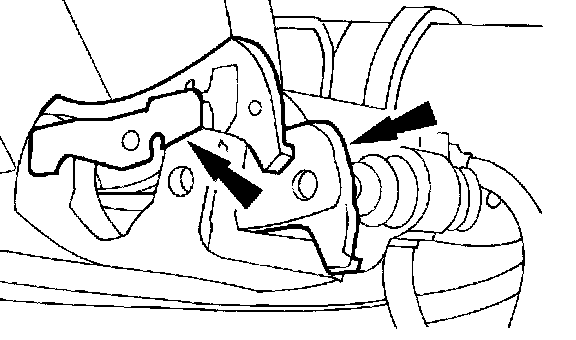

Remove the brake pads by pushing inward and rotating the pad up.

4. NOTE: Use a block of wood or used pad to protect the piston and boots.

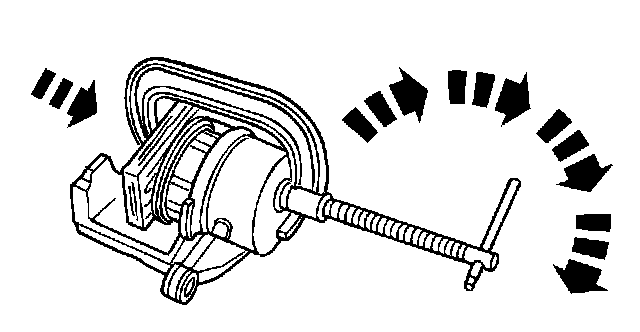

Retract the caliper piston into the rear disc brake caliper.





5. To install, reverse the removal procedure.
^ Make sure the slippers are clean and in good condition.
^ Verify correct brake operation.
