PINPOINT TEST L: THE PASSENGER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN HIGH

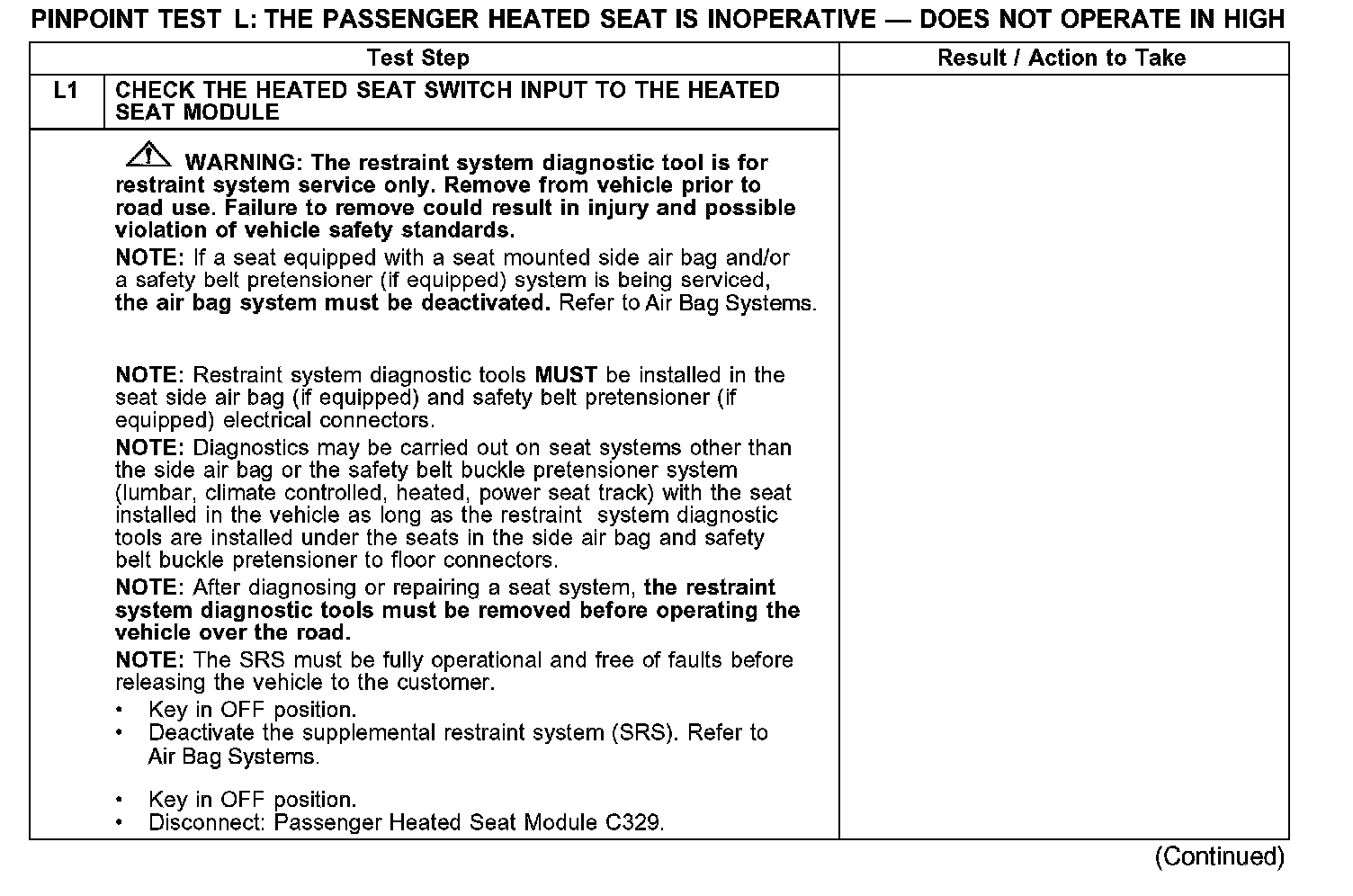

Test L1:

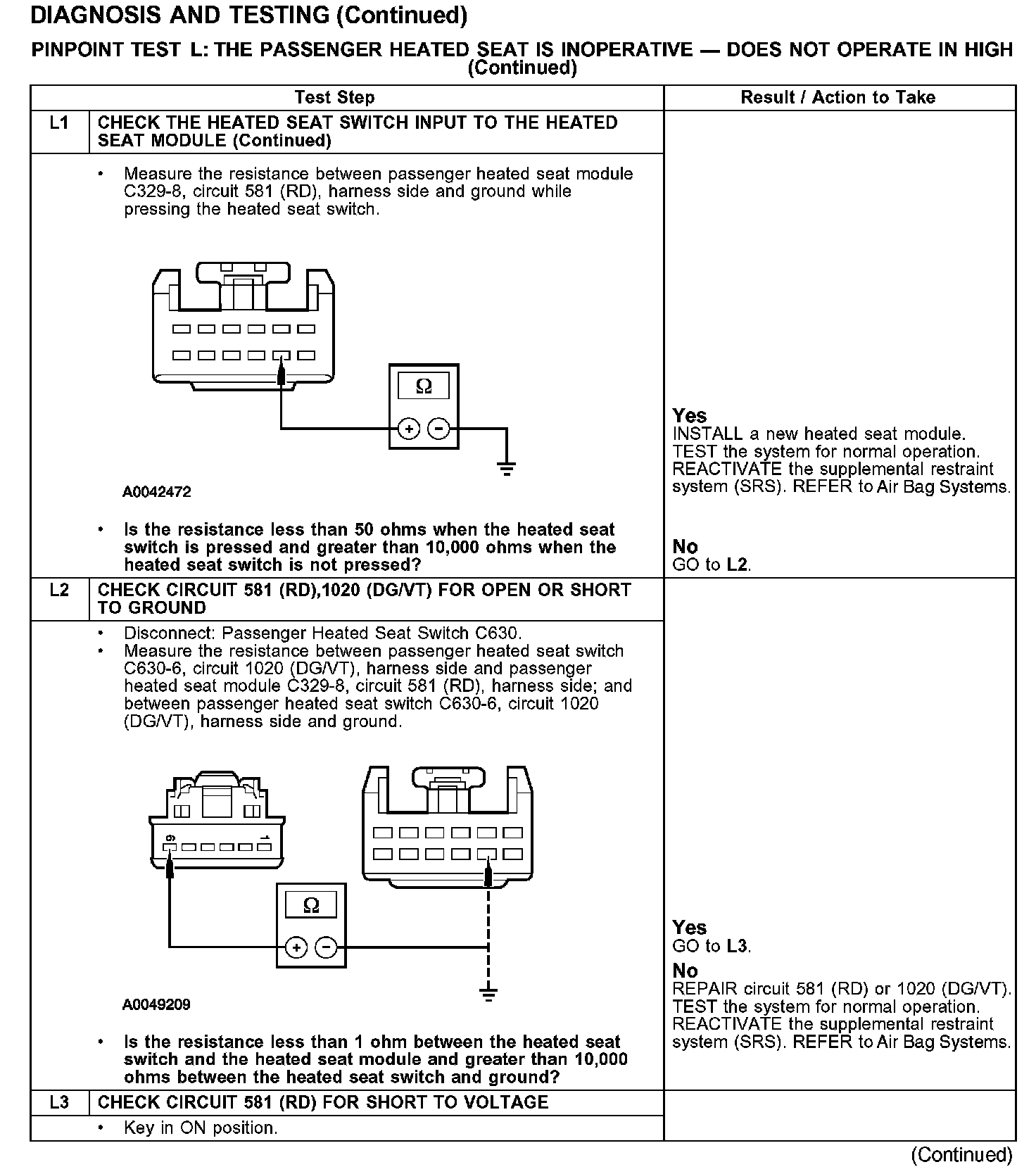

Test L1-L3:

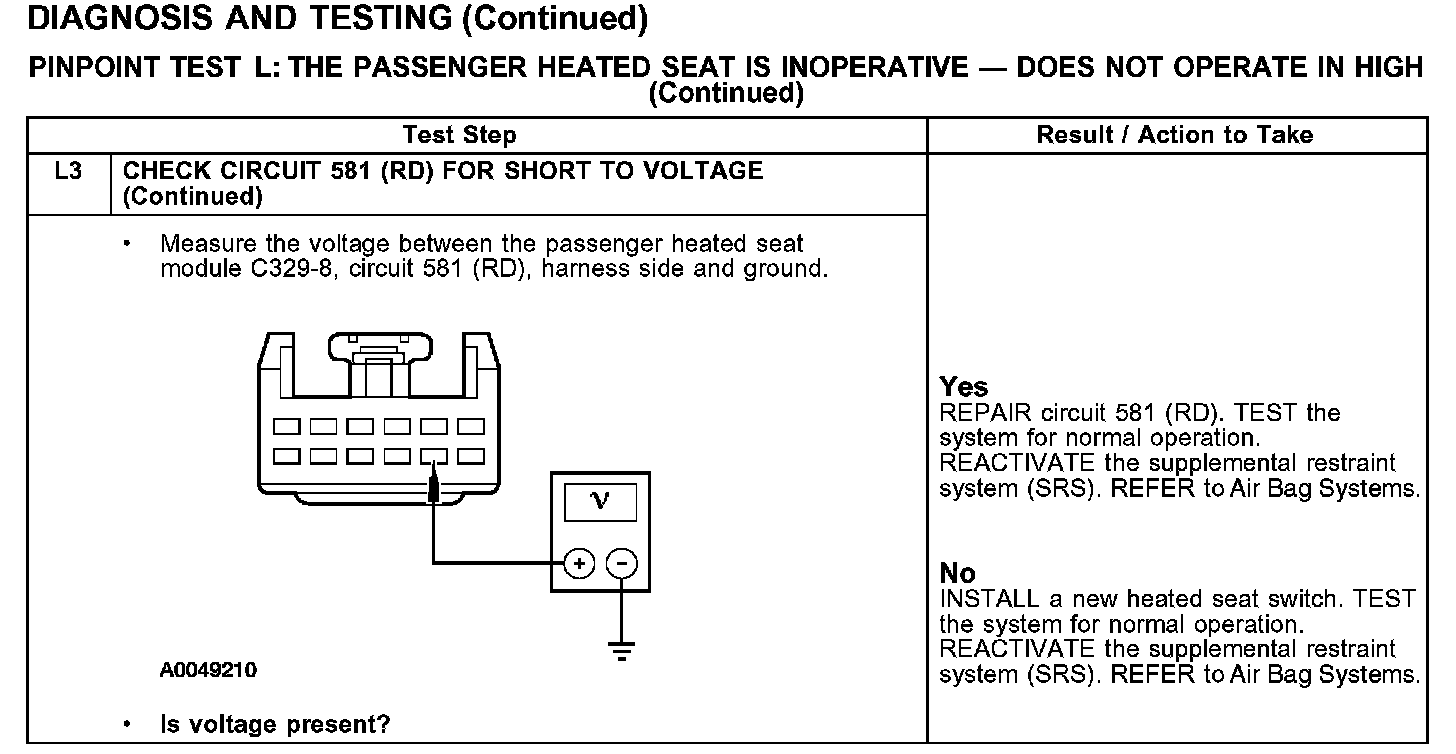

Test L3 Continued:
