Home >> Mercury >> 2004 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test I

Test I

PINPOINT TEST I: THE PASSENGER HEATED SEAT IS INOPERATIVE

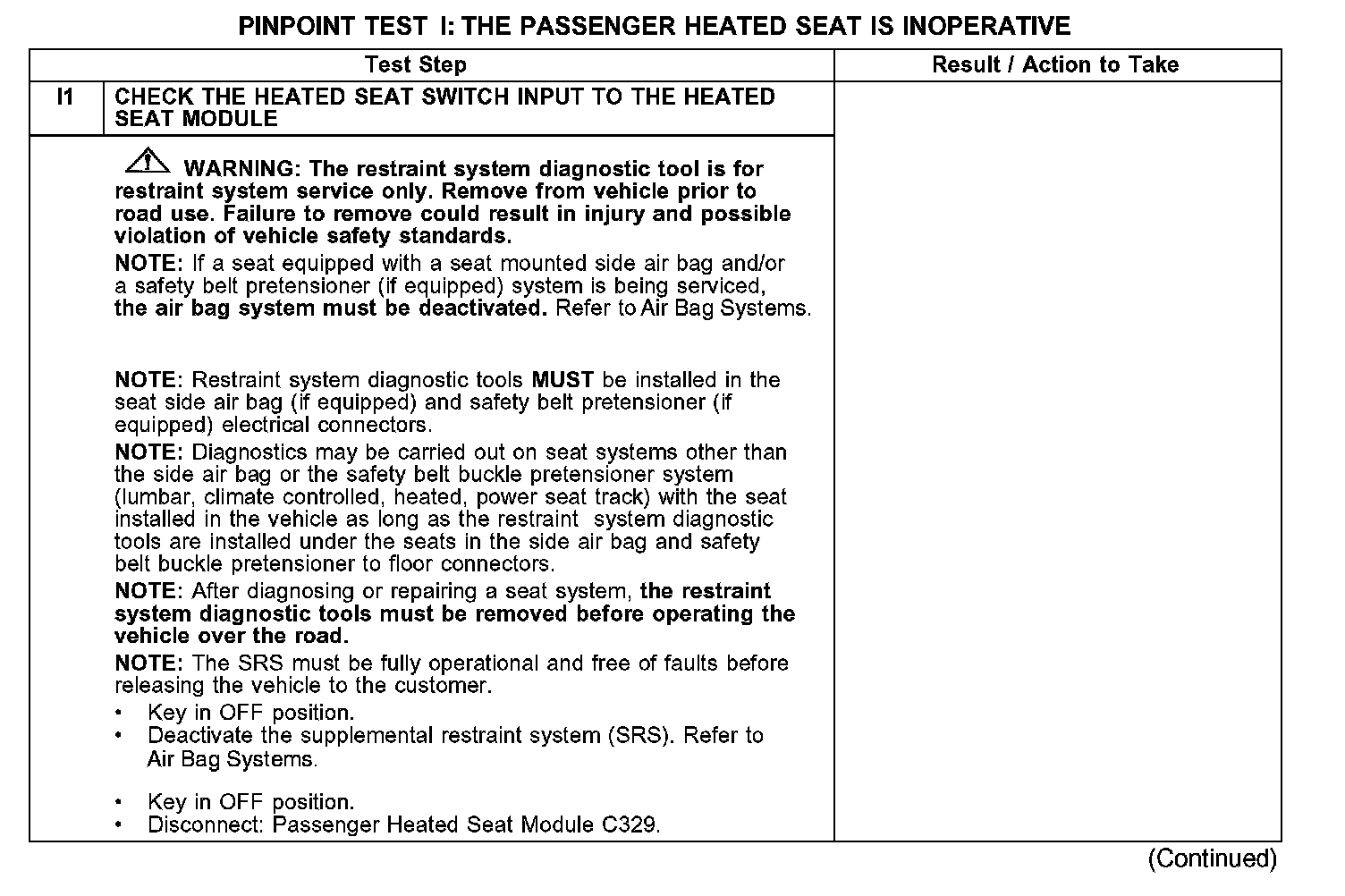

Test I1:






Test I1-I2:

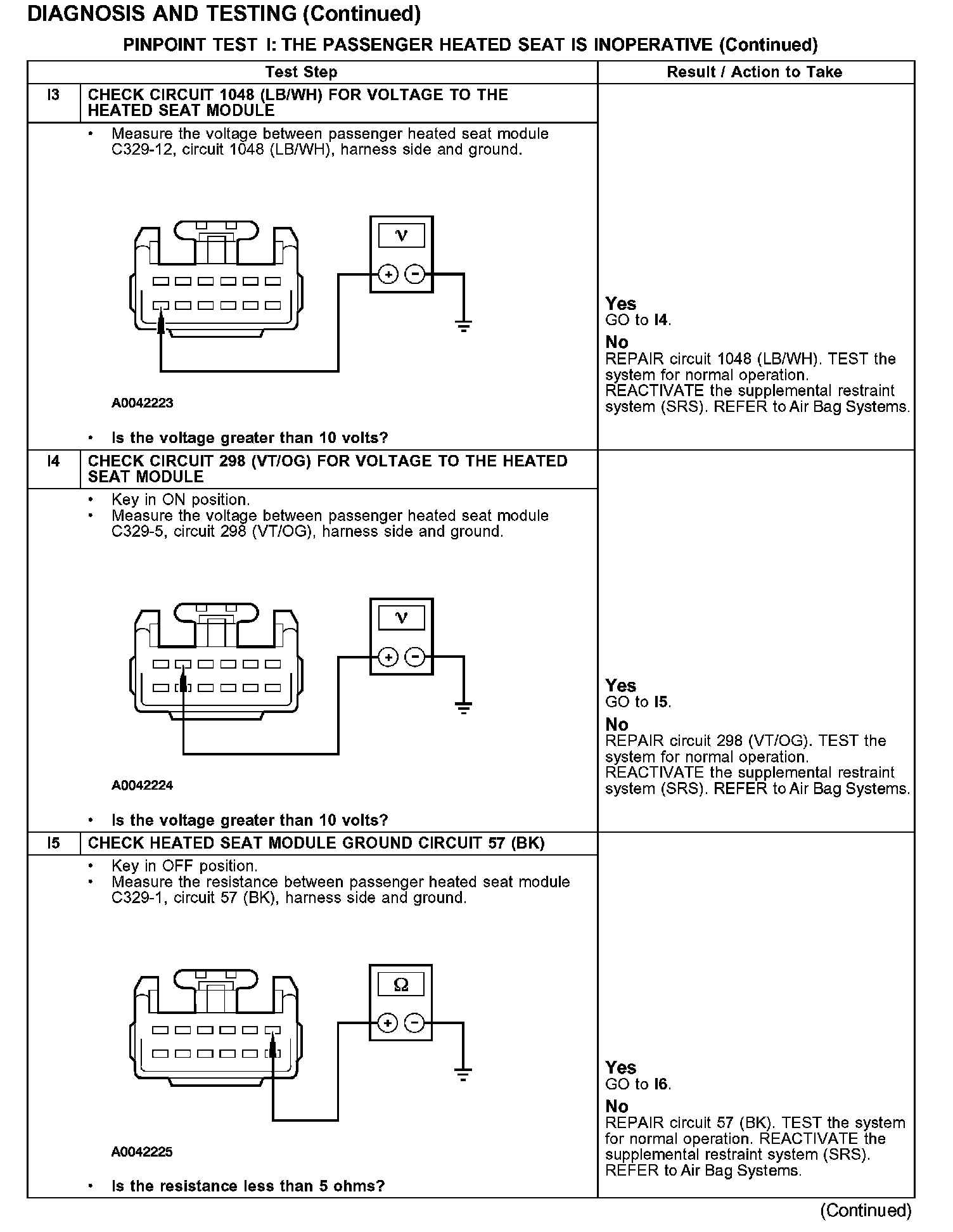

Test I3-I5:

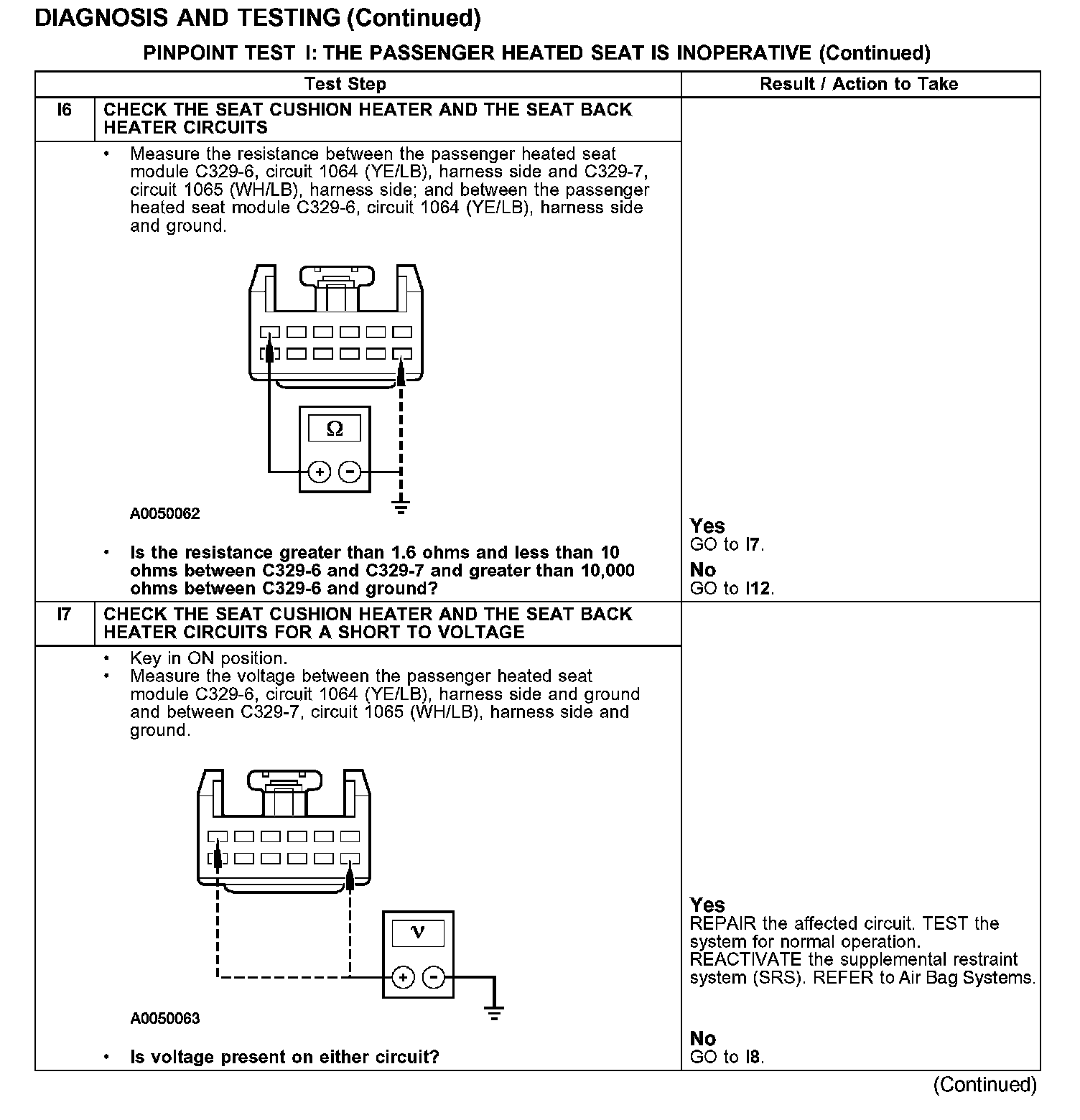

Test I6-I7:

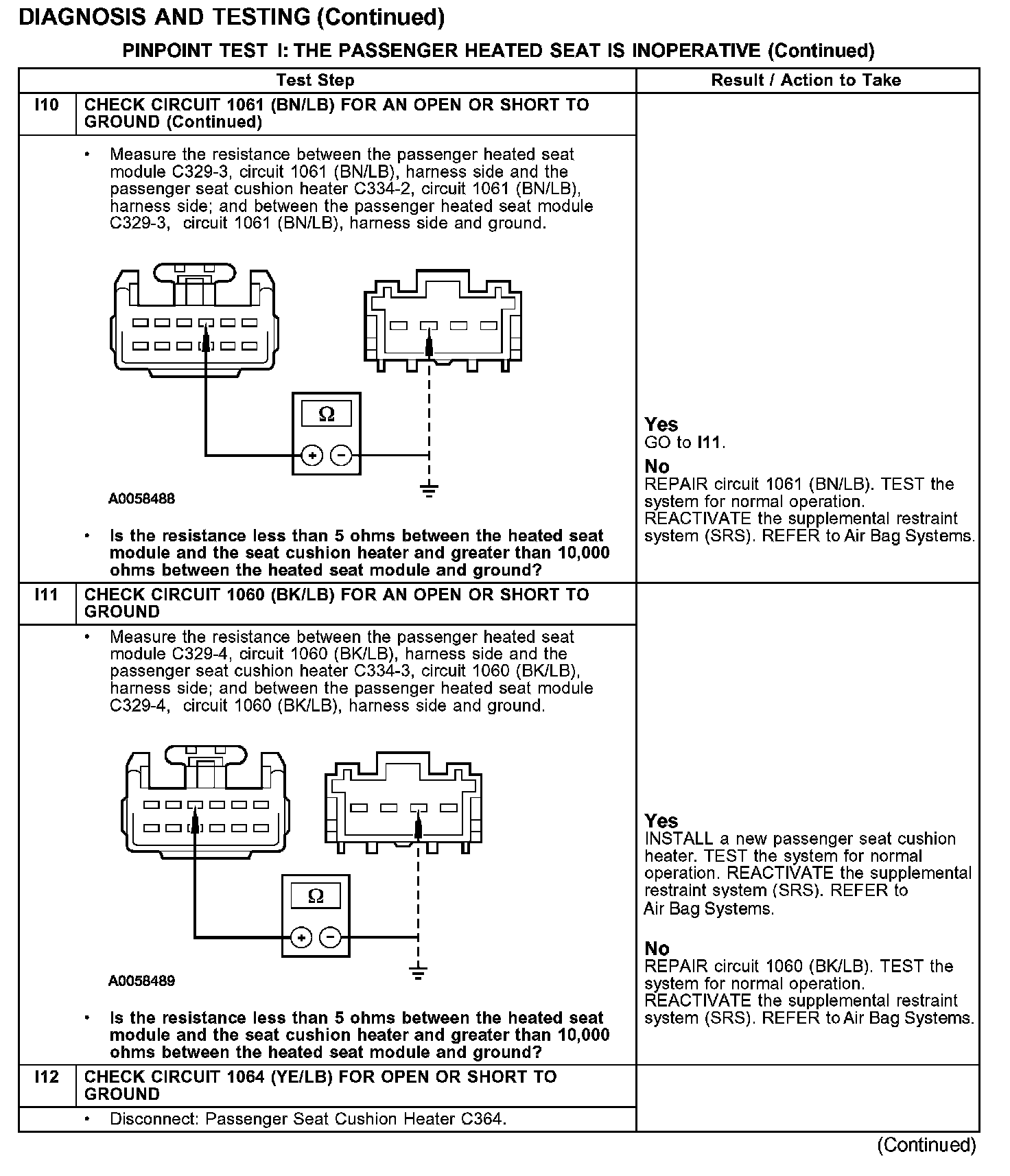

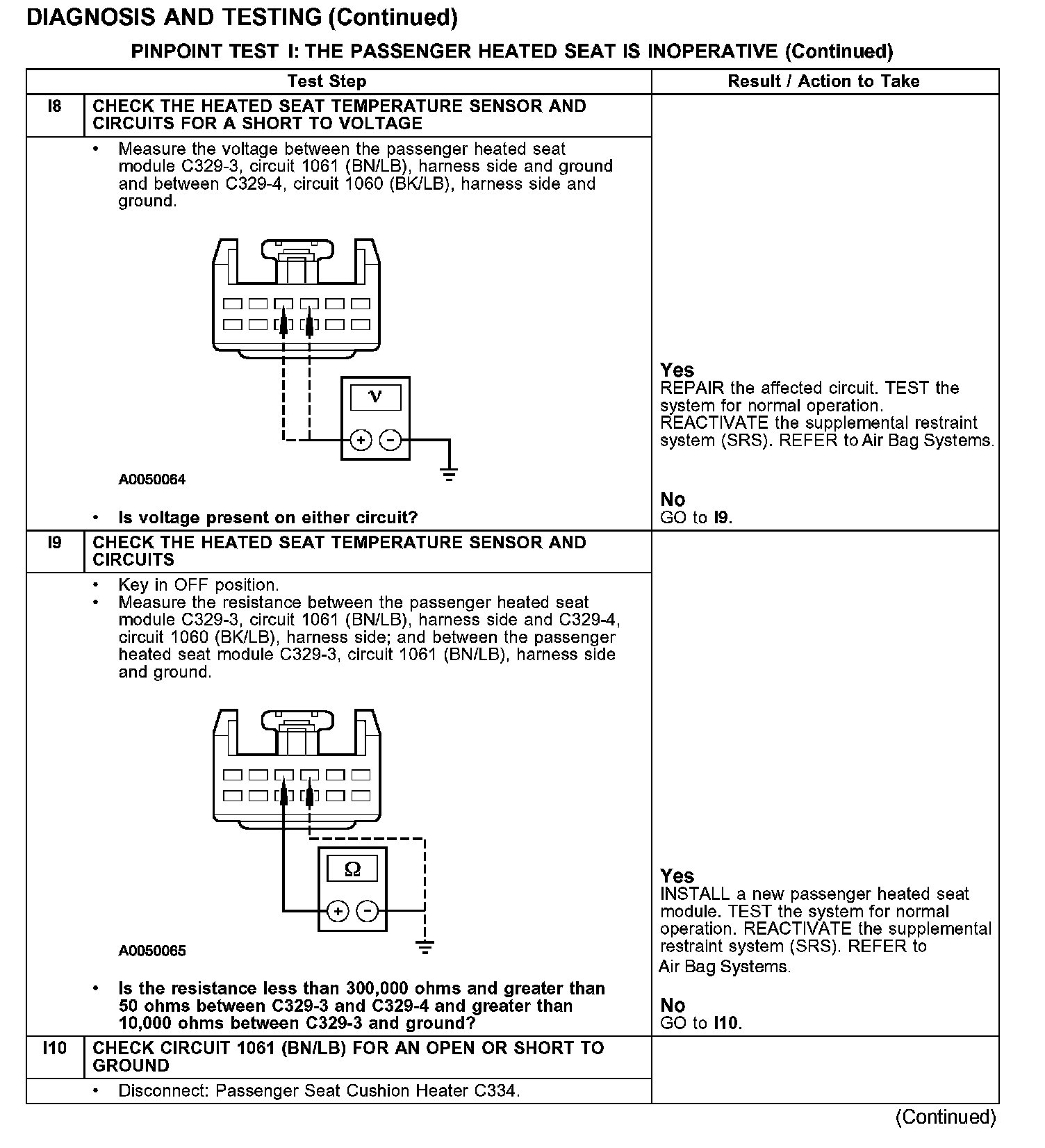

Test I8-I10:






Test I10-I12:

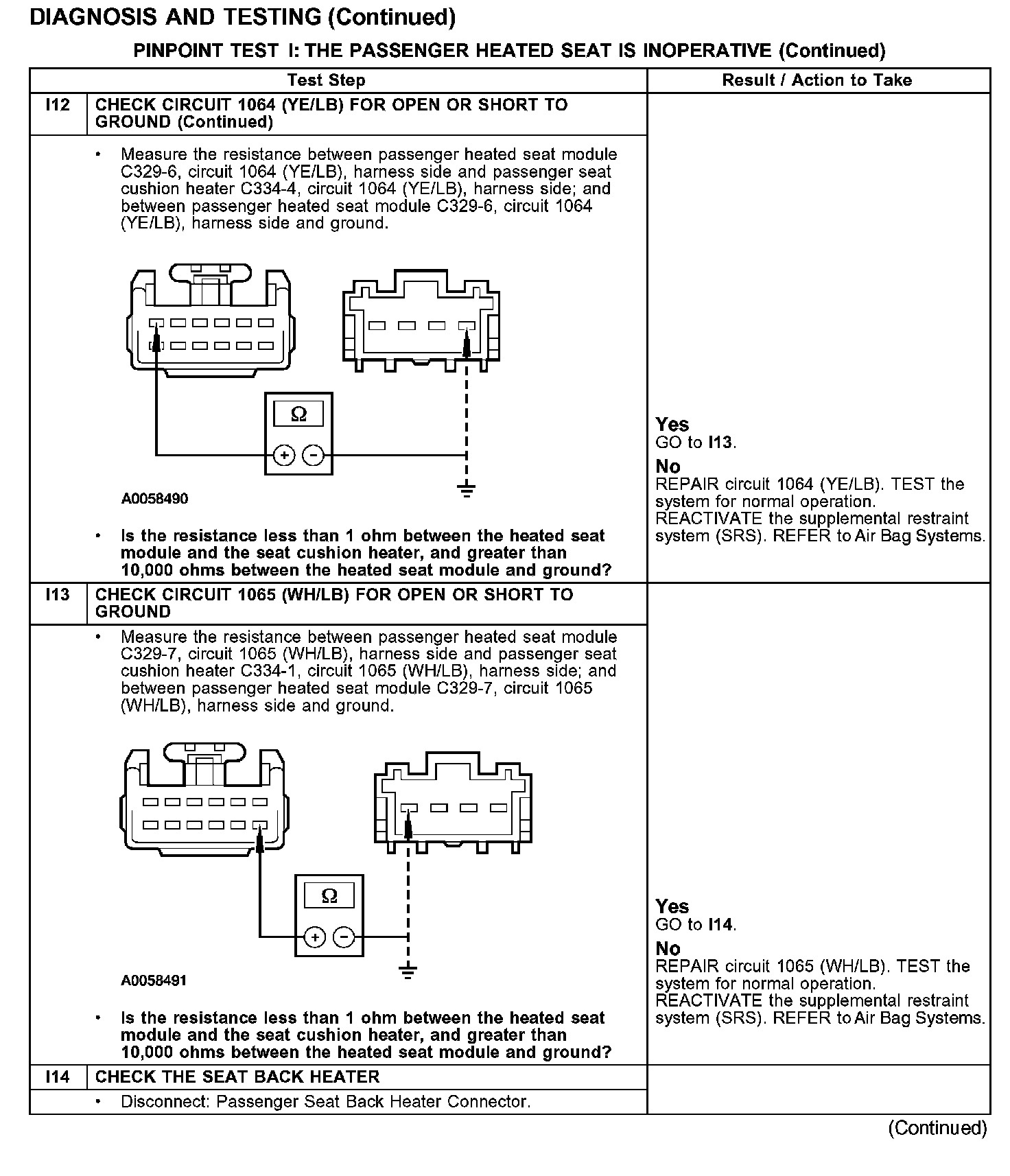

Test I12-I14:

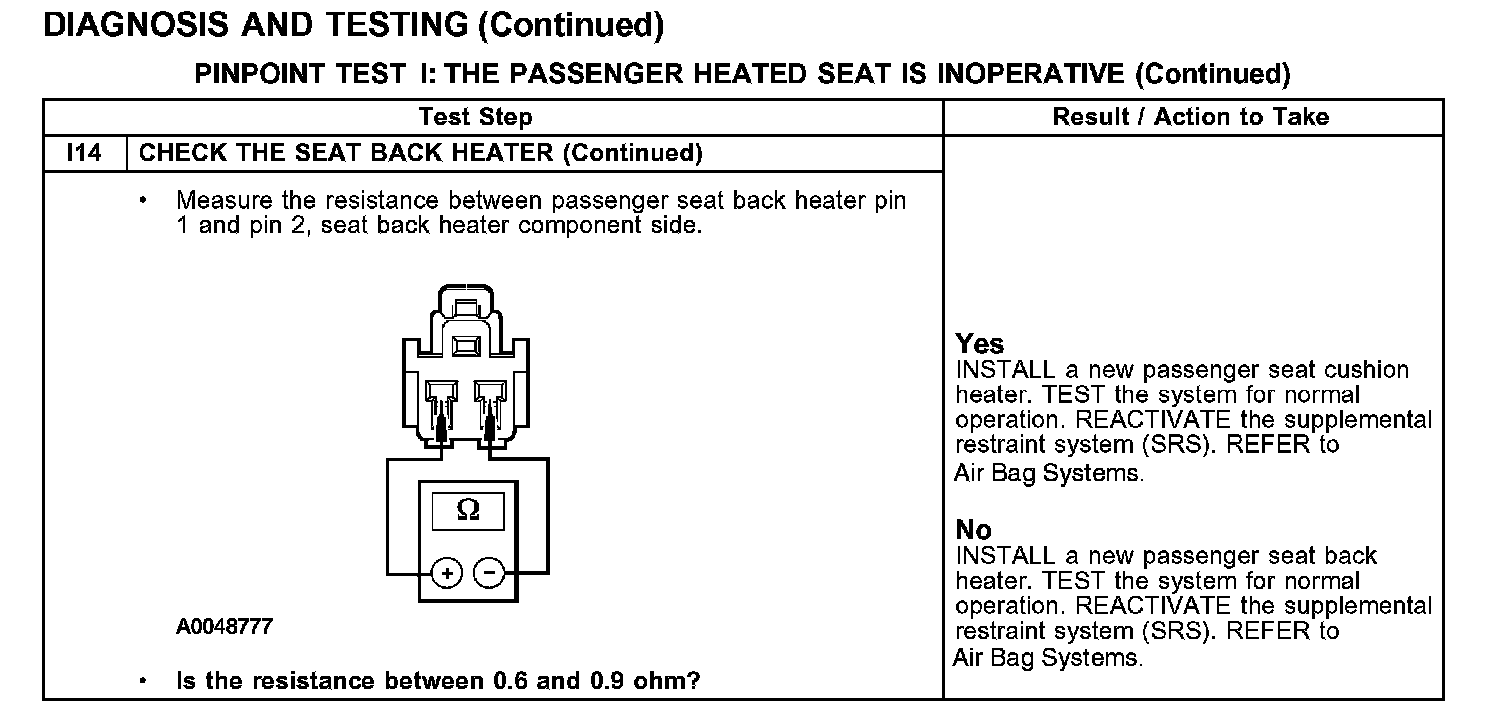

Test I14 Continued:
