PINPOINT TEST H: THE DRIVER HEATED SEAT IS INOPERATIVE

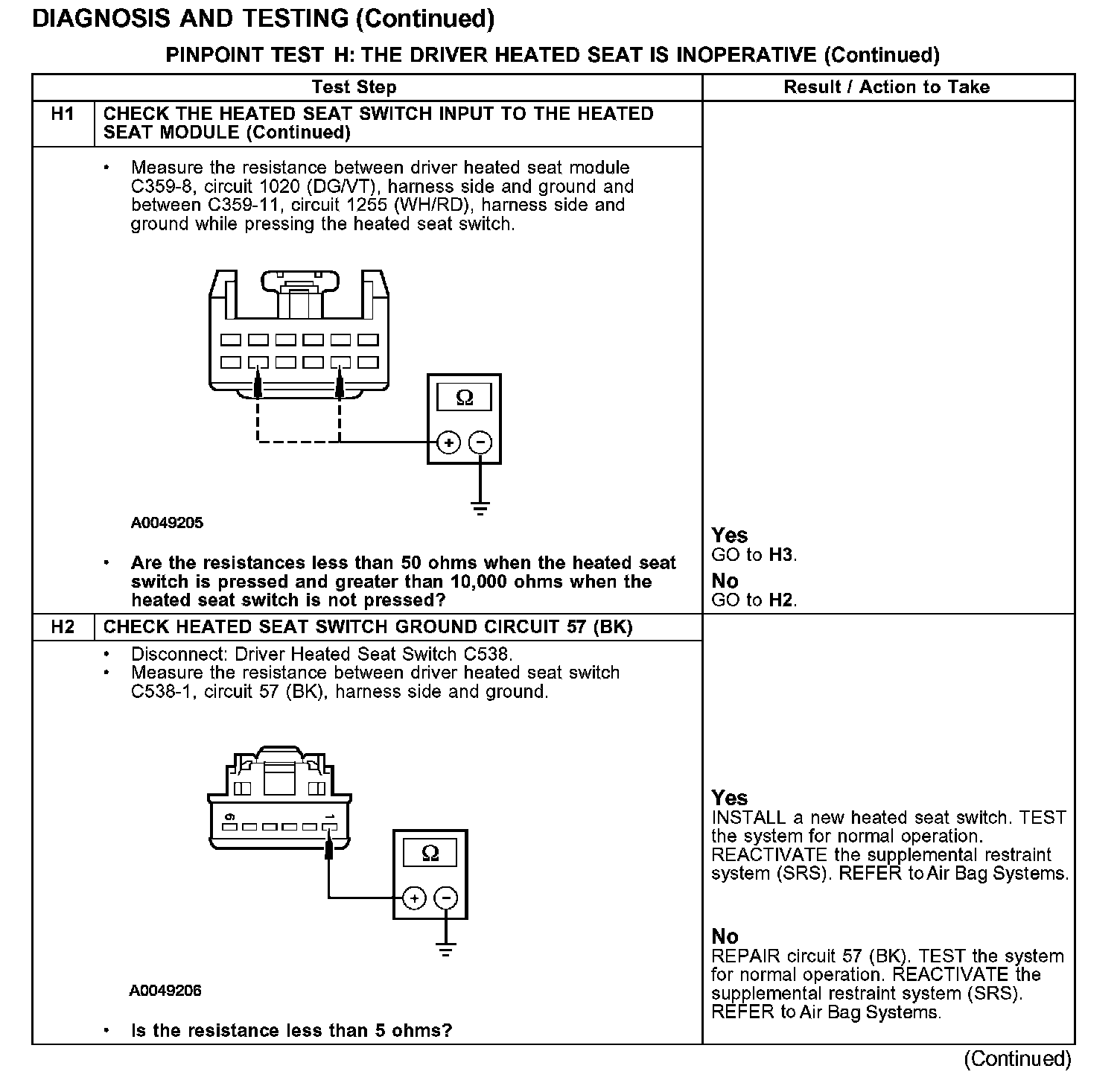

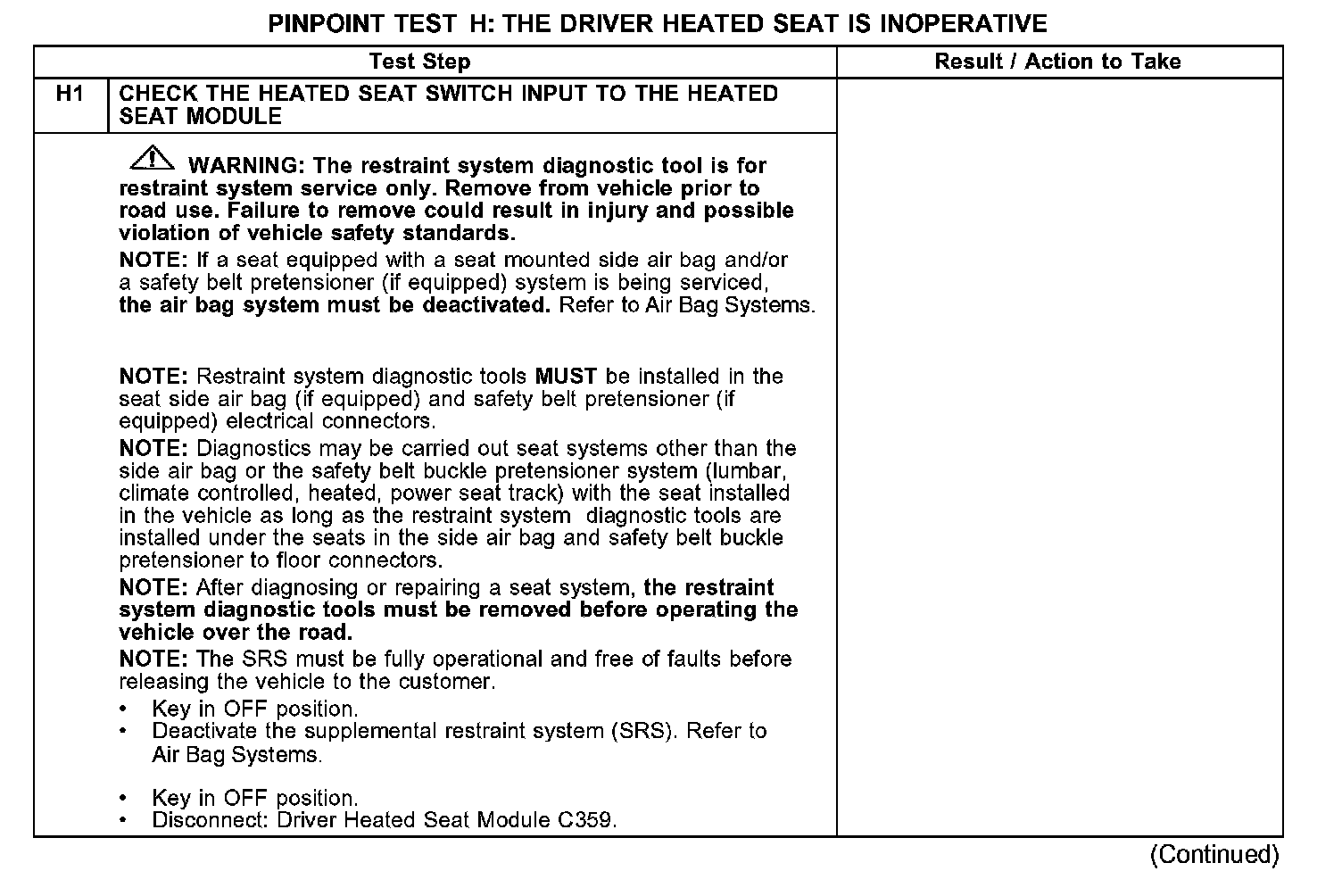

Test H1:
Test H1-H2:

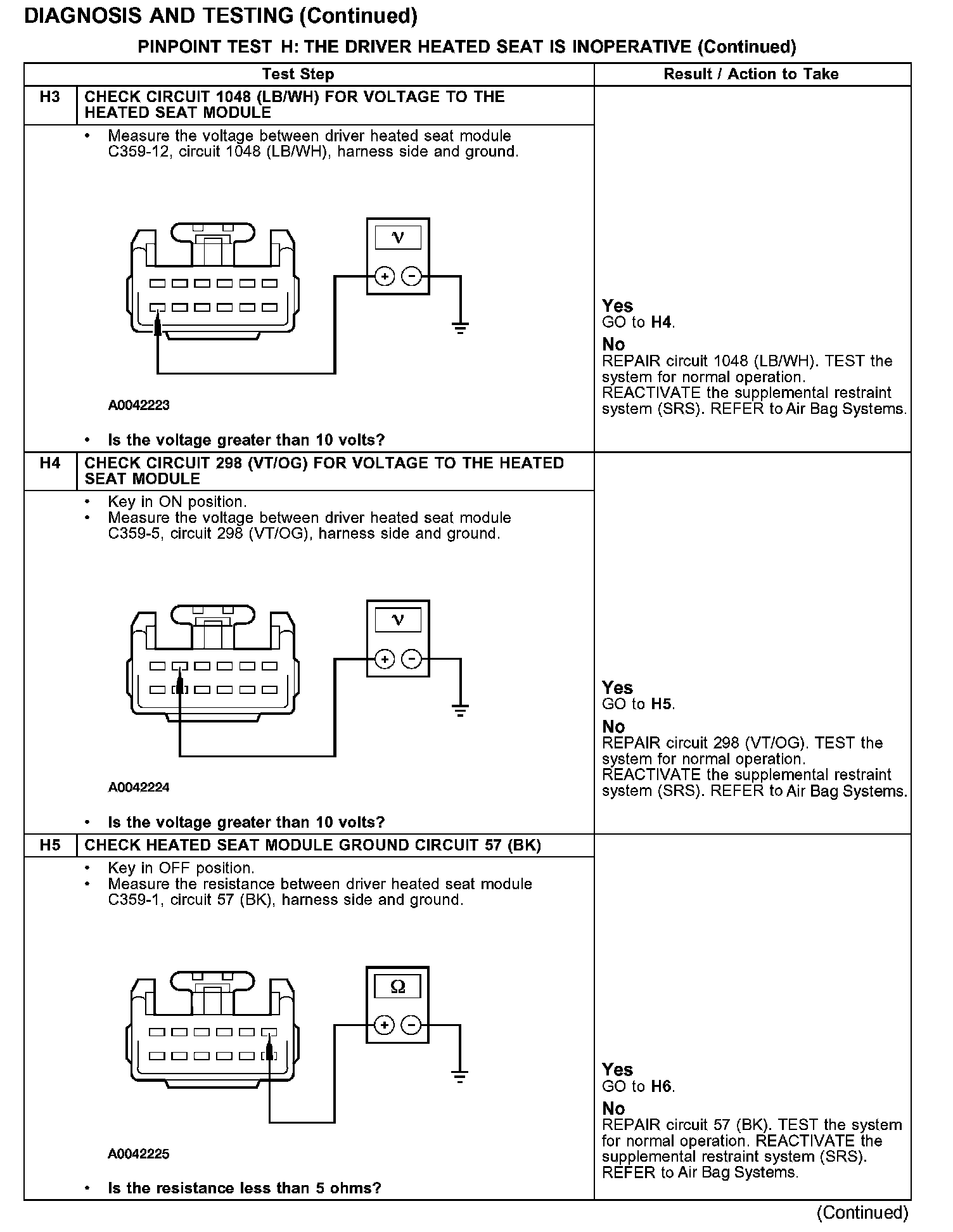

Test H3-H5:
Test H6-H7:

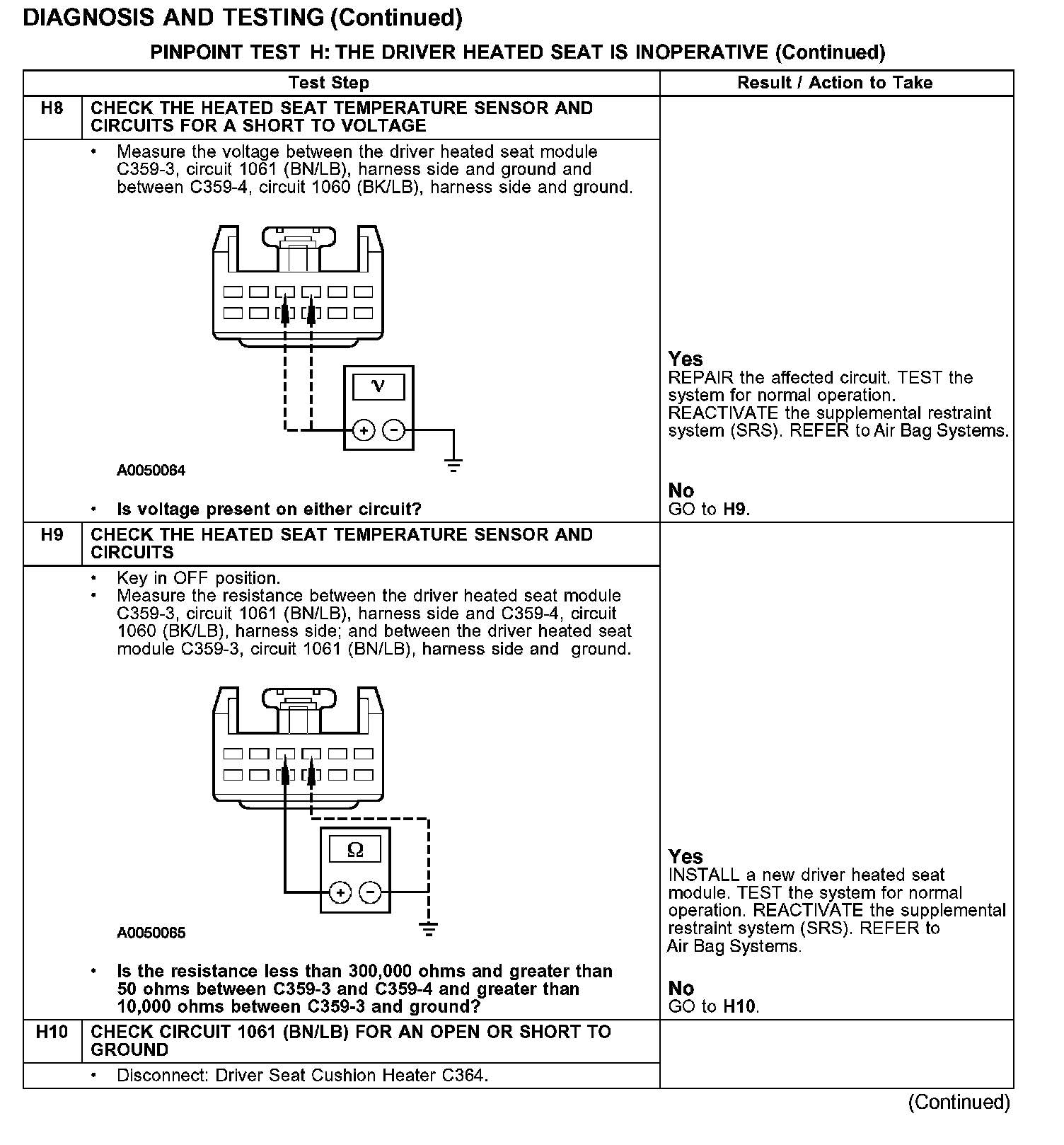

Test H8-H10:

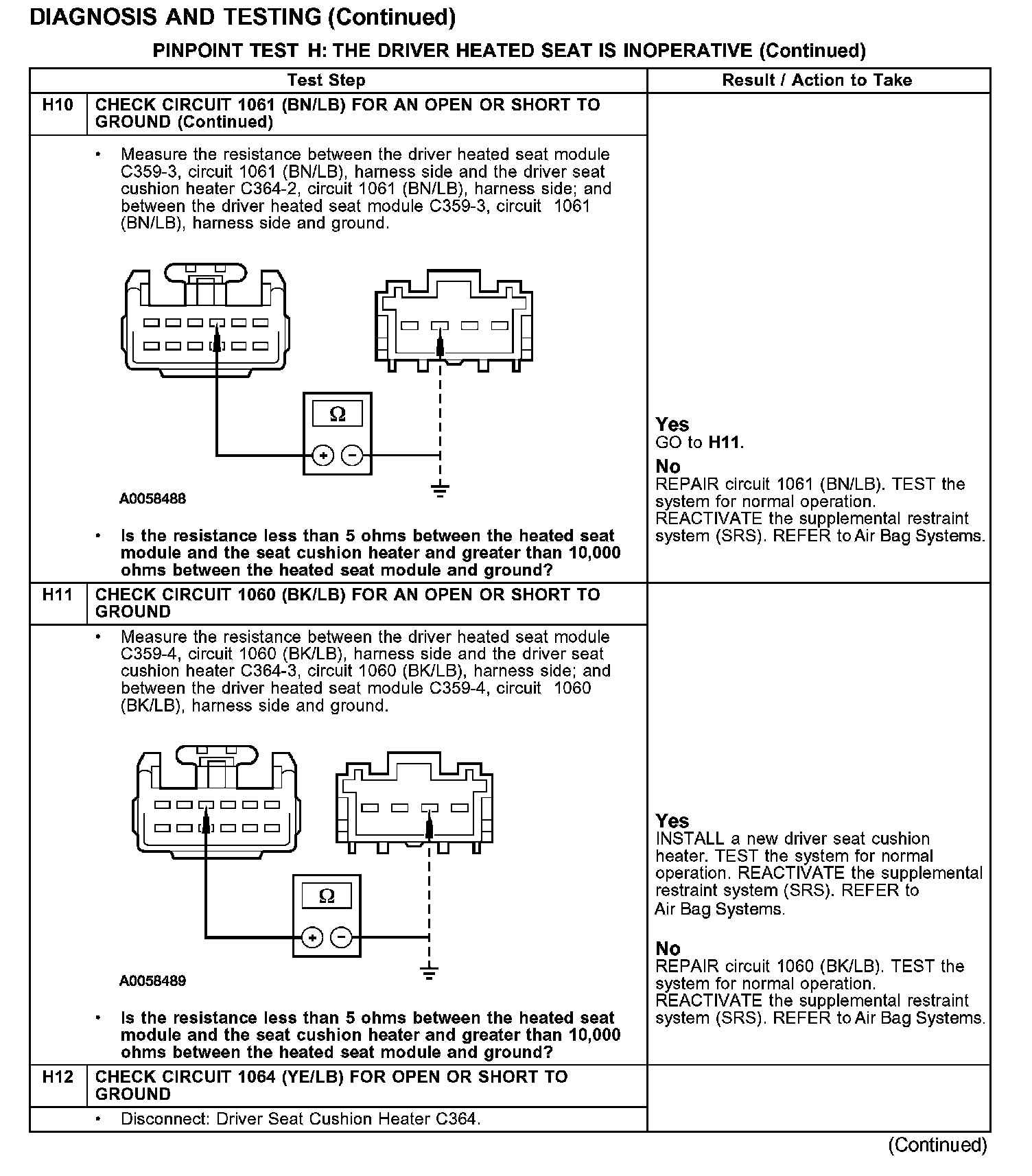

Test H10-H12:

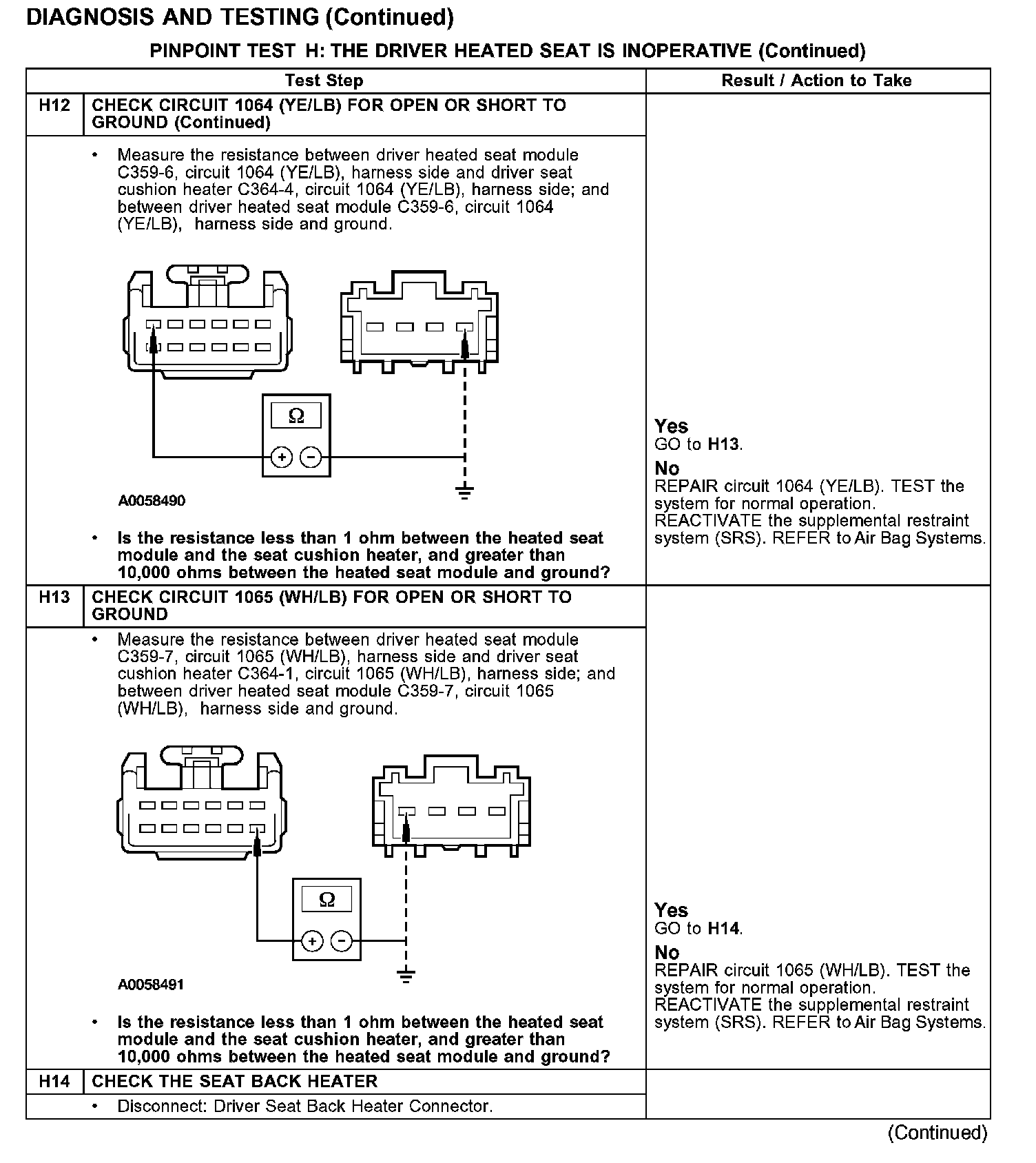

Test H12-H14:

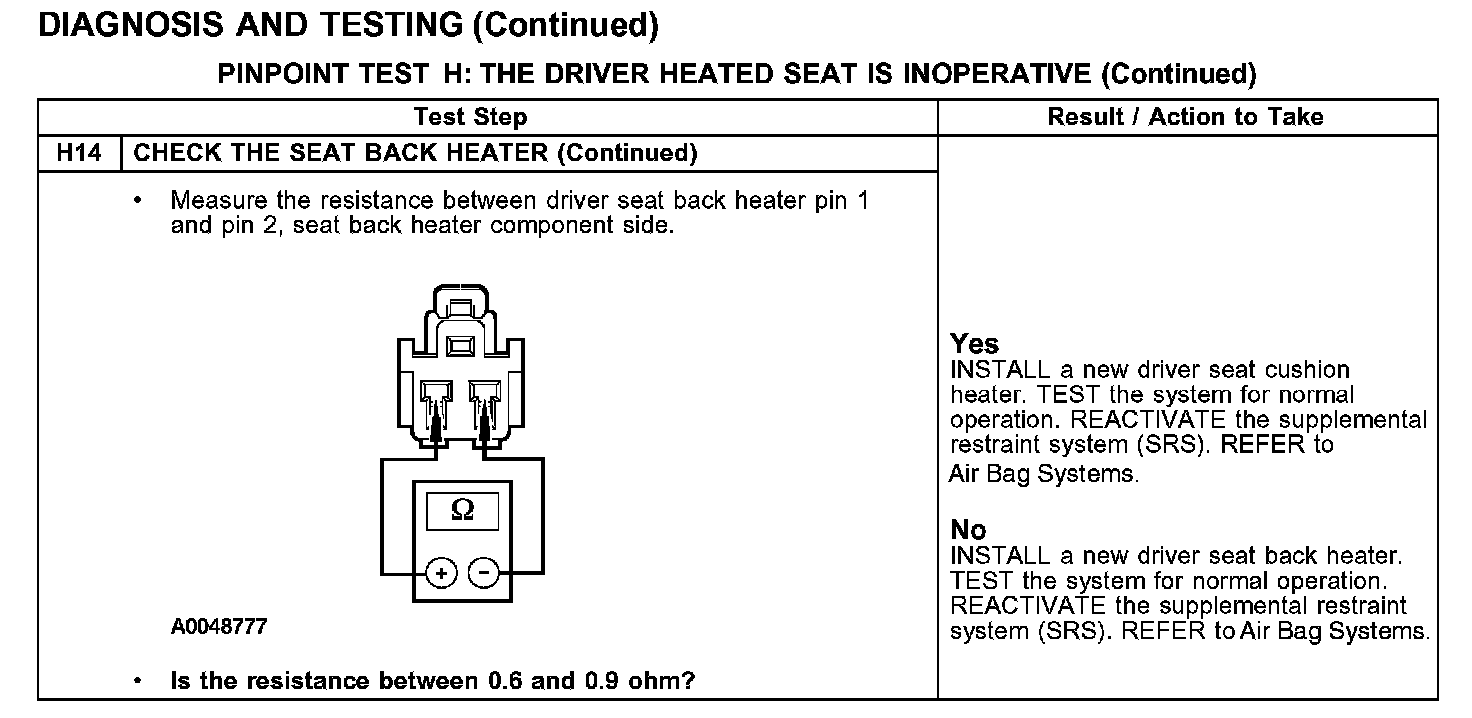

Test H14 Continued:
