PINPOINT TEST E: THE POWER SEAT DOES NOT RECLINE - PASSENGER SEAT

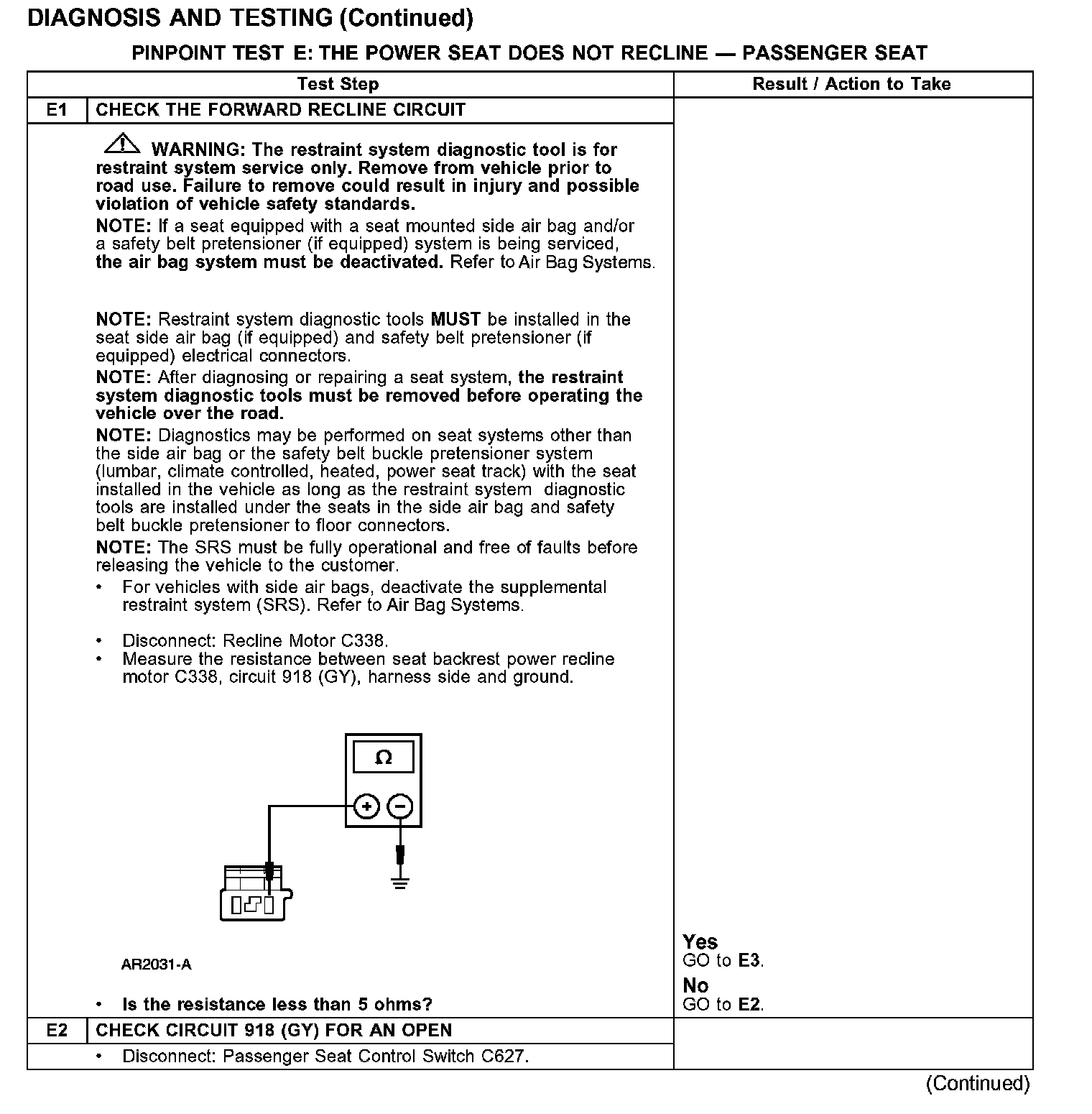

Test E1-E2:

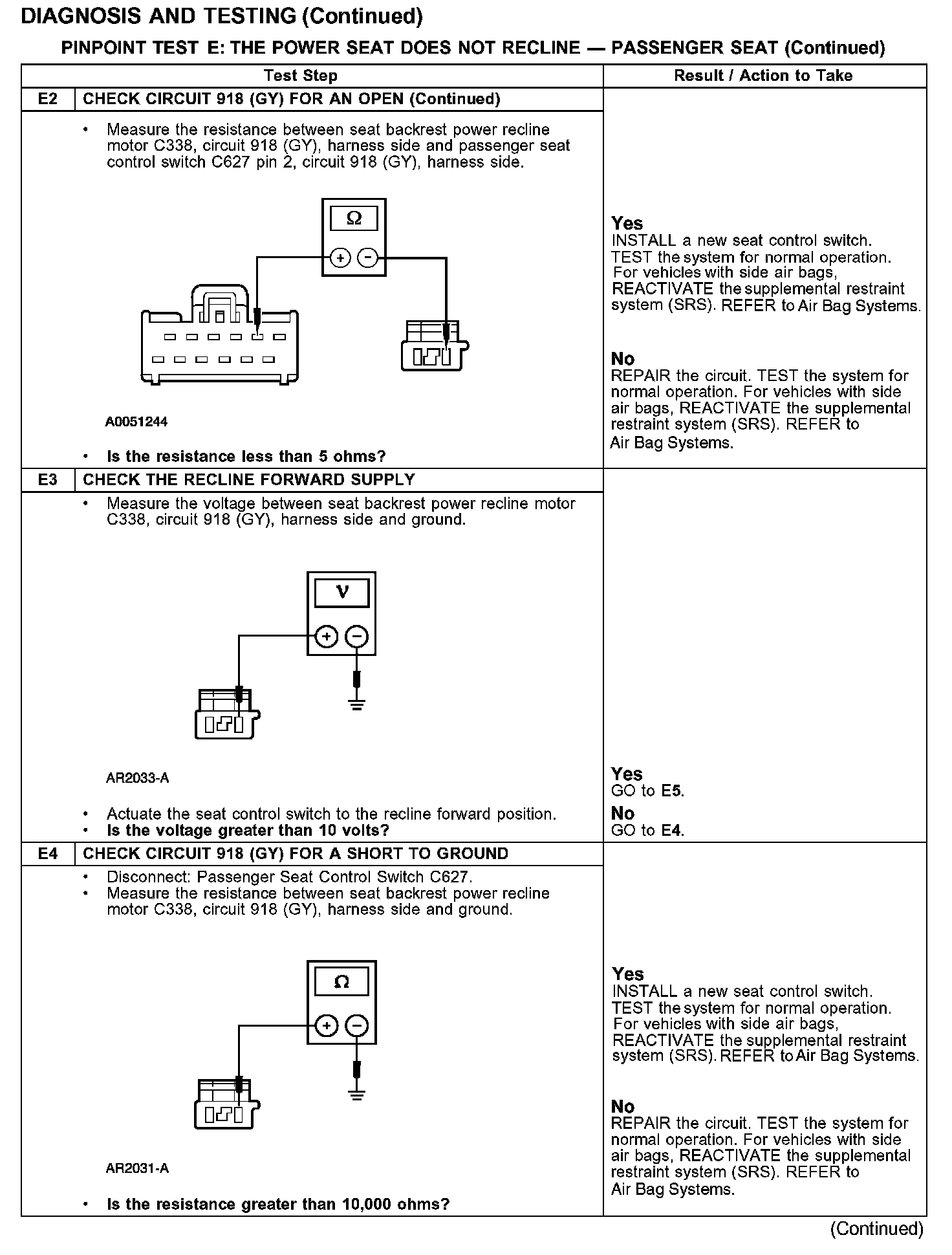

Test E2-E4:

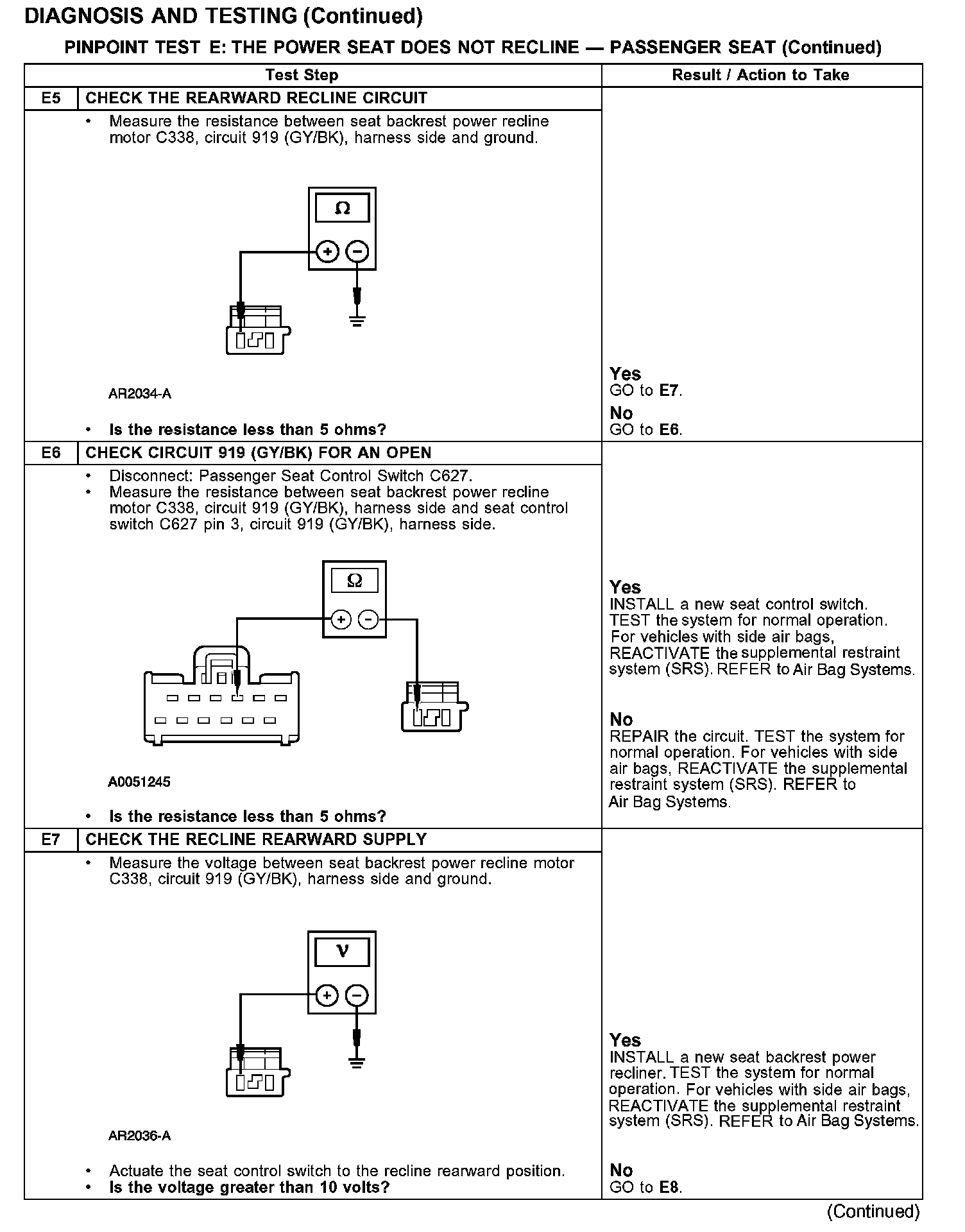

Test E5-E7:

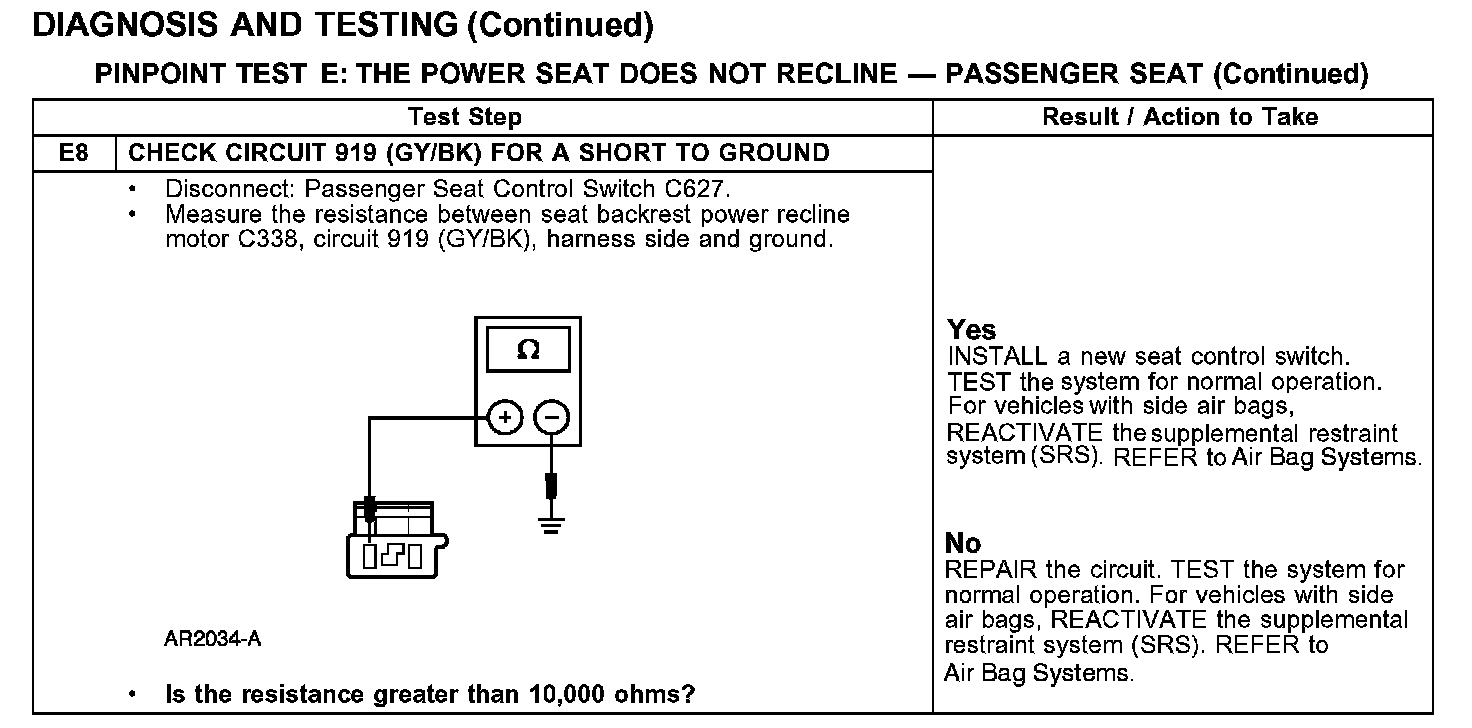

Test E8:
