PINPOINT TEST D: THE POWER SEAT DOES NOT RECLINE - DRIVER SEAT

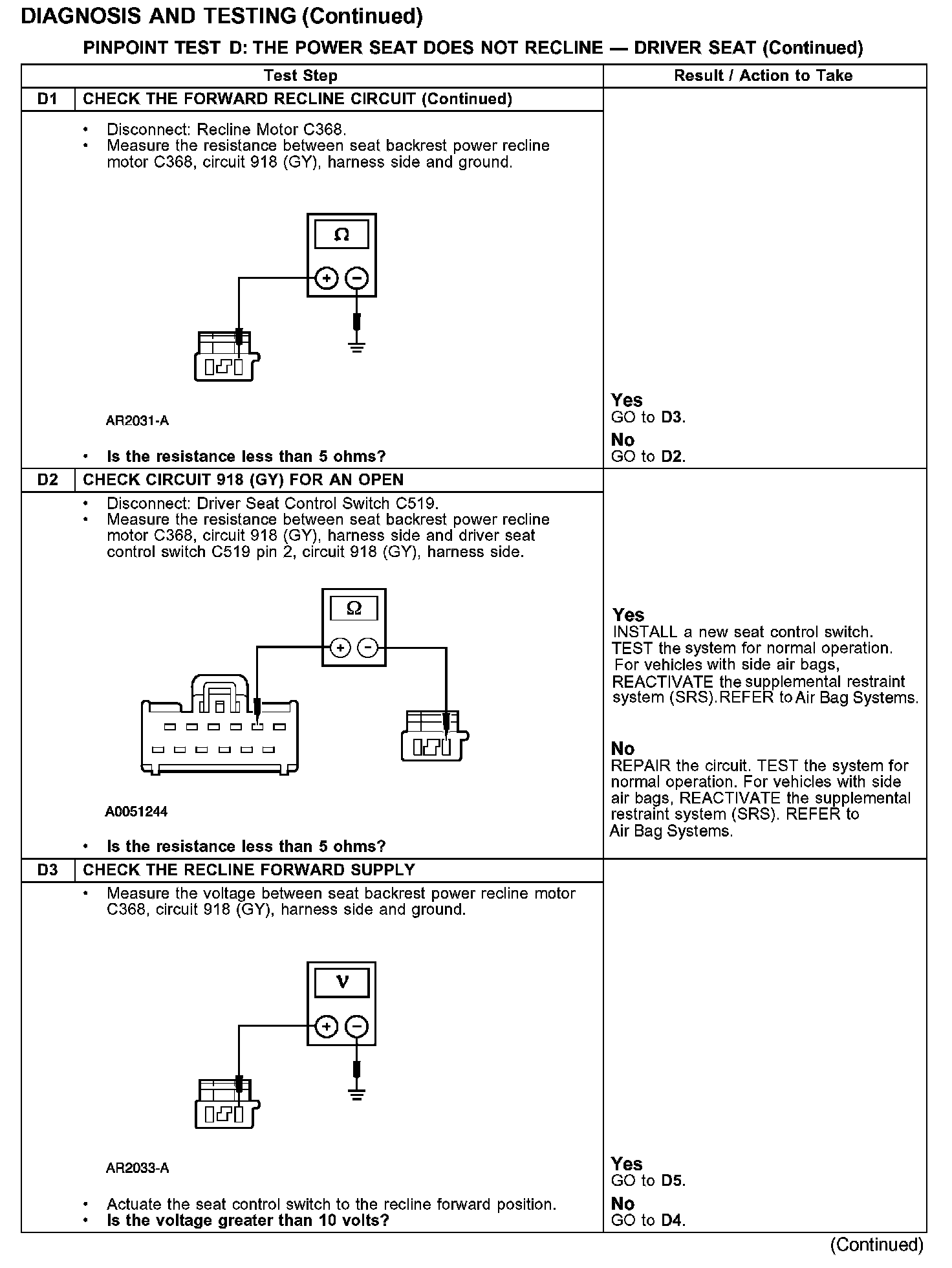

Test D1:
Test D1-D3:

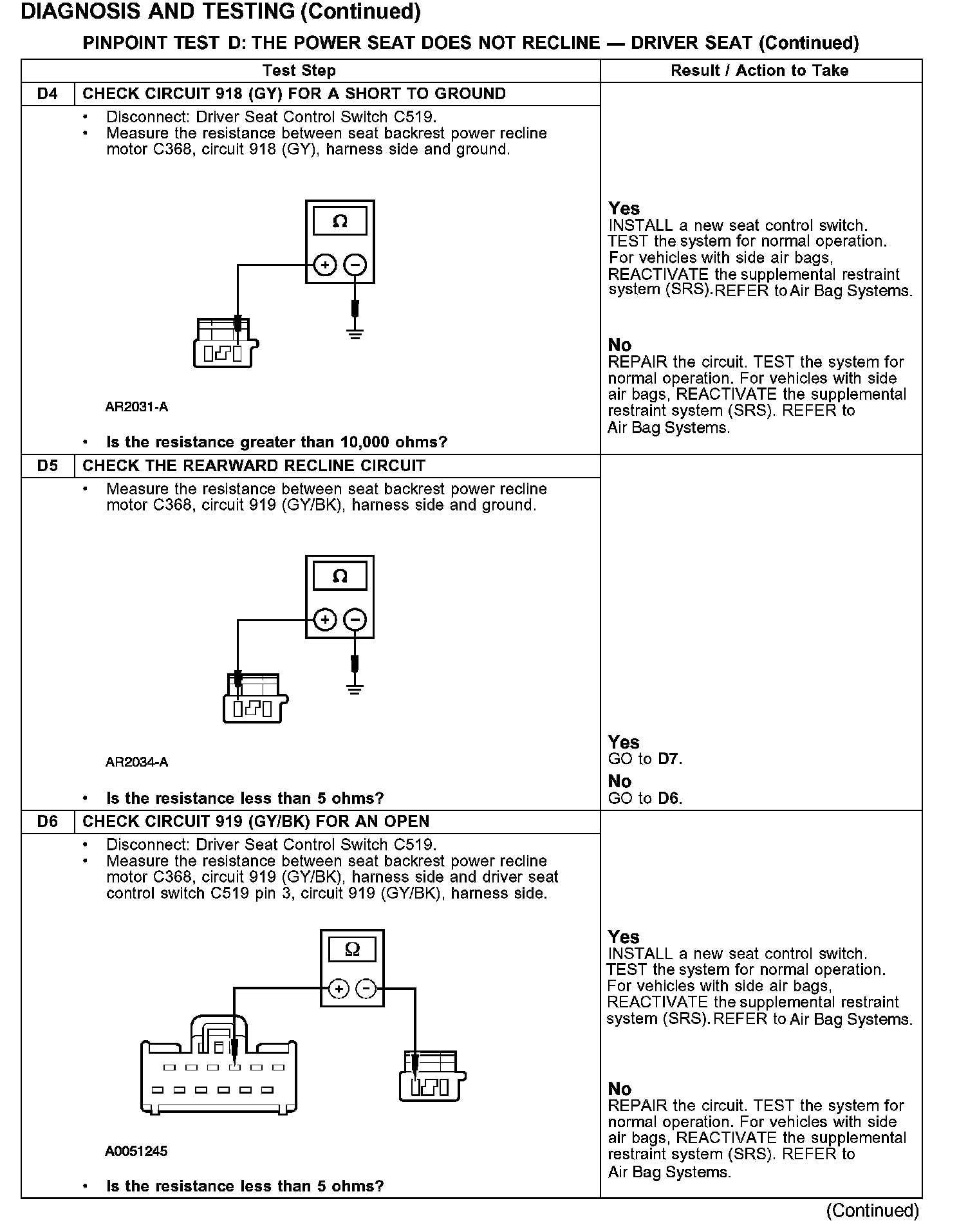

Test D4-D6:

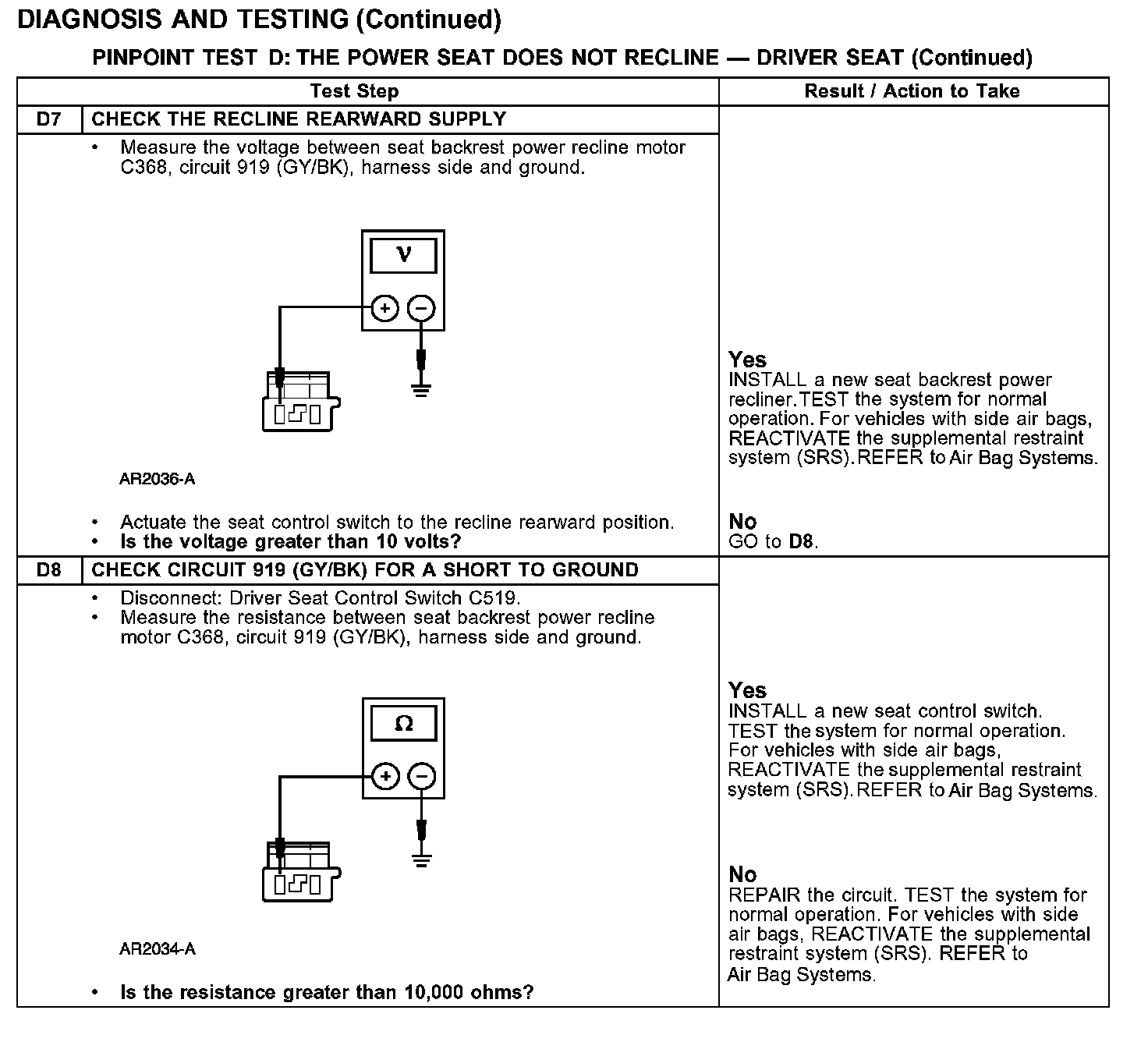

Test D7-D8:
