FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C
Test C

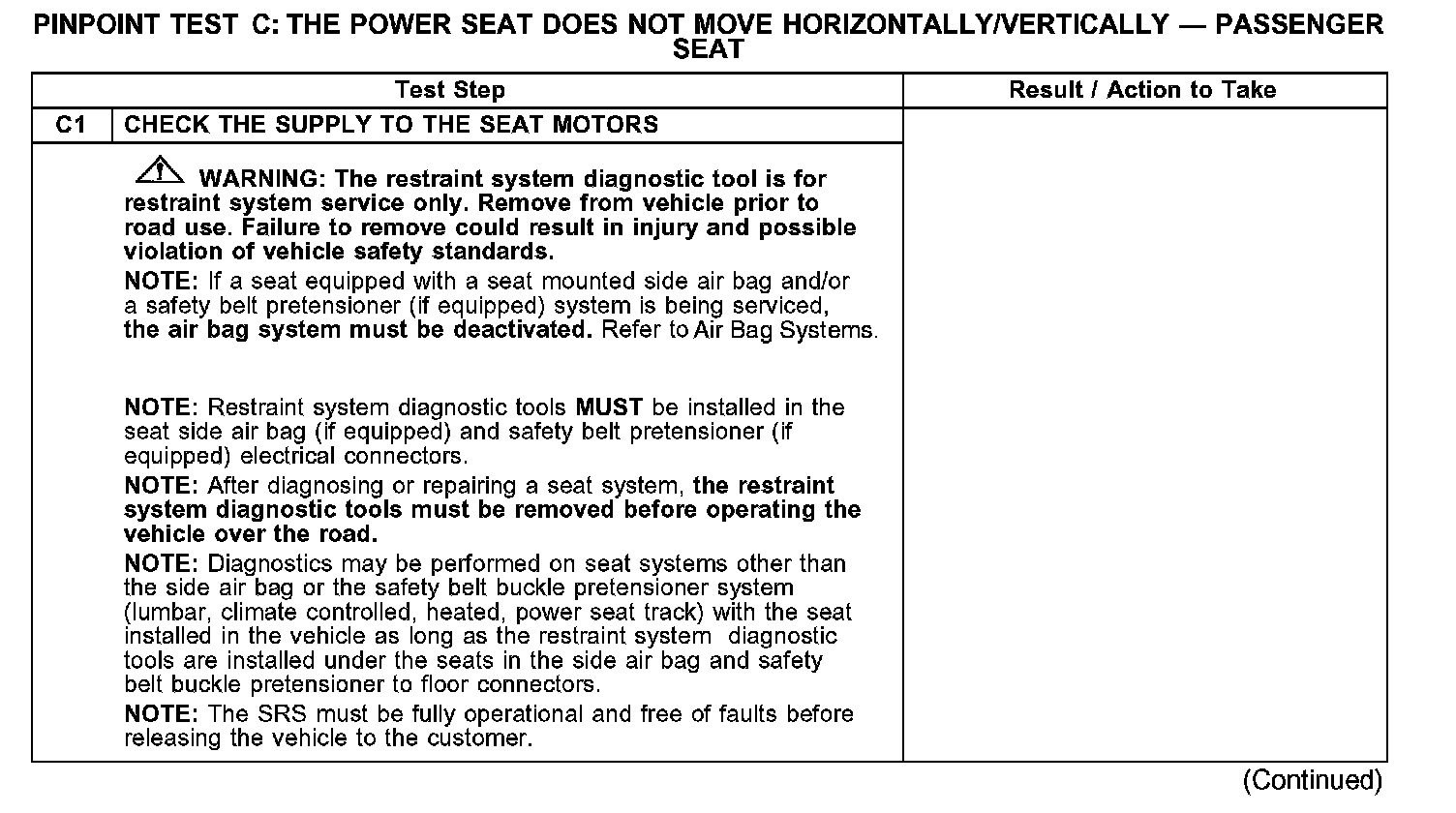

PINPOINT TEST C: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - PASSENGER SEAT

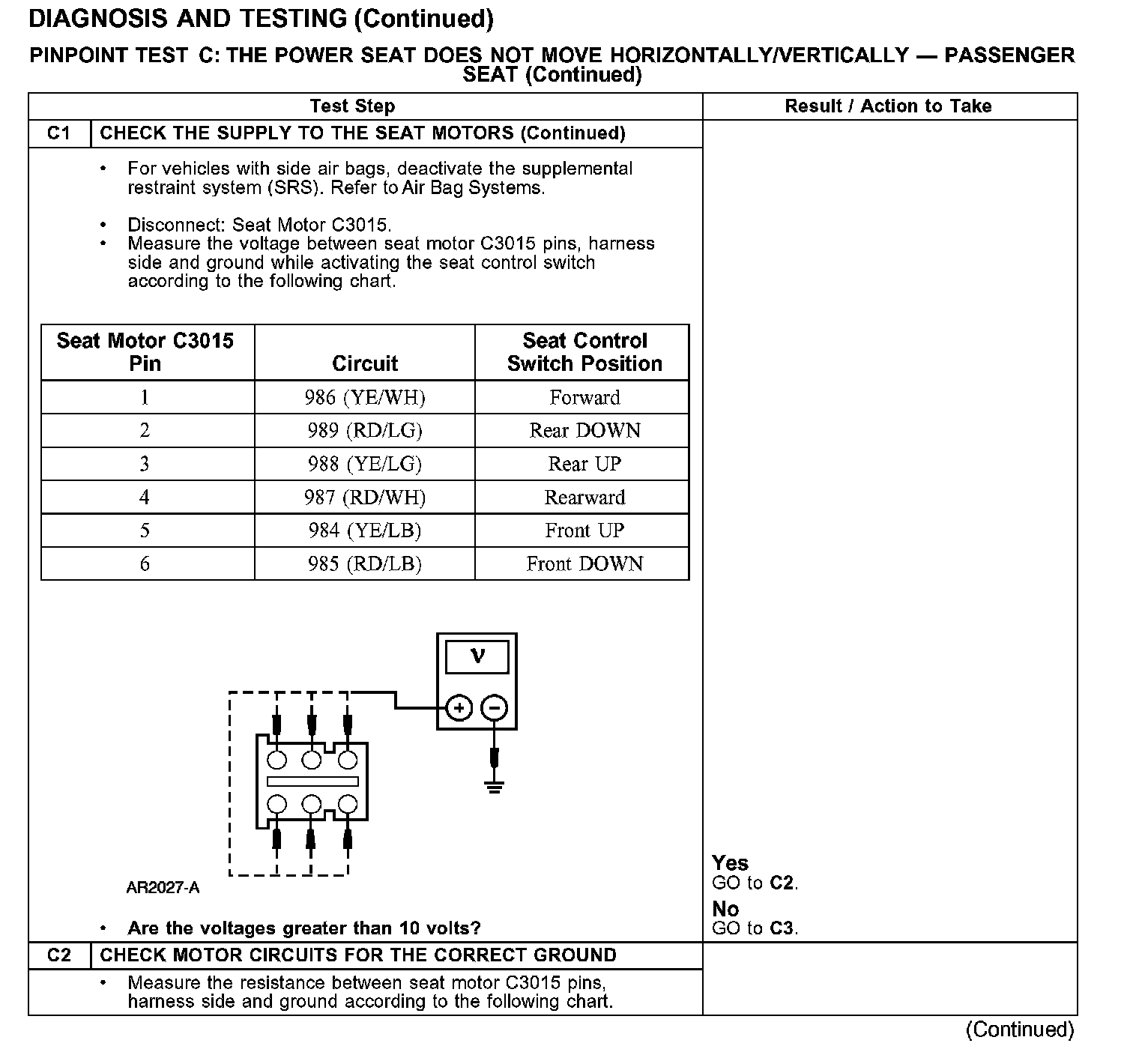

Test C1:

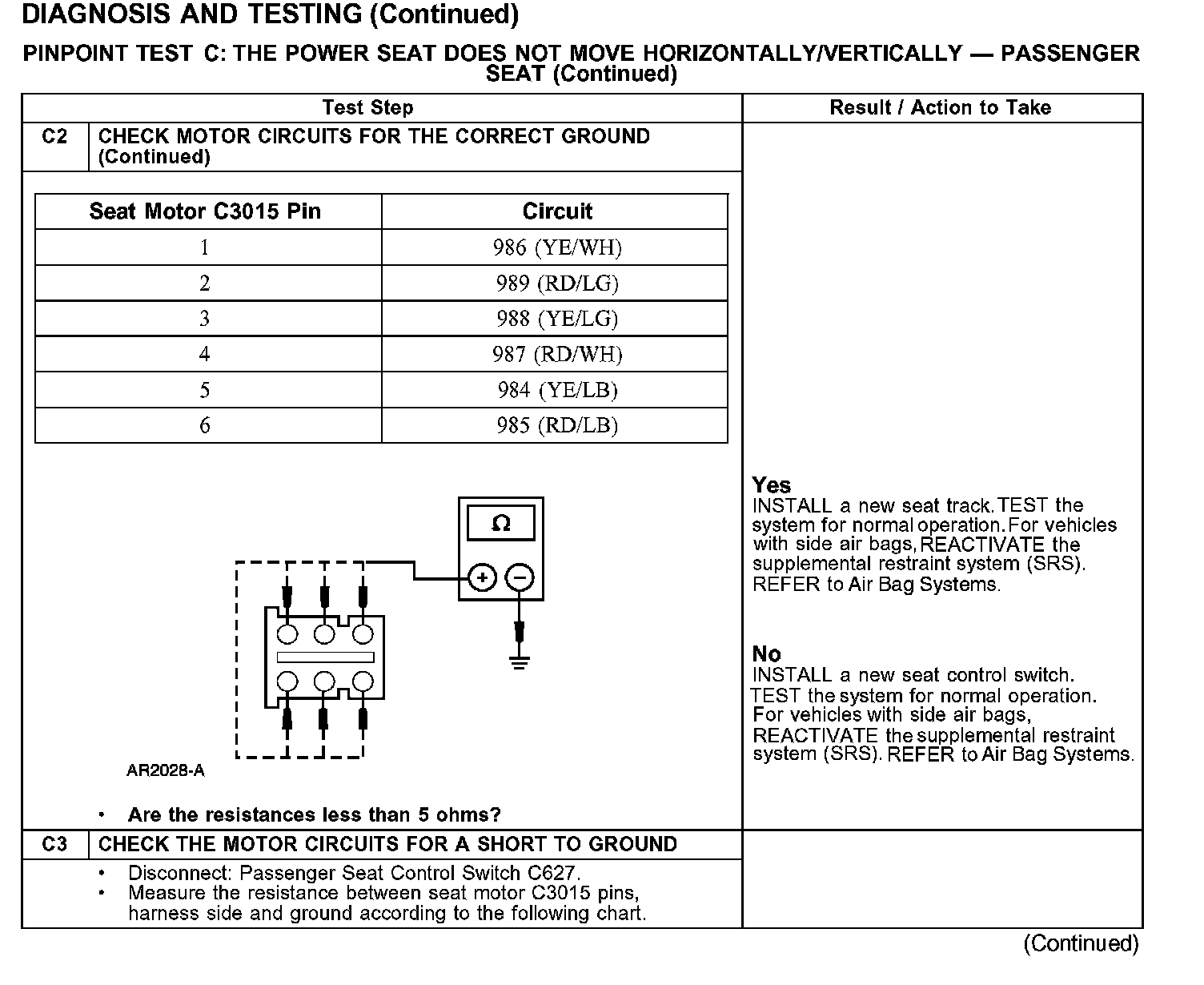

Test C1-C2:
Test C2-C3:

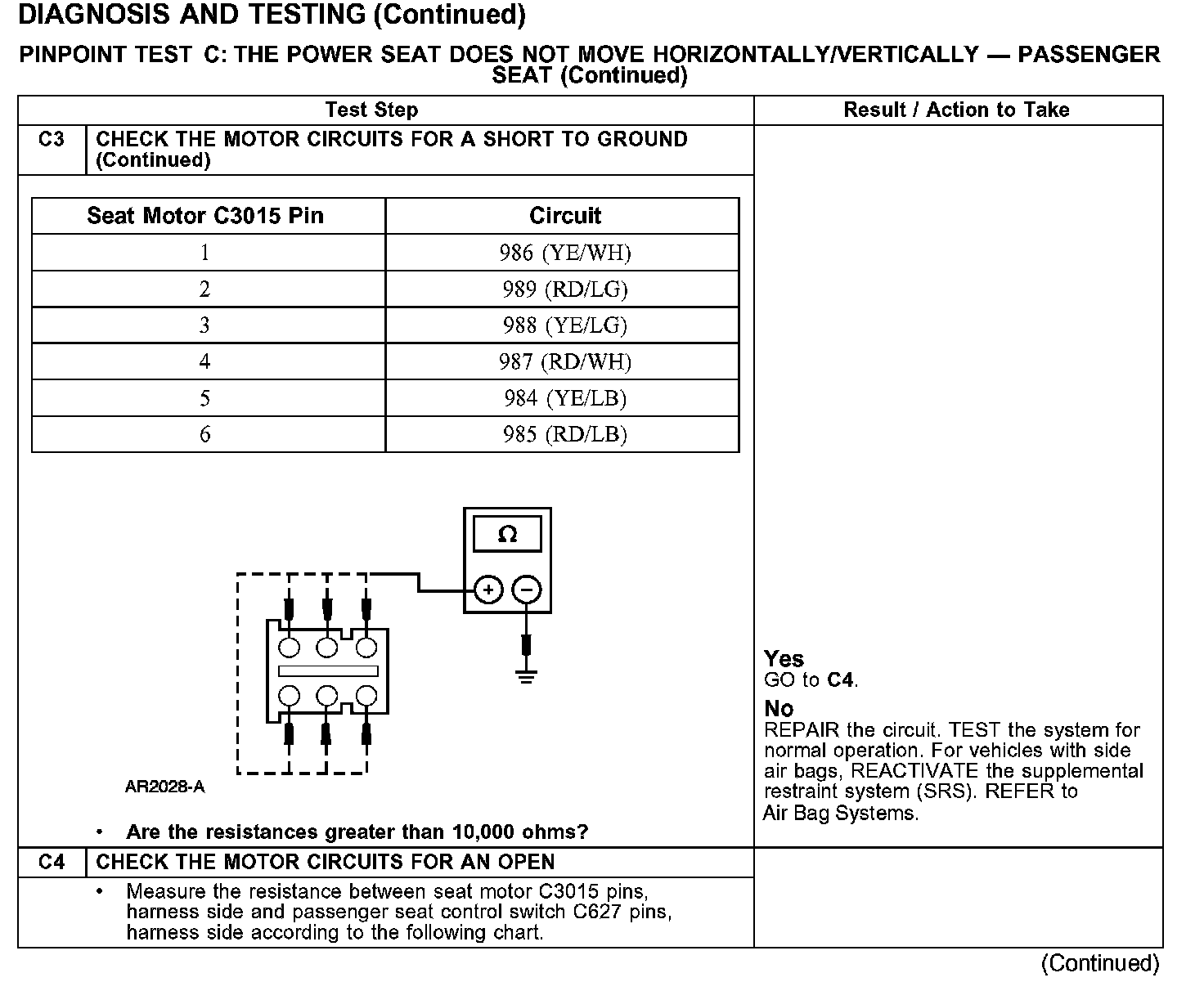

Test C3-C4:

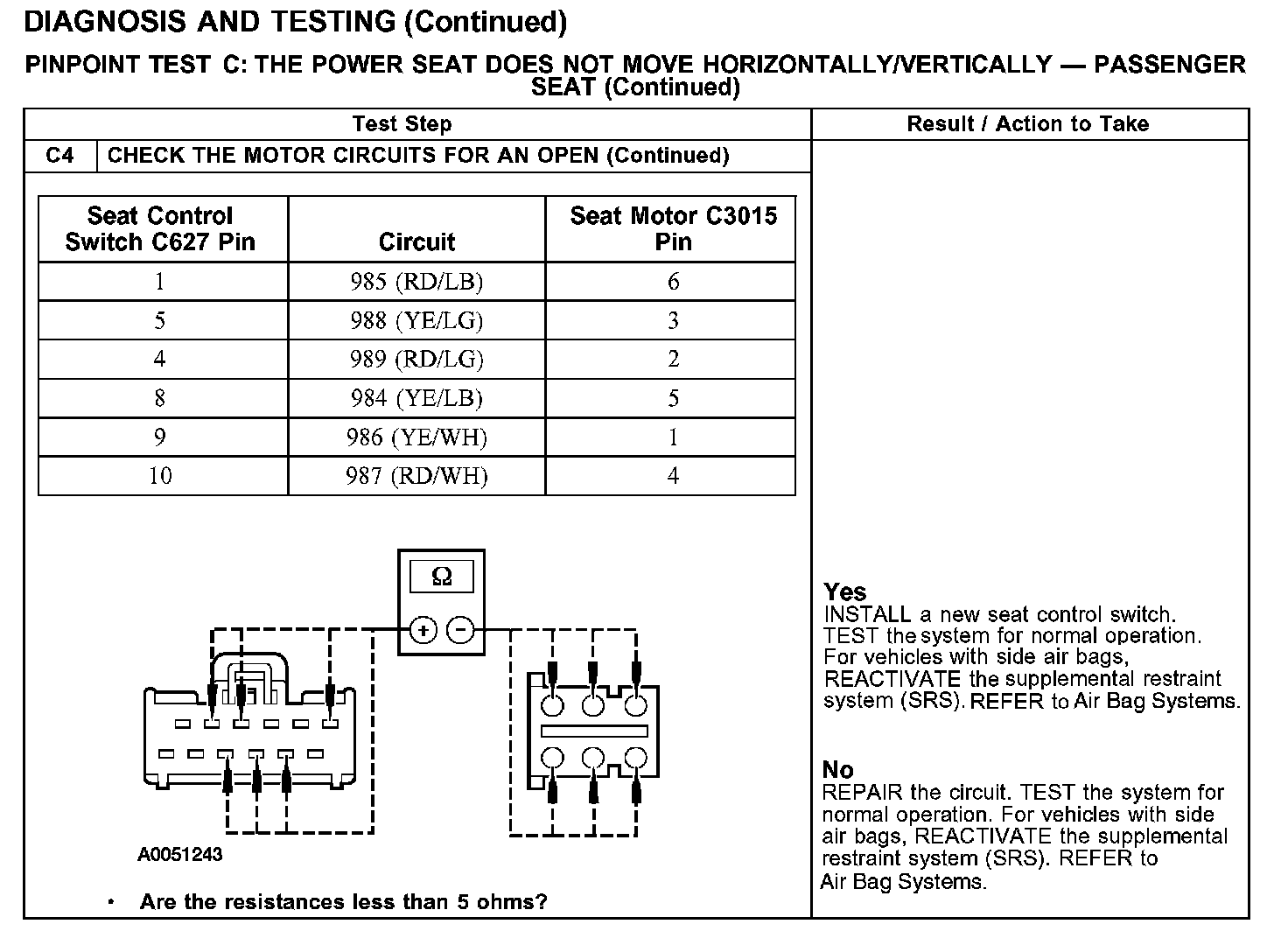

Test C4 Continued:
