PINPOINT TEST B: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - DRIVER SEAT

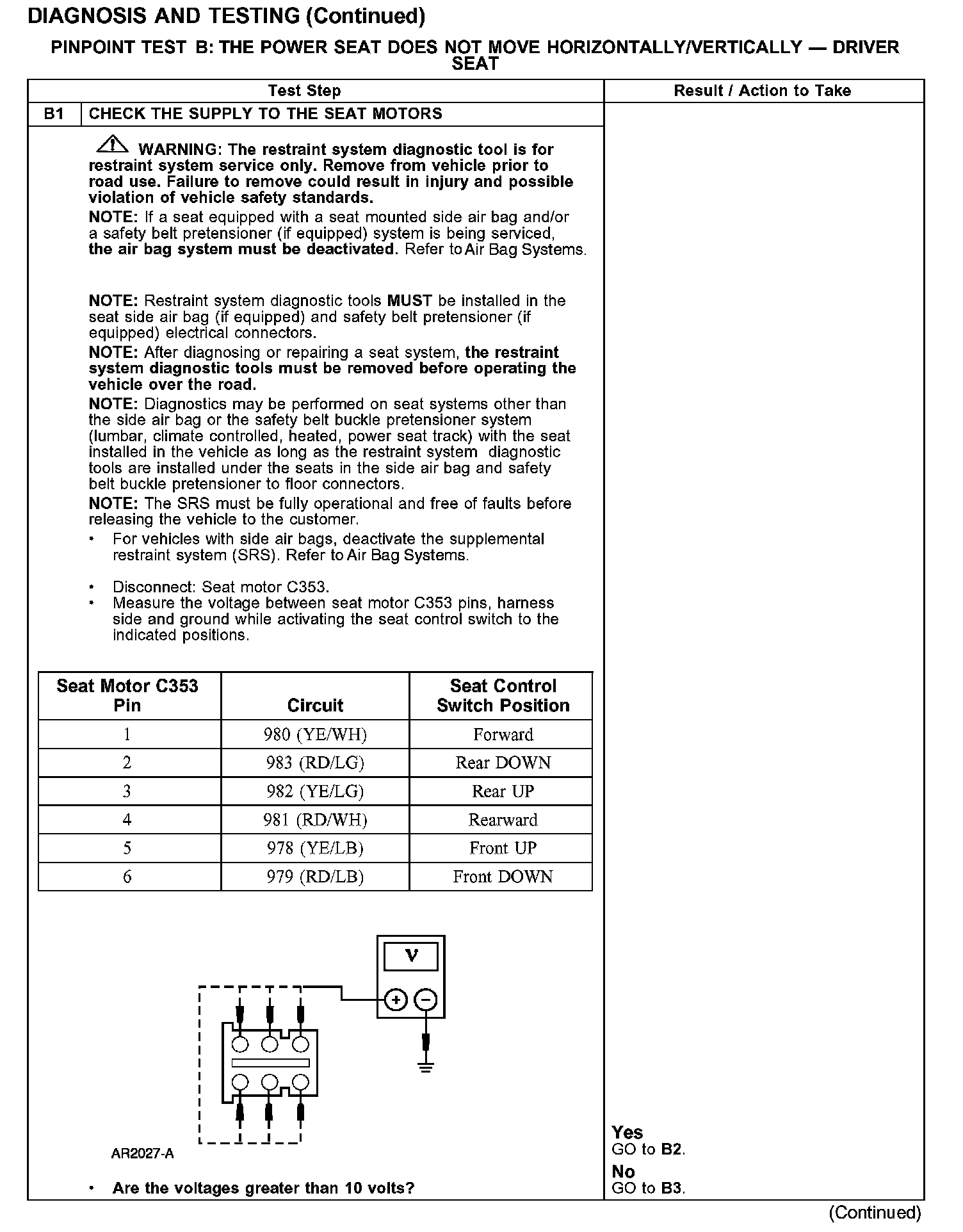

Test B1:

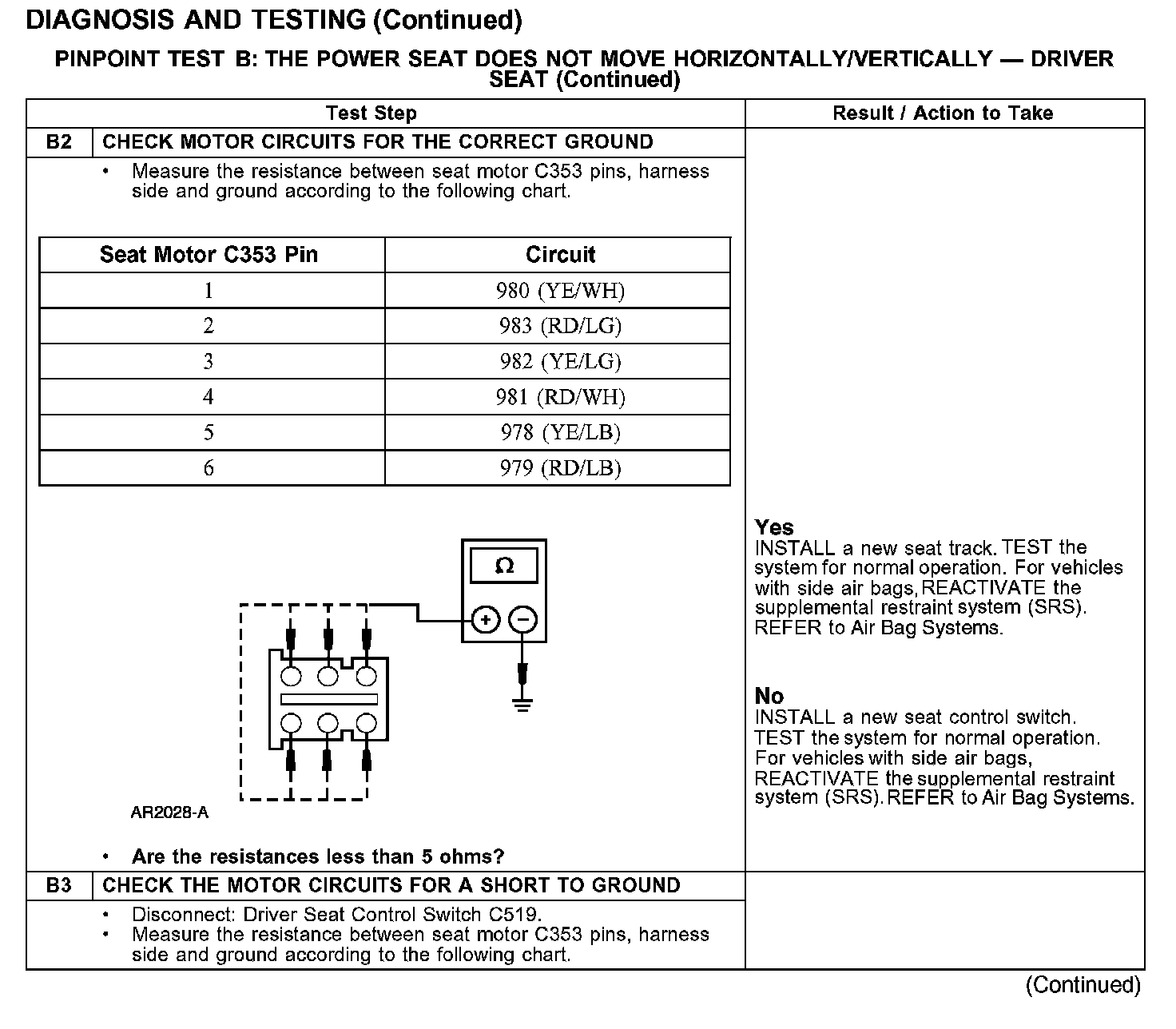

Test B2-B3:

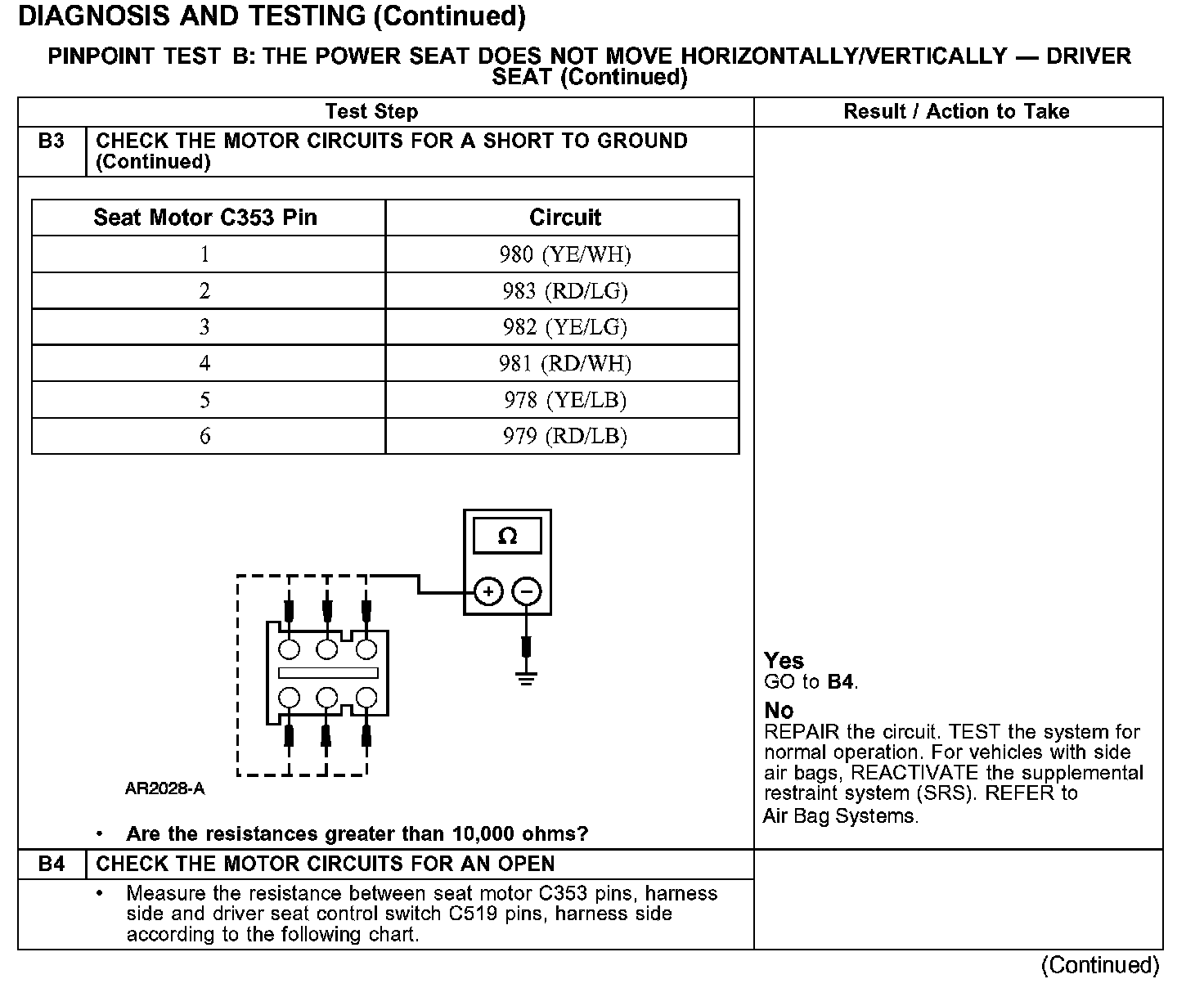

Test B3-B4:

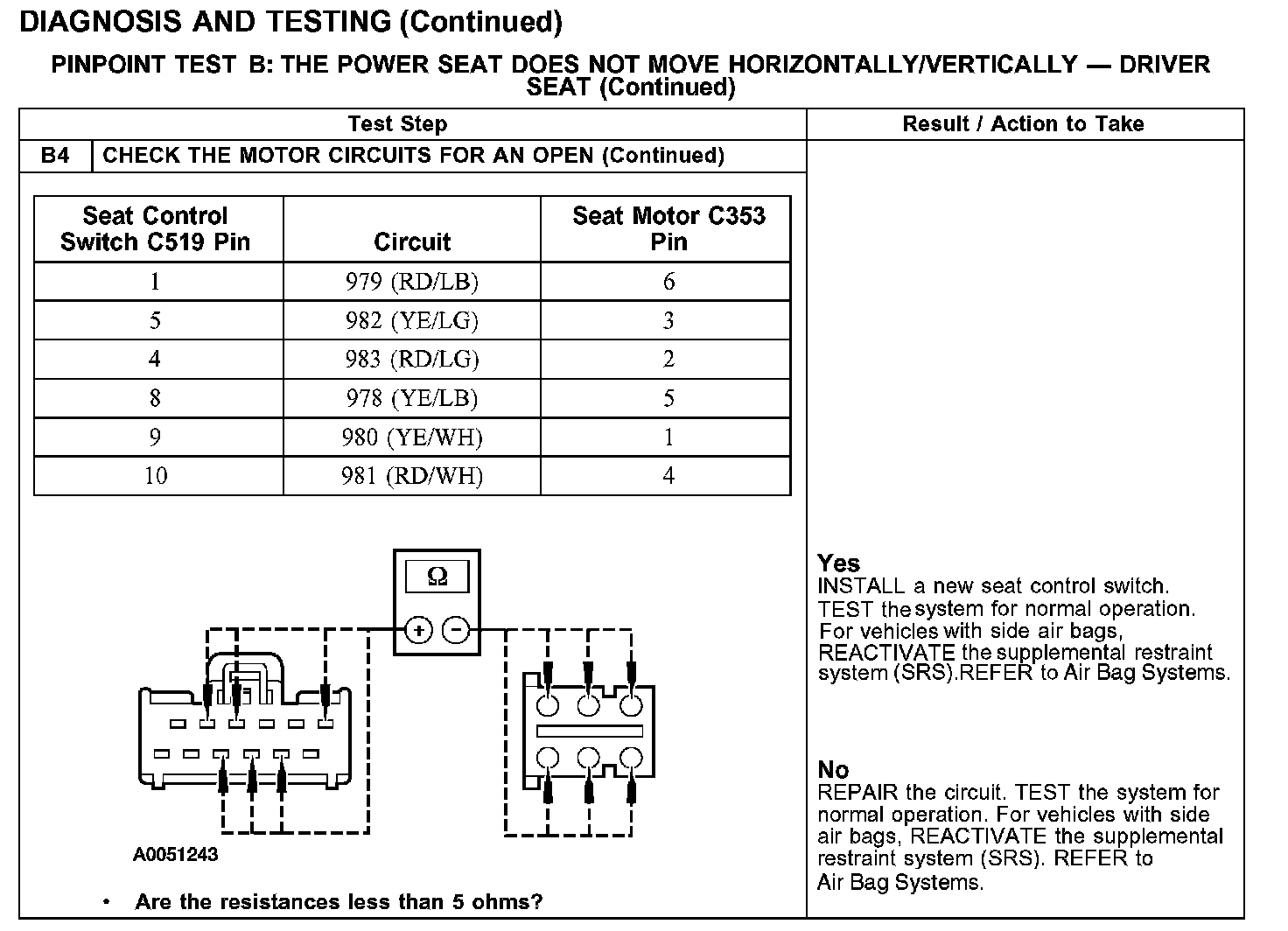

Test B4 Continued:
