PINPOINT TEST E: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE IN THE VENT POSITION

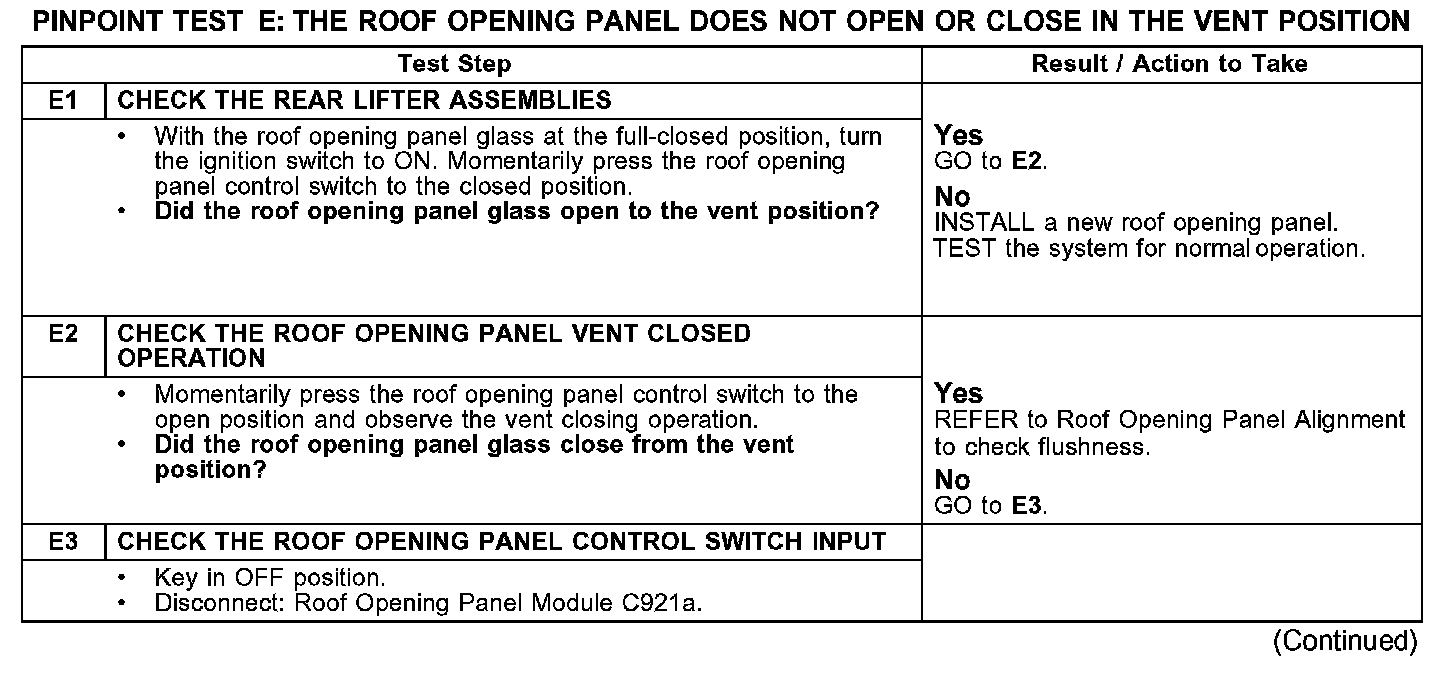

Test E1-E3:

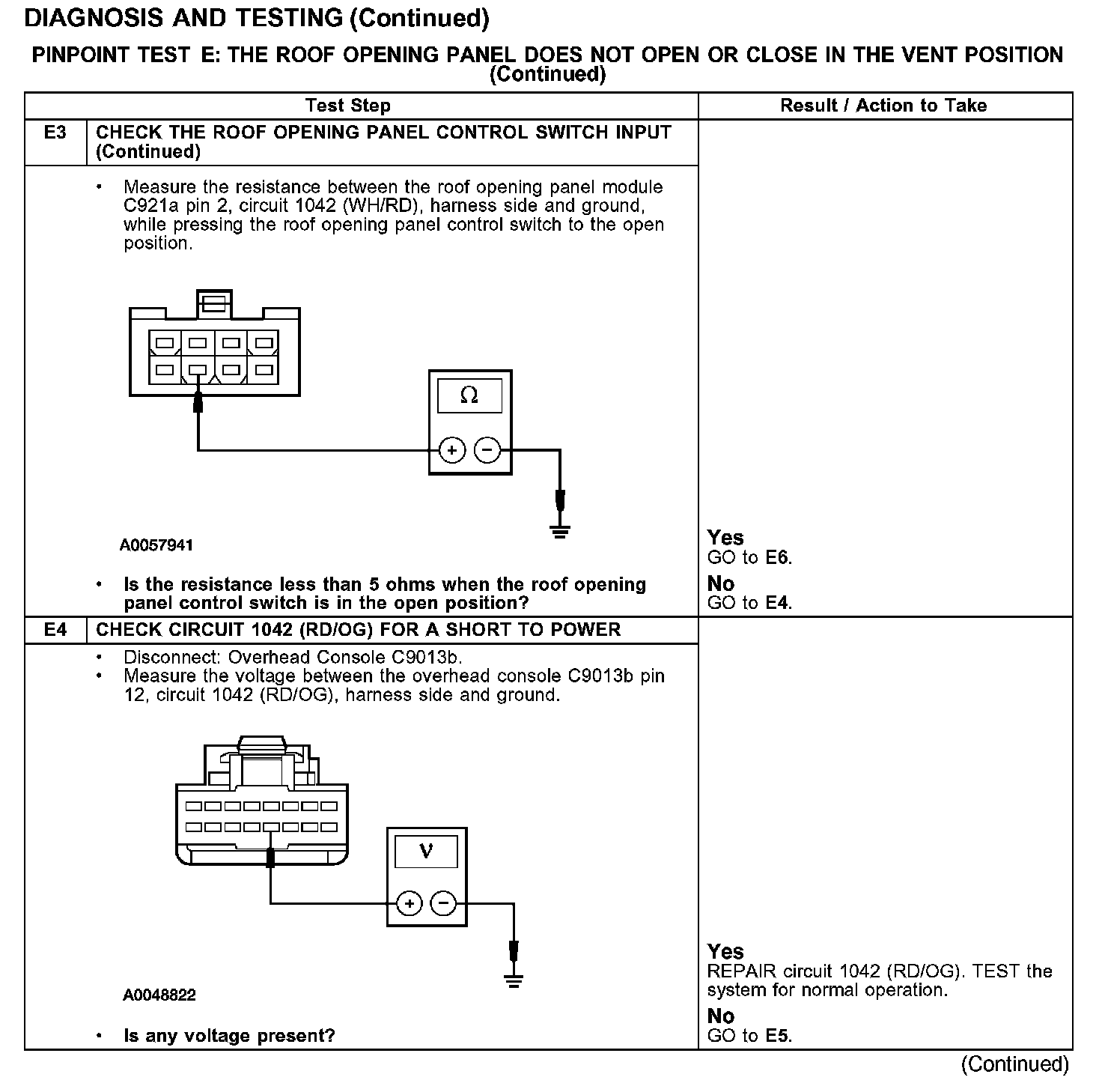

Test E3-E4:

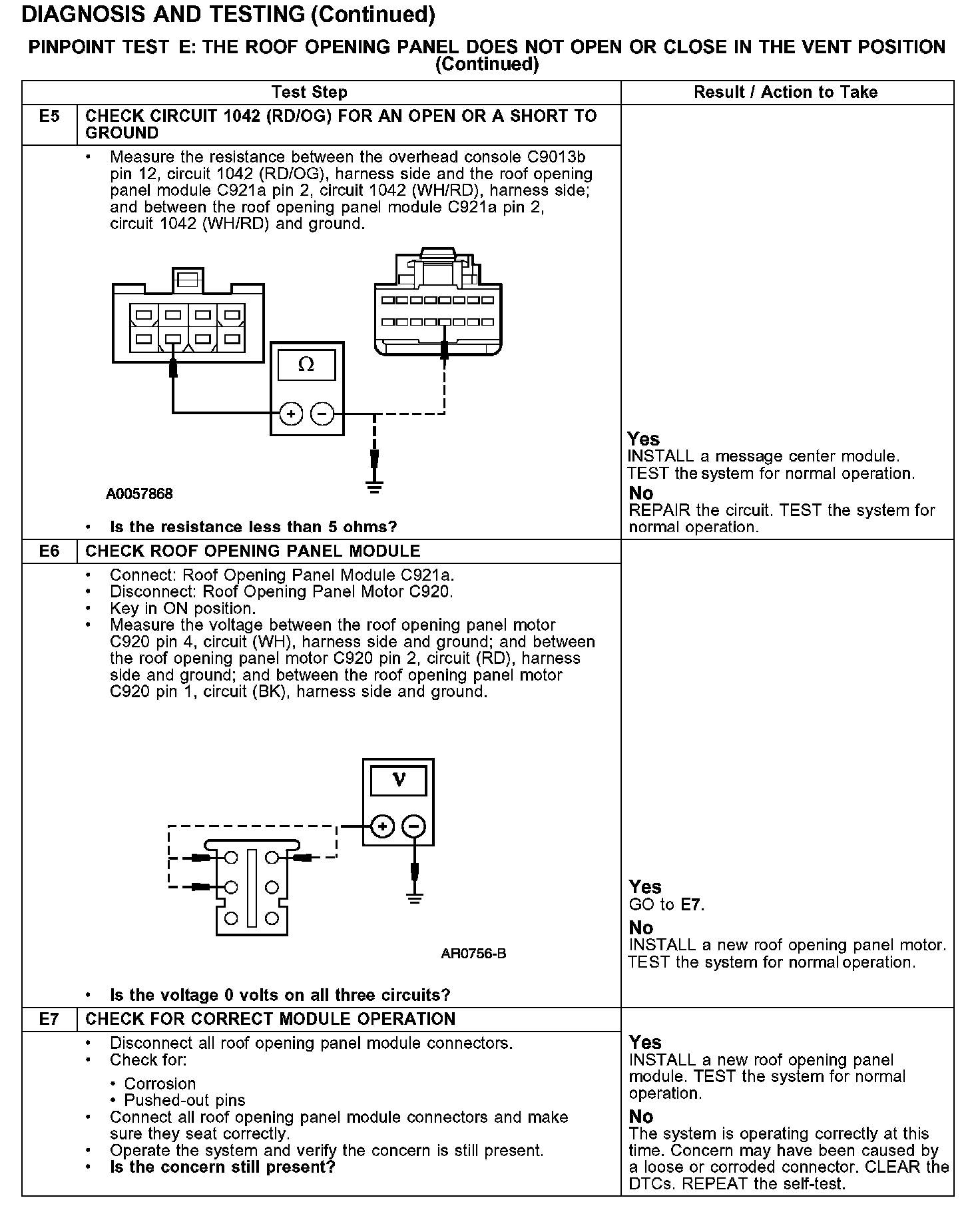

Test E5-E7:
