PINPOINT TEST D: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE

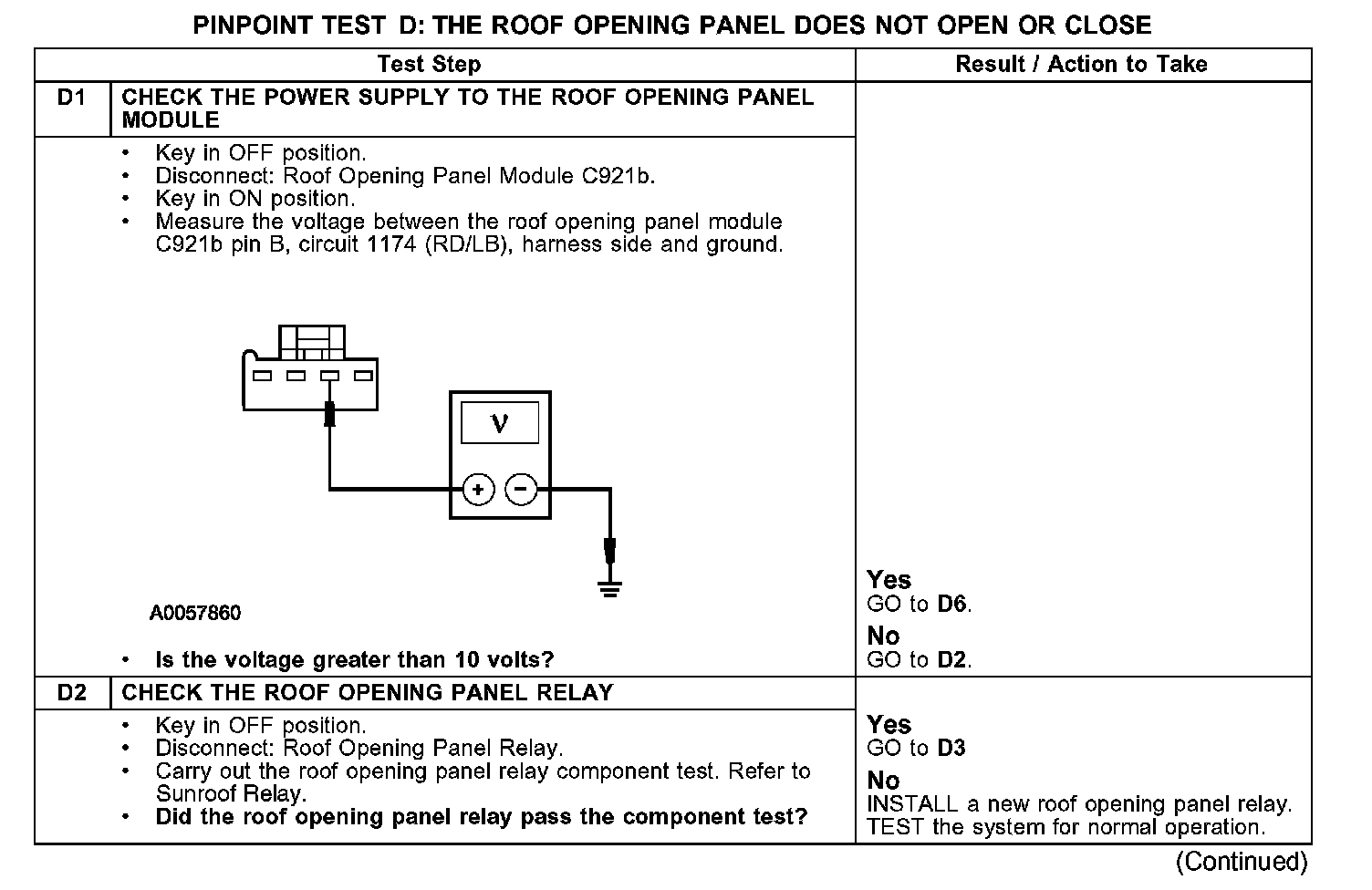

Test D1-D2:

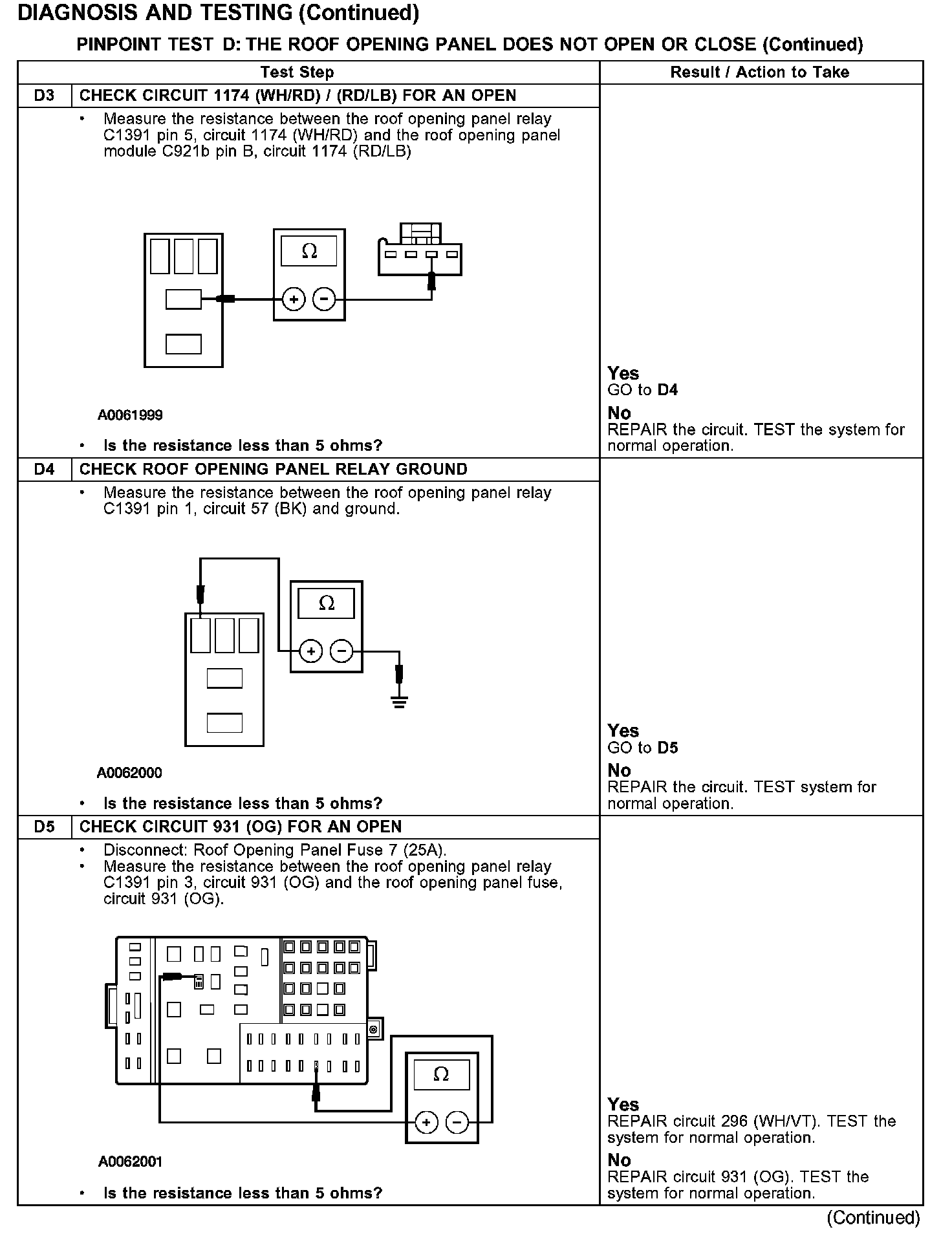

Test D3-D5:

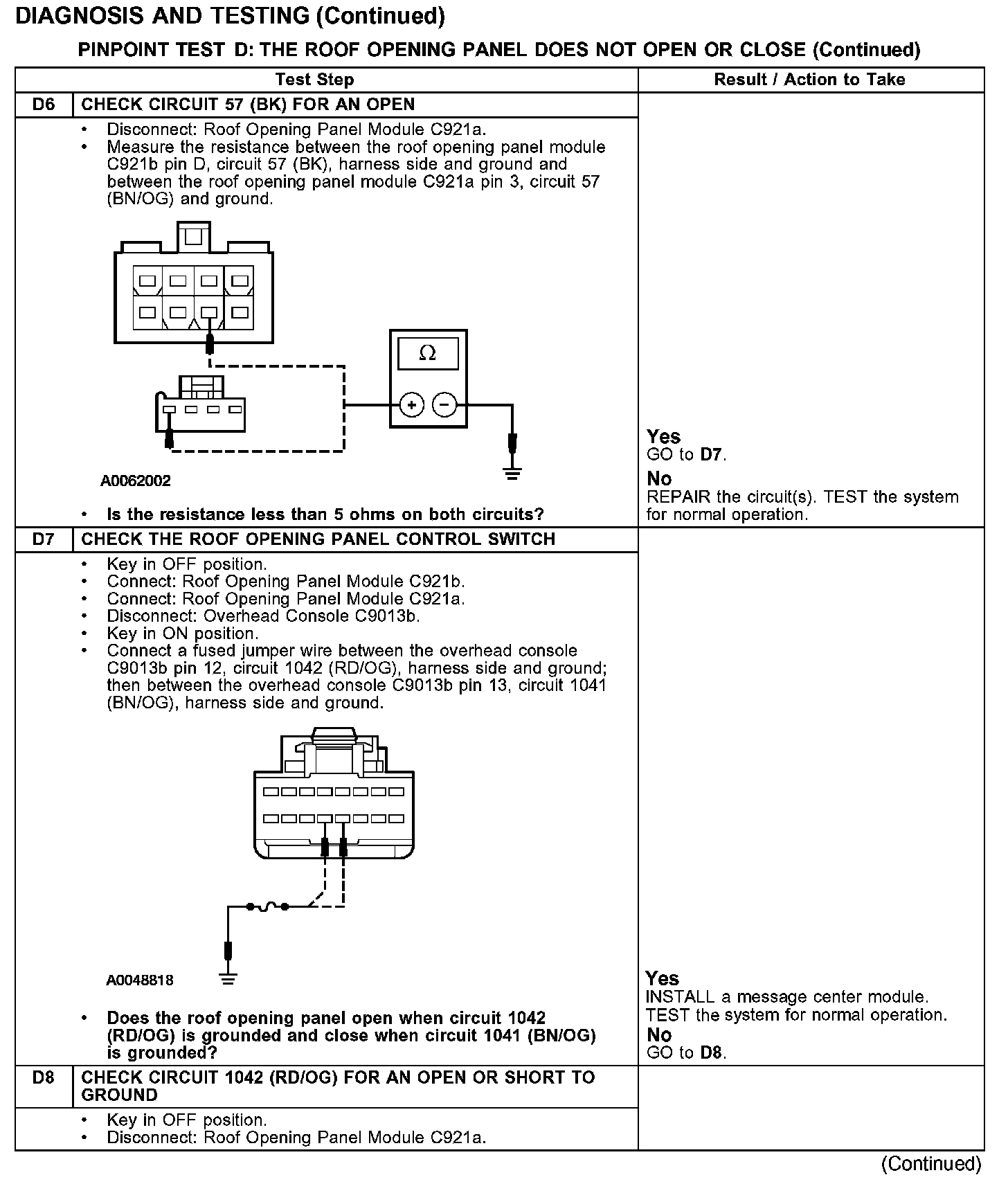

Test D6-D8:

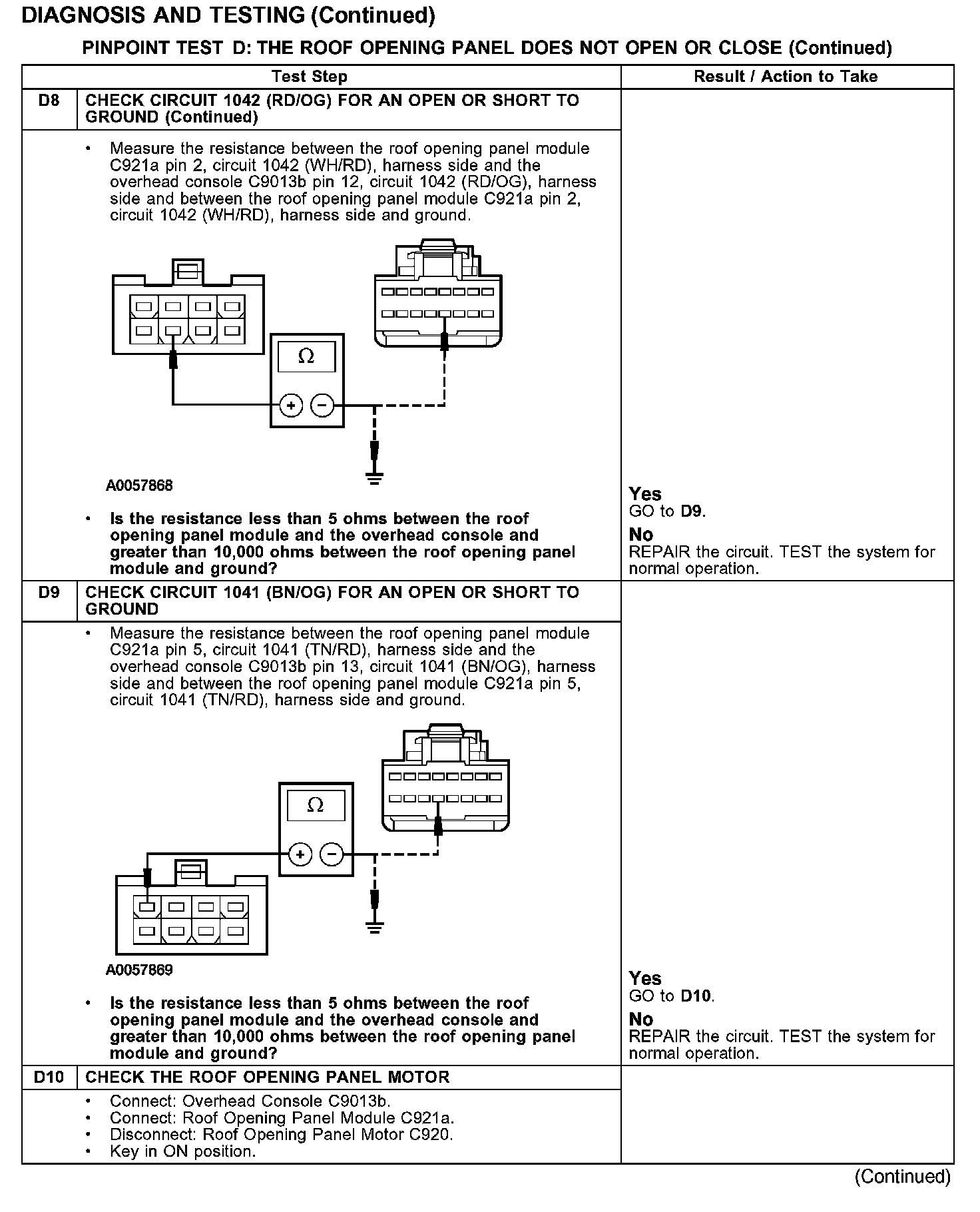

Test D8-D10:

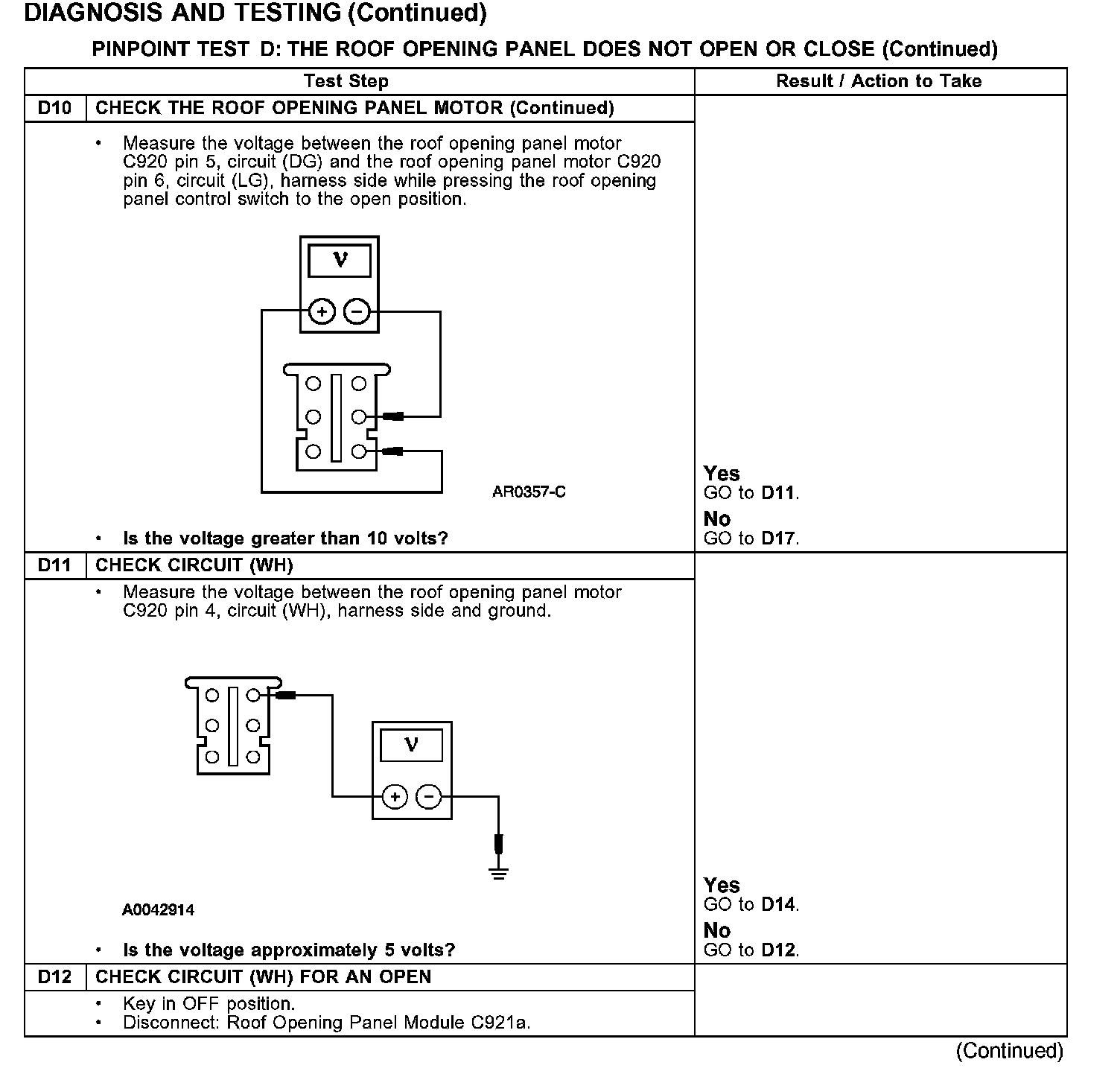

Test D10-D12:

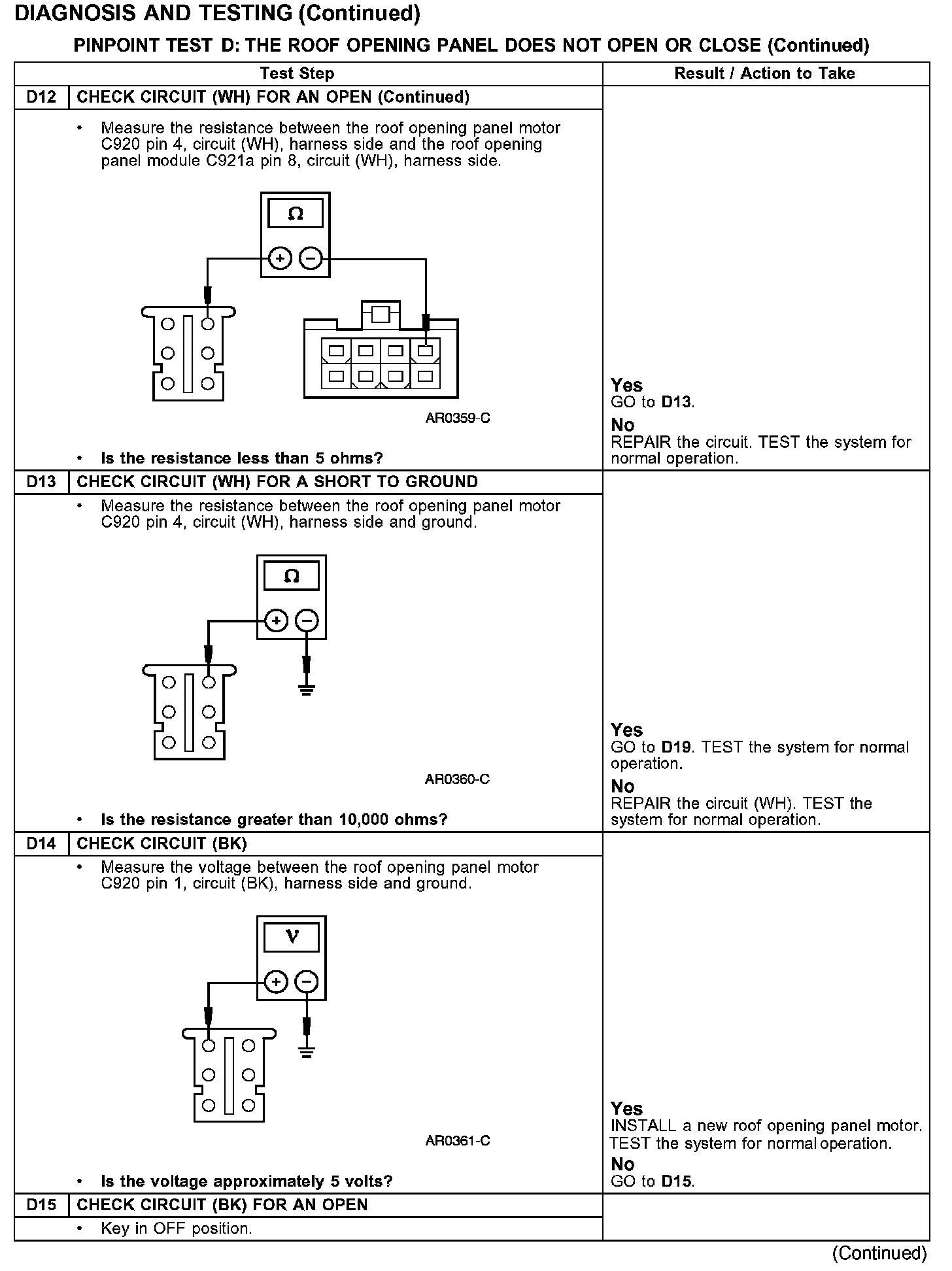

Test D12-D15:
Test D15-D17:

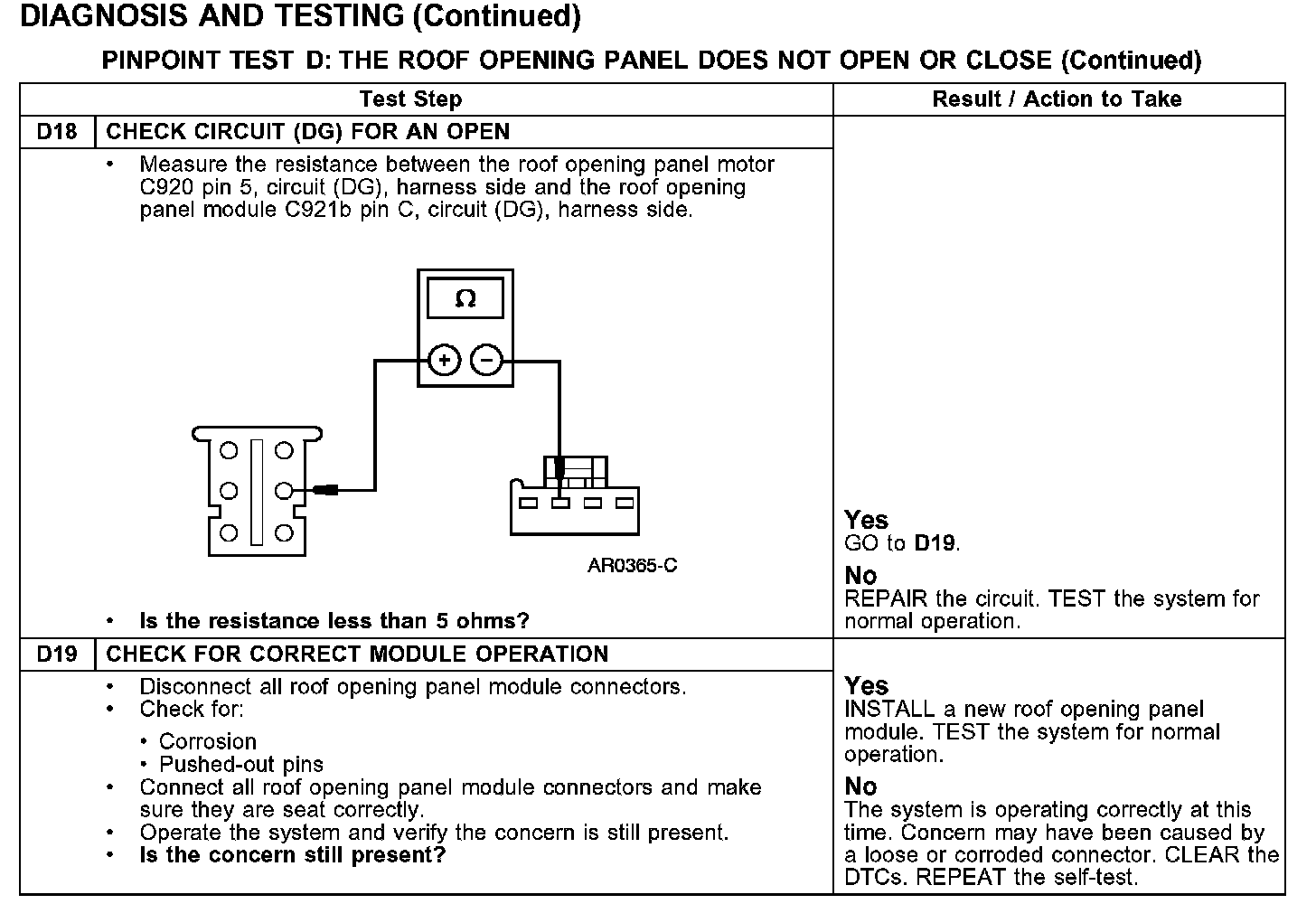

Test D18-D19:
