Roof Opening Panel Shield

ROOF OPENING PANEL SHIELD

REMOVAL
1. Remove the roof opening panel glass.

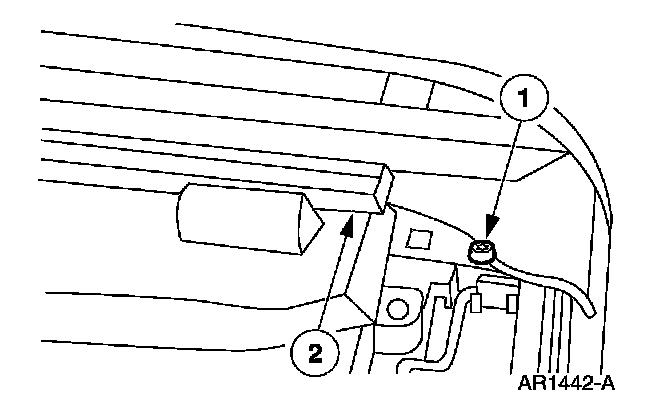

2. Remove the trough assembly.
1 Remove the two screws (one each side).
2 Remove the trough assembly.

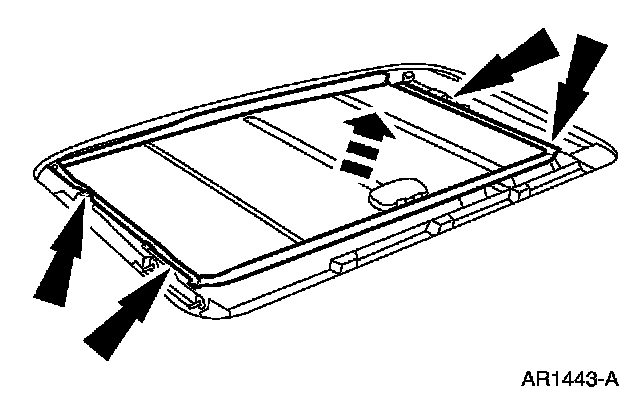

3. Pull the roof opening panel shield forward.







4. Flex the center of the roof opening panel shield up to disengage it from the track.

INSTALLATION







1. Flex the center of the roof opening panel shield up and insert the front and rear tabs in the track.

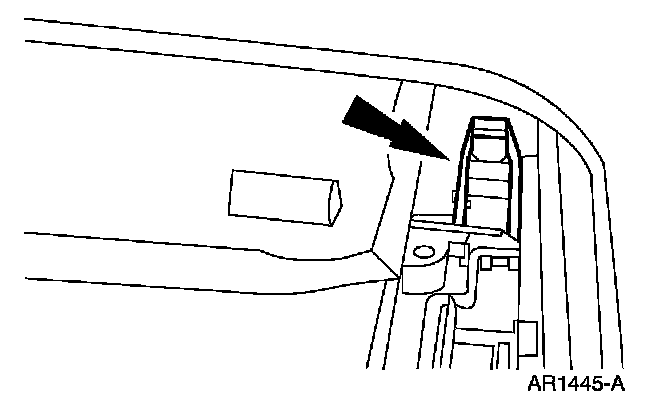

2. Install the trough assembly under the tab on each side.

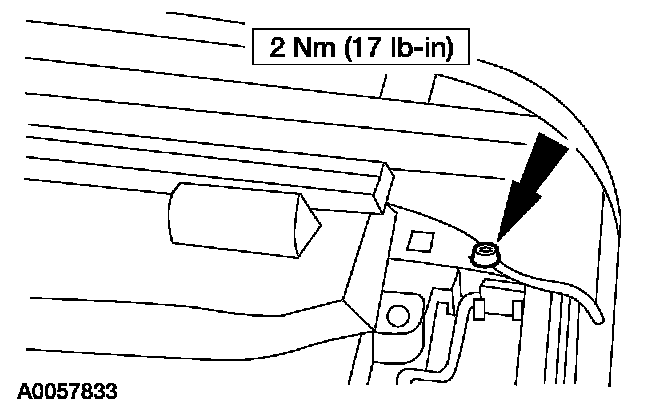

3. Install the two screws (one each side).
4. Install the roof opening panel glass.
