Roof Opening Panel Glass

ROOF OPENING PANEL GLASS

REMOVAL
1. Operate the roof opening panel glass to the flush position.

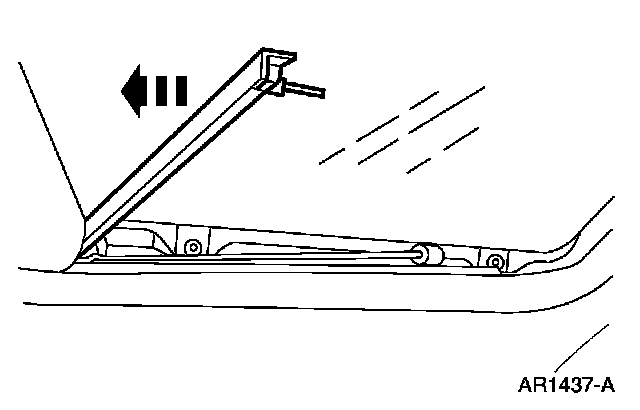

2. Swing the LH and RH roof opening panel covers rearward.

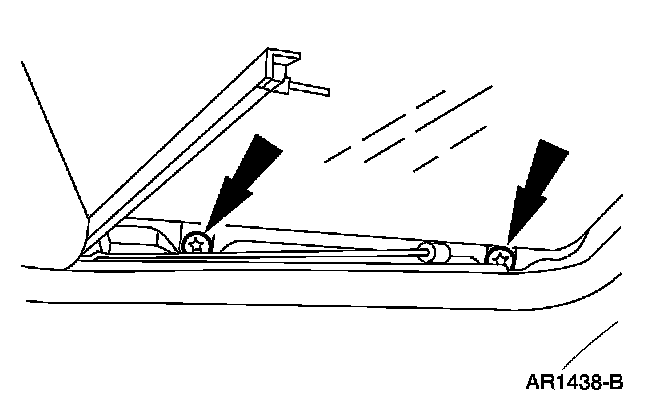

3. Remove the four roof opening panel glass screws (two each side).

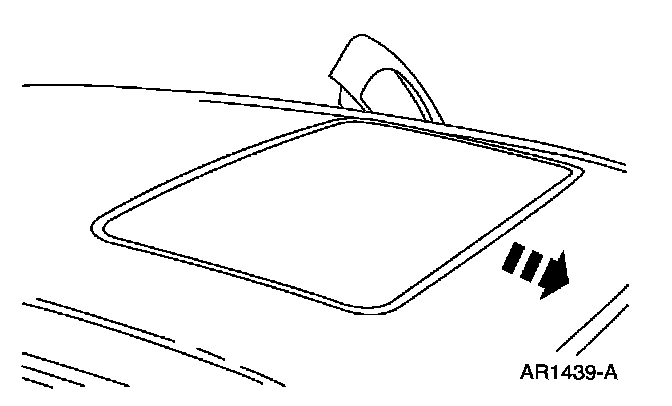

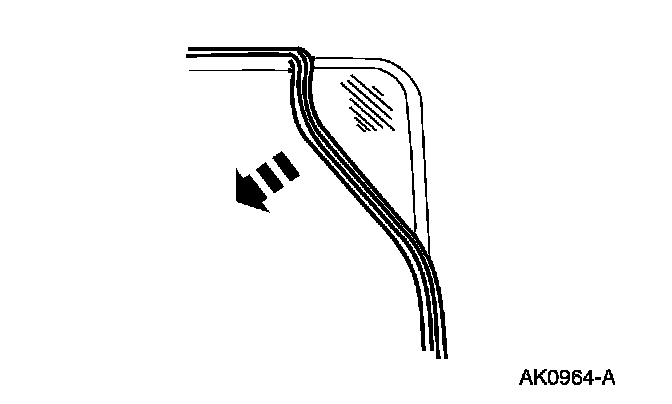

4. From outside the vehicle, lift the roof opening panel glass from the vehicle.







5. Remove the roof opening panel glass seal.

INSTALLATION







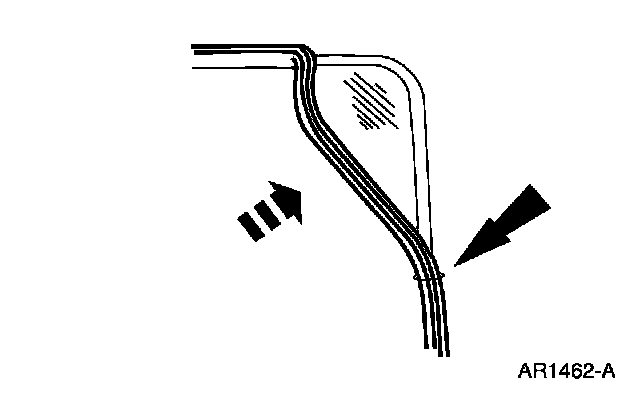

1. Install the roof opening panel glass seal.
- Position the roof opening panel glass seal seam in the center of the passenger side of the roof opening panel glass.

2. Install the roof opening panel glass.

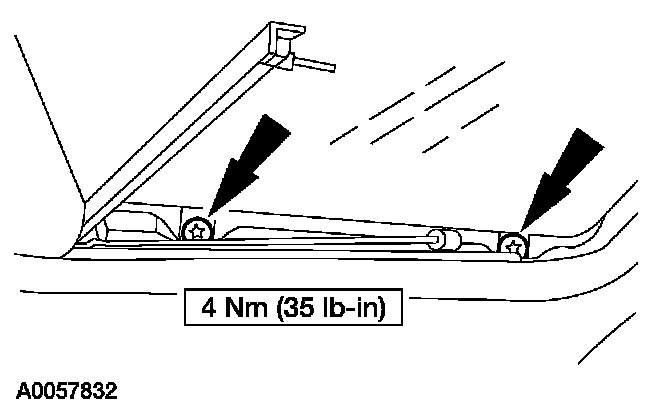

3. Tighten the four roof opening panel glass screws (two each side).







4. NOTE: Make sure to align the roof opening panel covers to the snap retainer prior to positioning into place.

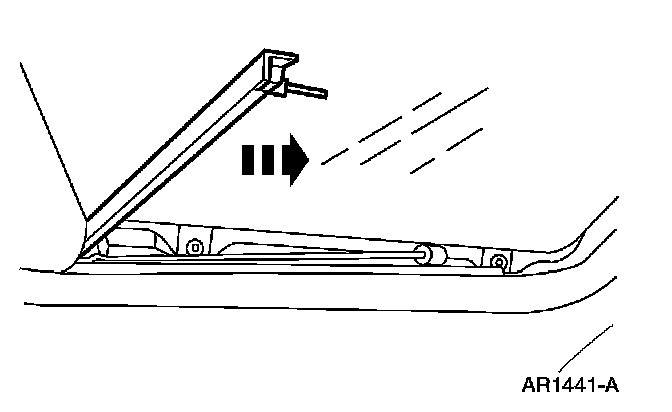

Install the LH and the RH roof opening panel covers.

5. Adjust the roof opening panel glass height.
