Roof Opening Panel

ROOF OPENING PANEL

REMOVAL
1. Remove the headliner.







2. Disconnect the drain tubes.







3. Position the electrical harness aside.

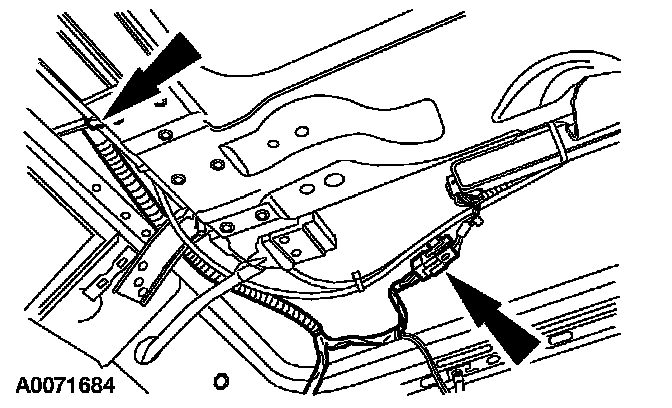

- Disconnect the electrical connector.
- Release the five harness retaining clips.







4. CAUTION: Support the roof opening panel.

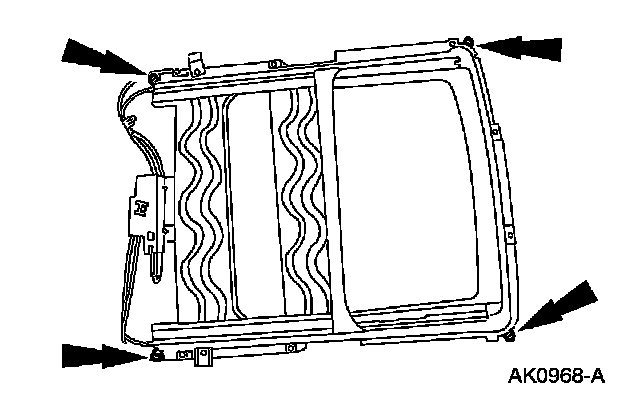

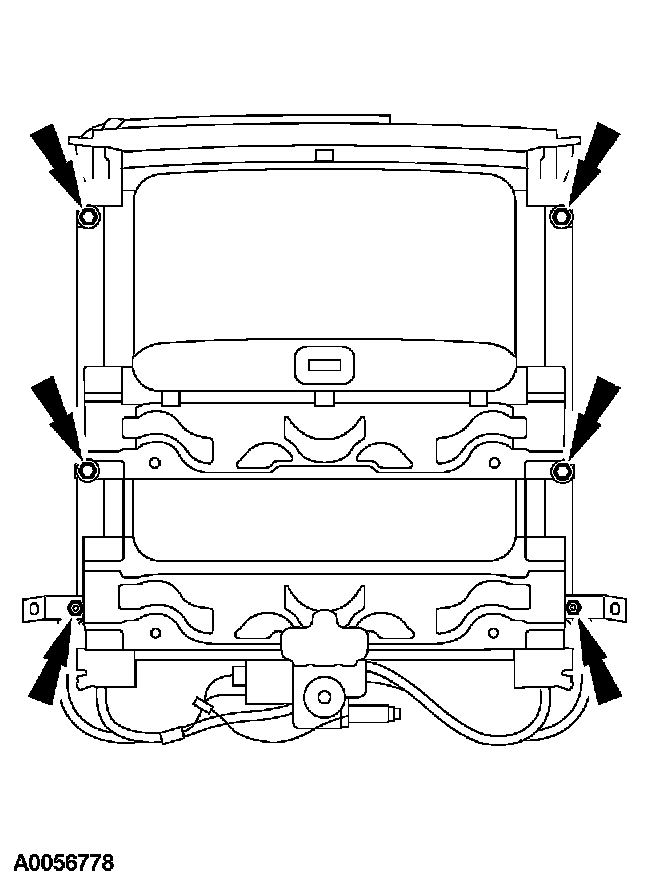

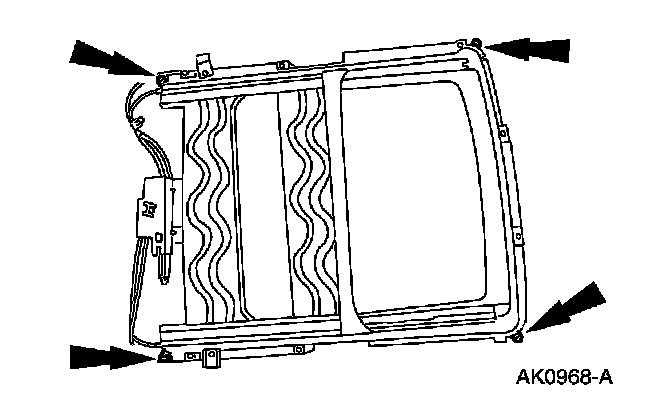

Remove the roof opening panel rail bolts and screws.

5. Remove the roof opening panel.

INSTALLATION
1. Transfer the necessary components.

2. NOTE: Make sure the electrical harness is not pinched by the roof opening panel rail.

Position the roof opening panel.

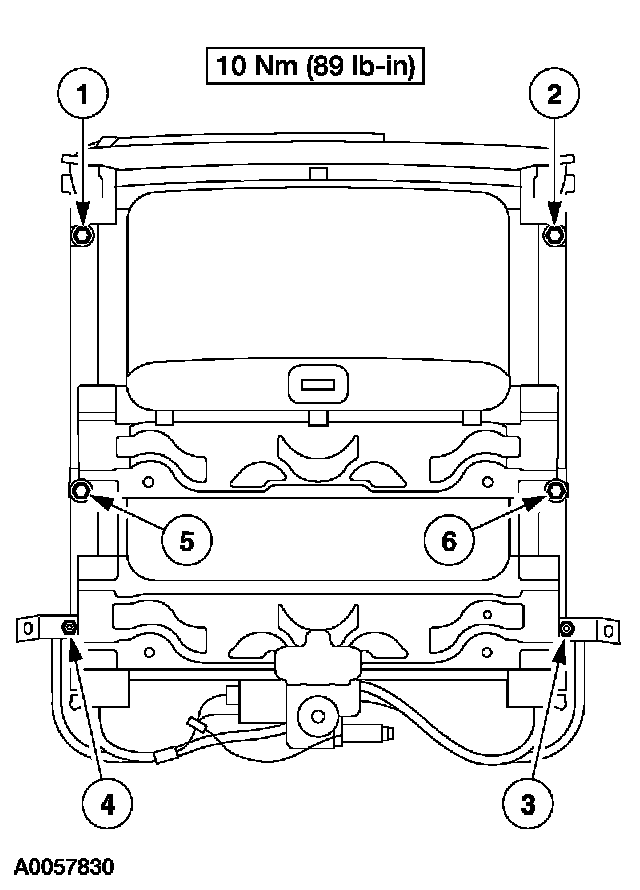

3. Install the roof opening panel rail bolts in the sequence shown.







4. Install the electrical harness.

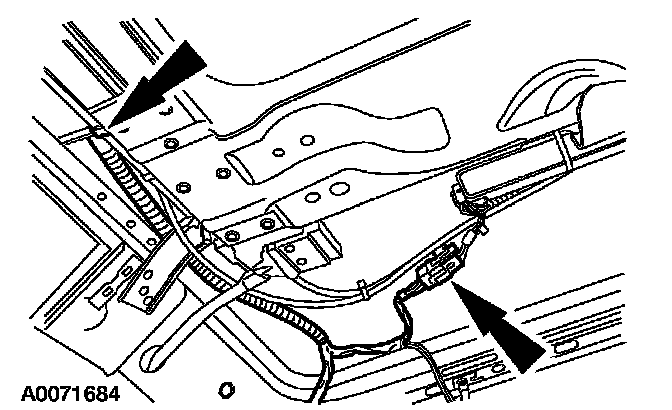

- Connect the electrical harness.
- Attach the five harness retaining clips.







5. Connect the drain tubes.
6. Install the headliner.
7. Adjust the roof opening panel glass height.
