PINPOINT TEST N: DTC B1300, DTC B1310, DTC B1396, DTC B1397 DOOR UNLOCK CIRCUIT FAILURE

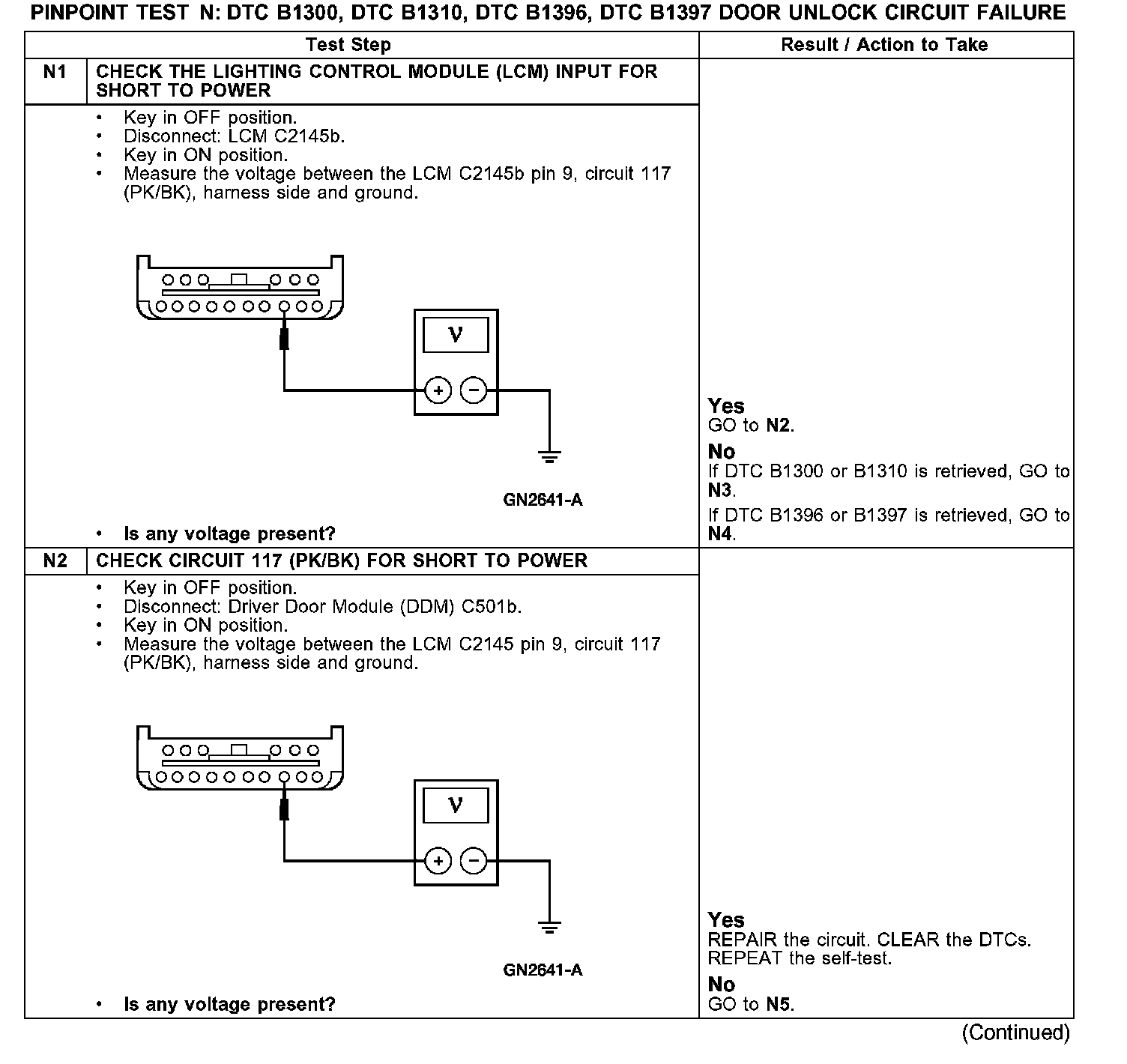

Test N1-N2:

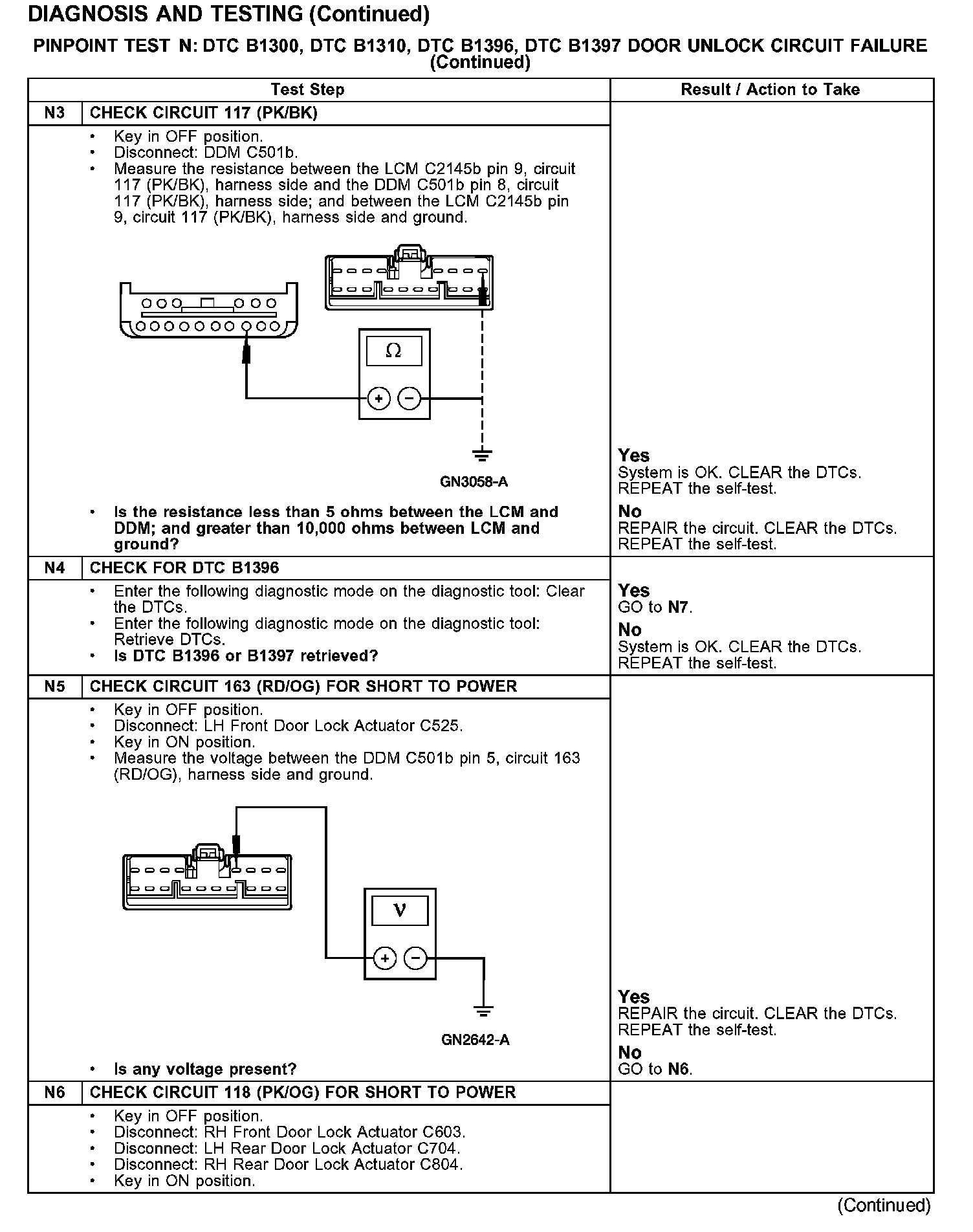

Test N3-N6:

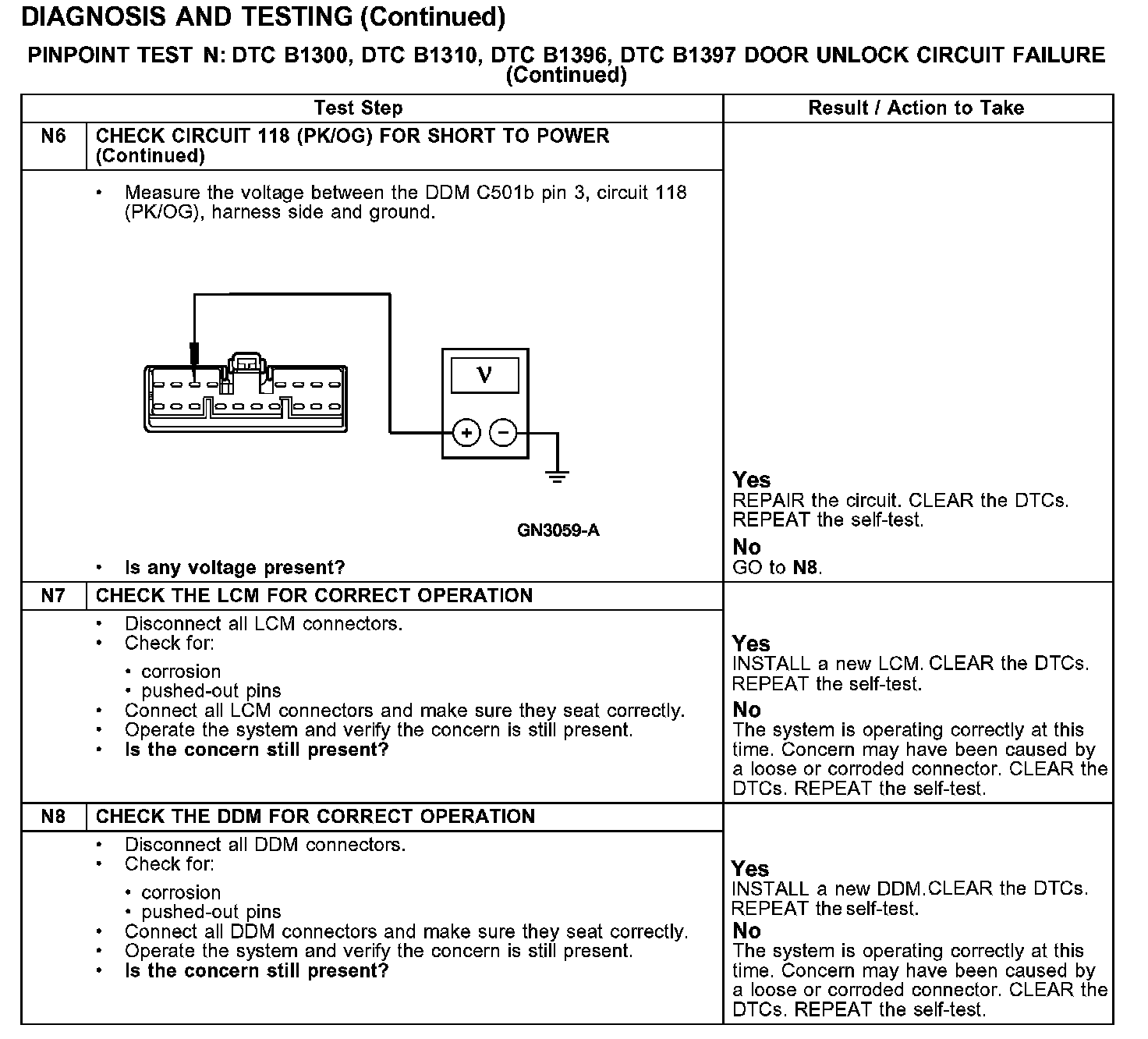

Test N5-N8:
