Test L
Test L
PINPOINT TEST L: DTC B1751 - PARK/NEUTRAL SWITCH CIRCUIT SHORT TO BATTERY (DRIVER DOOR MODULE [DDM])

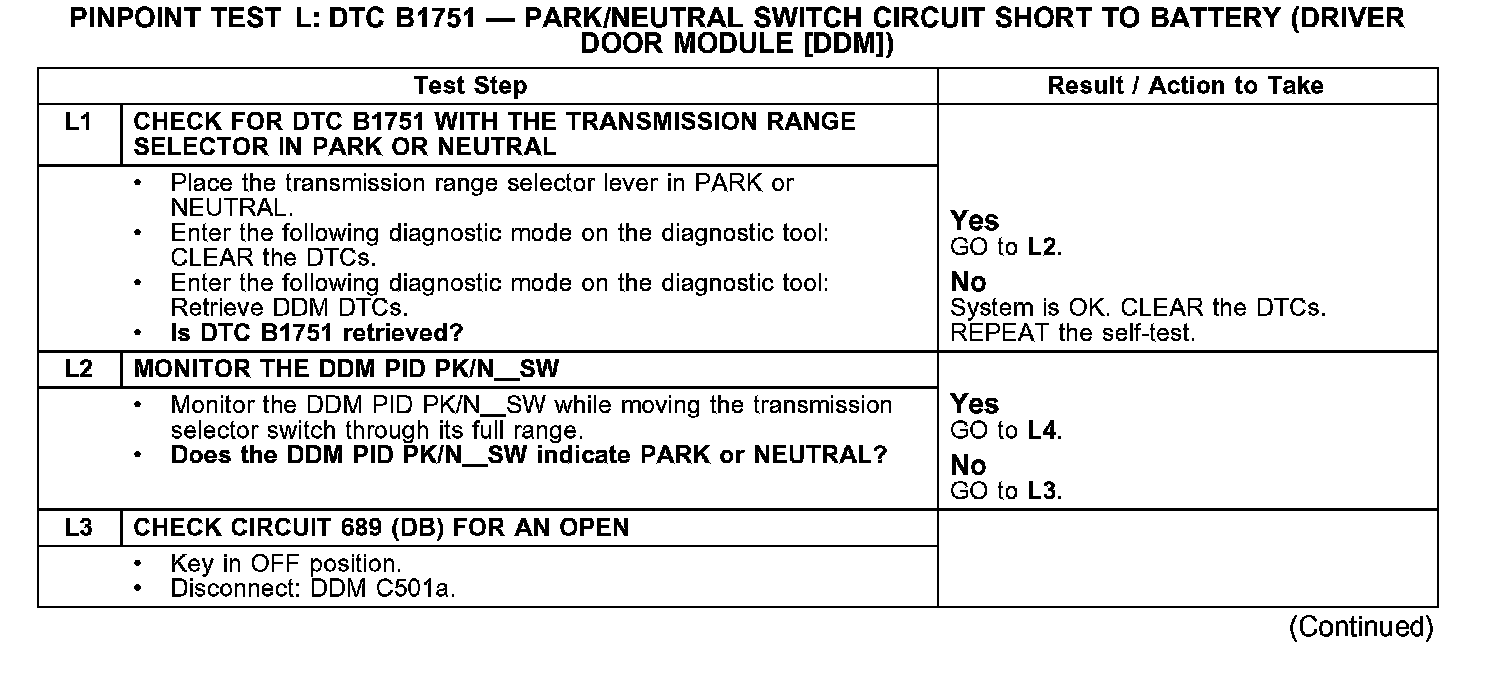

Test L1-L3:

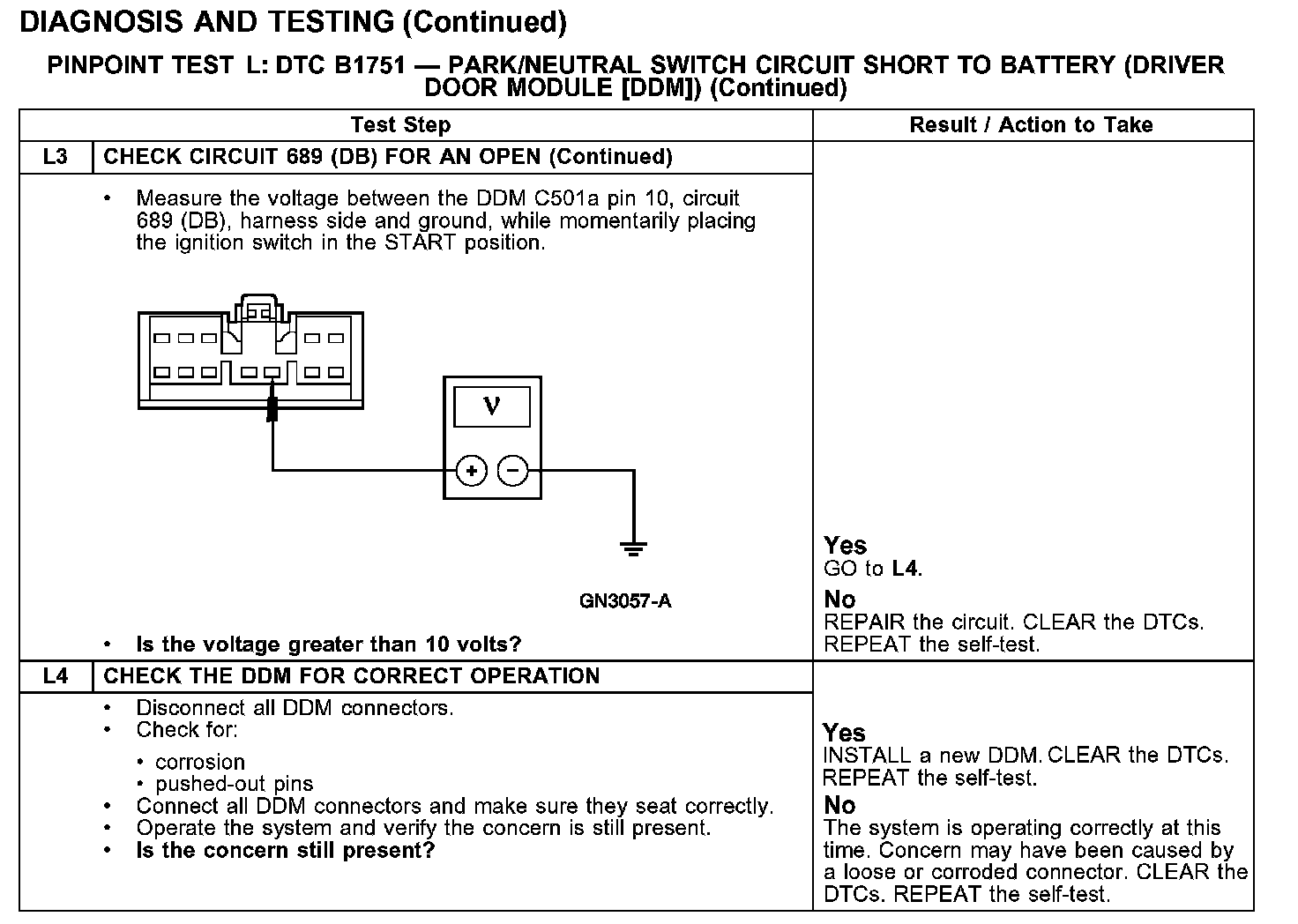

Test L3-L4:
