FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2004
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Module Controlled
>>
Test K
Test K
PINPOINT TEST K: THE
KEYLESS ENTRY
KEYPAD ILLUMINATION IS INOPERATIVE

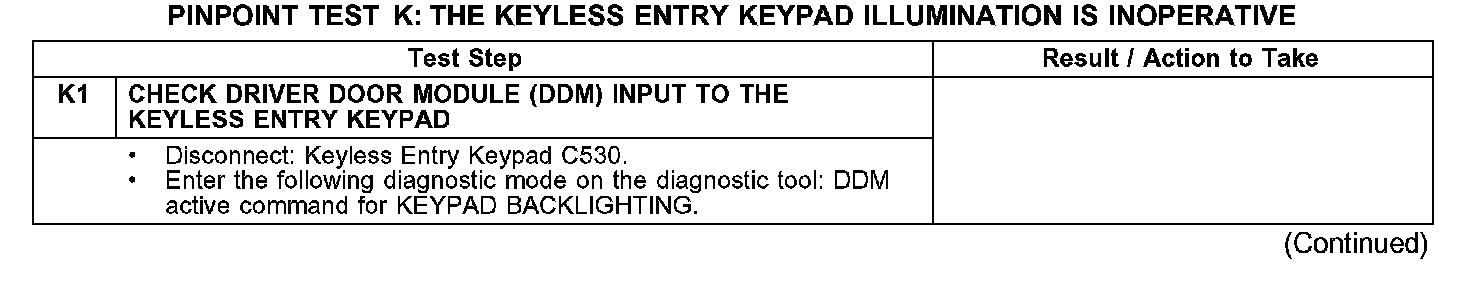

Test K1:

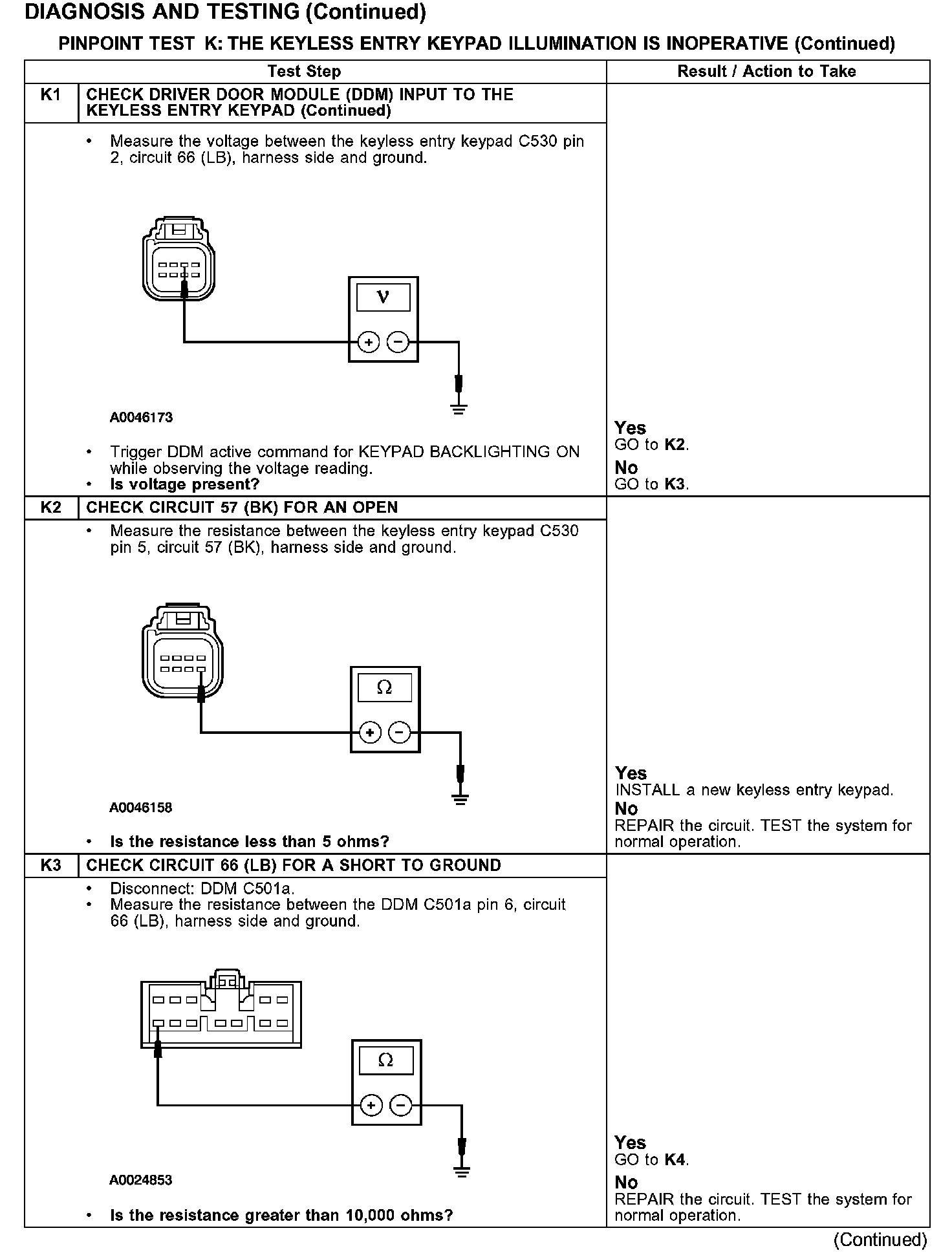

Test K1-K3:

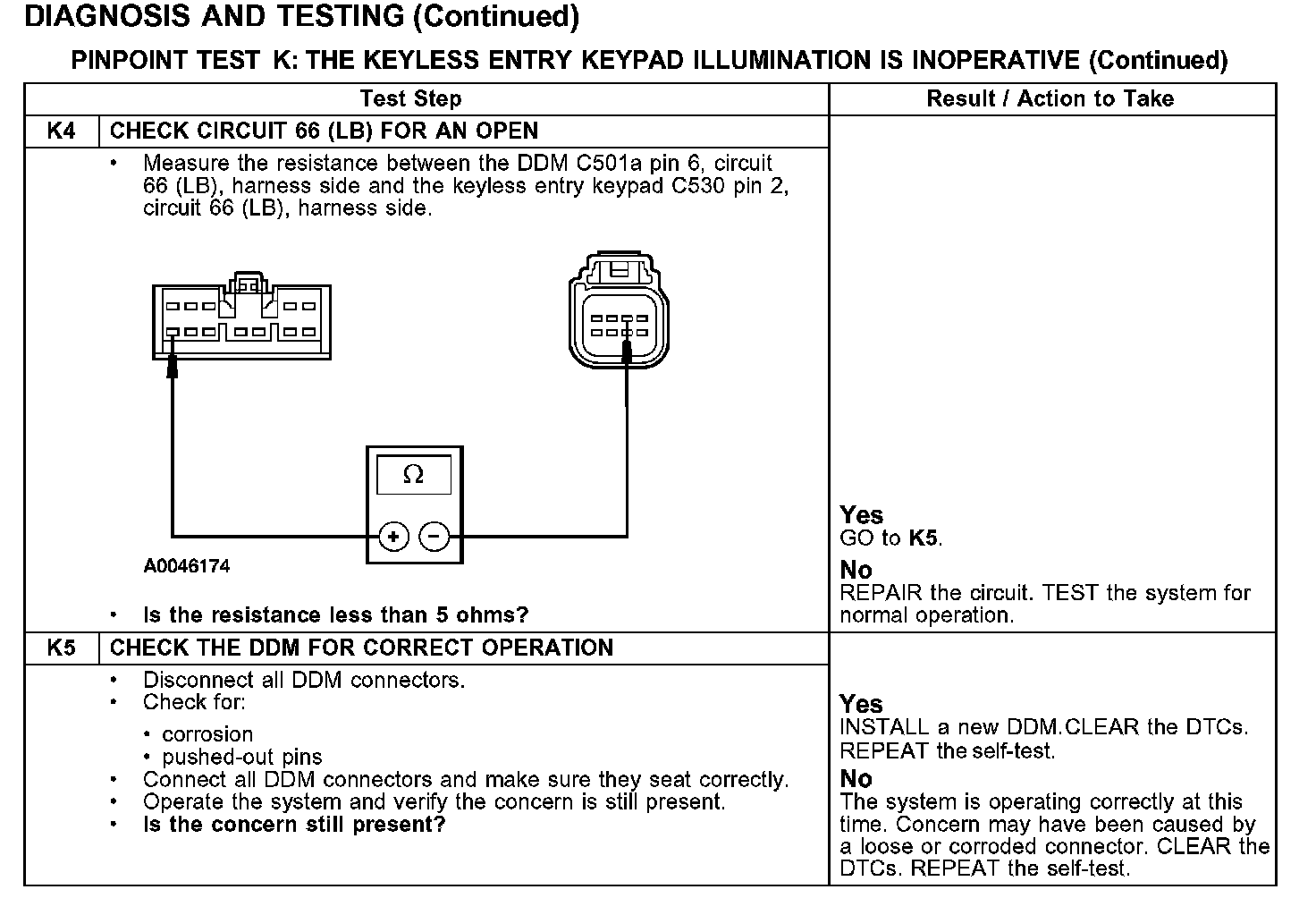

Test K4-K5:
