Power Door Lock Actuator: Service and Repair

DOOR LOCK ACTUATOR

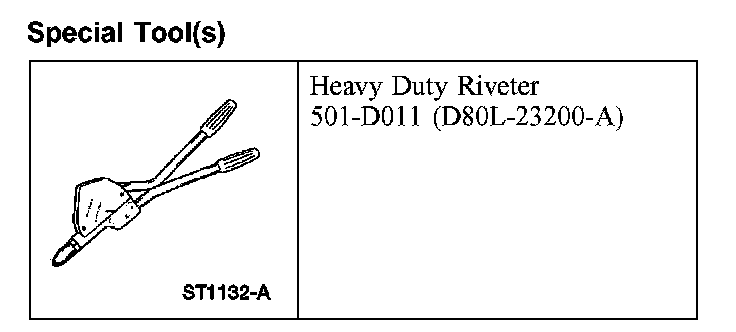

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL

Front door lock actuator
1. Remove the front door trim panel.
2. Position water shields aside.







3. Disconnect the door lock actuator electrical connector.

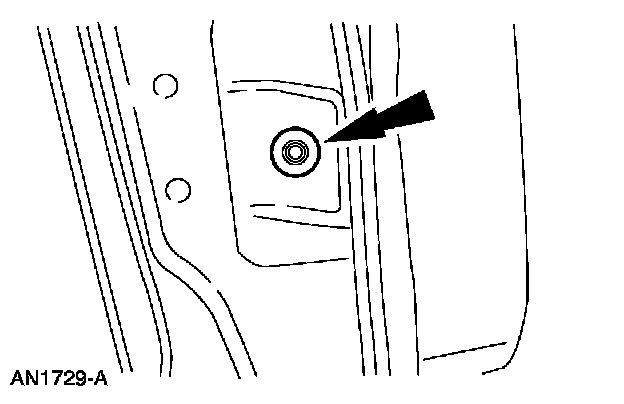

4. Remove the door lock actuator rivet.

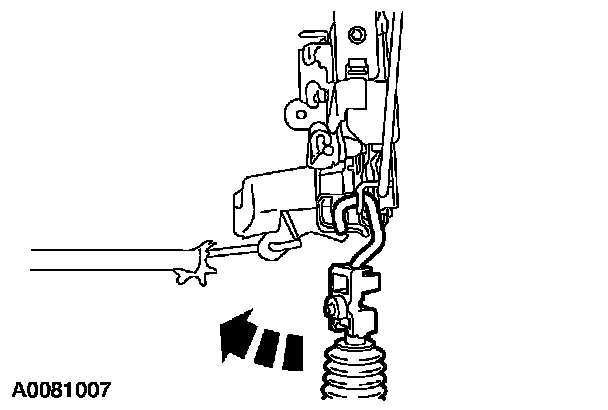

5. Remove the door lock actuator.

Rear door lock actuator
6. Remove the rear door latch.

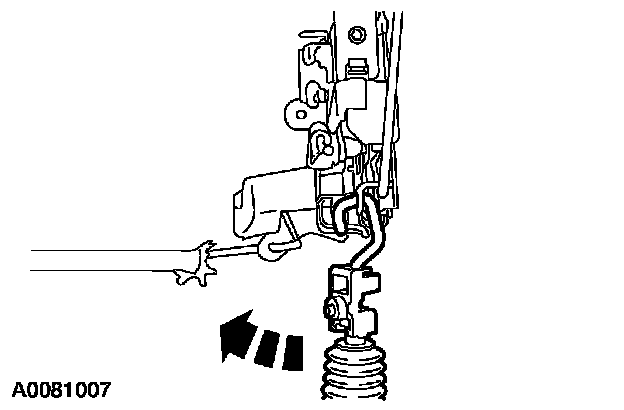

7. Remove the door lock actuator.

INSTALLATION

Both door lock actuators
1. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
