Rear Quarter Trim Panel

REAR QUARTER TRIM PANEL

REMOVAL
1. Remove the rear seat.

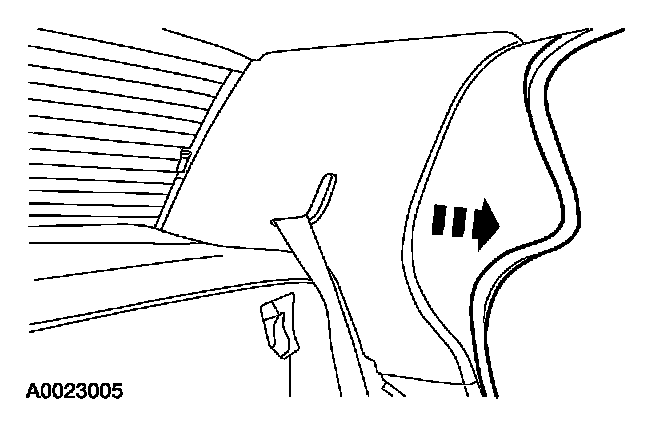

2. Position the rear door weatherstrip aside.

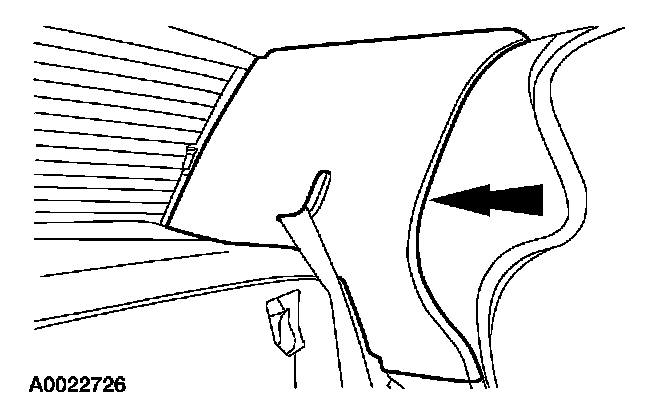

3. Remove the rear quarter trim panel.
- Slide the safety belt through the quarter trim panel opening.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
