Floor Console - Finish Panel

FLOOR CONSOLE - FINISH PANEL

REMOVAL

All vehicles
1. Apply the parking brake.
2. Place the transmission range selector lever in the 1 position.

Five passenger vehicles

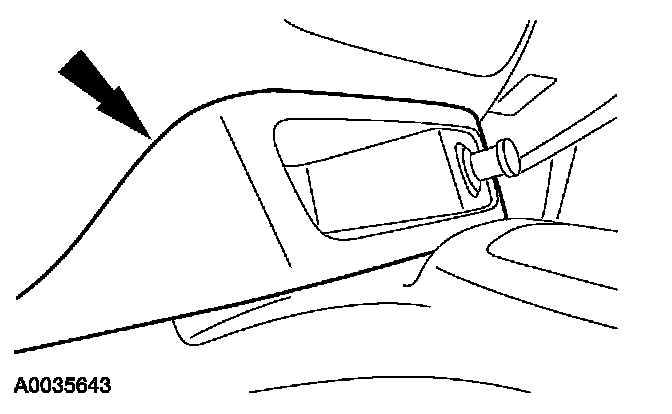

3. Remove the instrument panel center finish panel.
- Disconnect the electrical connector.

Marauder

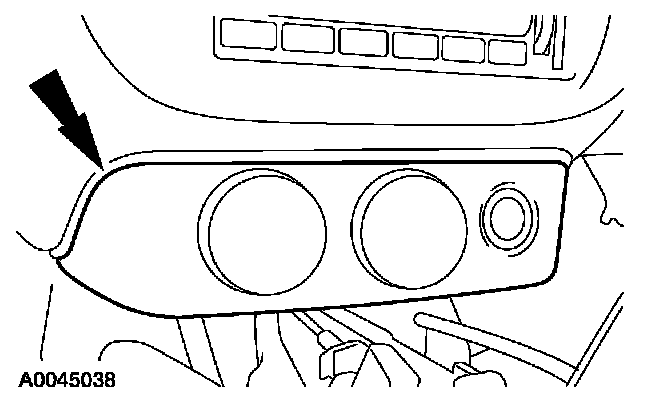

4. If equipped, remove the auxiliary gauge cluster.
- Disconnect the electrical connectors.

All vehicles

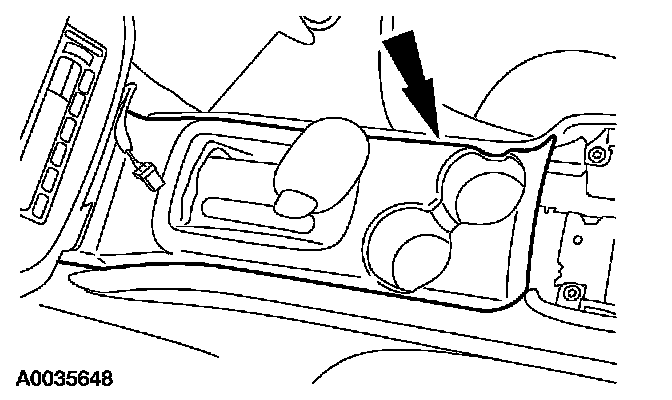

5. Release the floor console finish panel.

INSTALLATION
1. To install, reverse the removal procedure.
