Fender Splash Shield - RH

FENDER SPLASH SHIELD - RH

Removal and Installation
1. Remove the battery.
2. Remove the tire and wheel assembly.

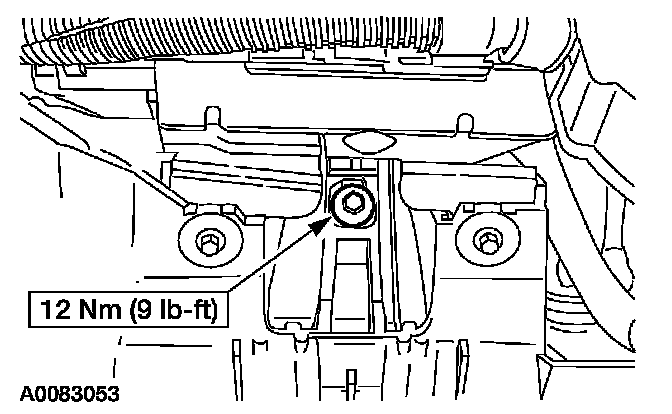

3. Remove the battery tray bolt.

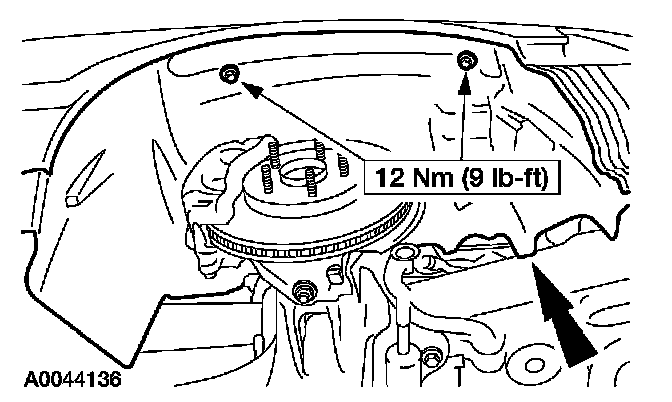

4. Remove the bolts and the fender splash shield.
5. To install, reverse the removal procedure.
