Fender Splash Shield - LH

FENDER SPLASH SHIELD - LH

Removal and Installation
1. Disconnect the battery.
2. Remove the washer pump and reservoir.

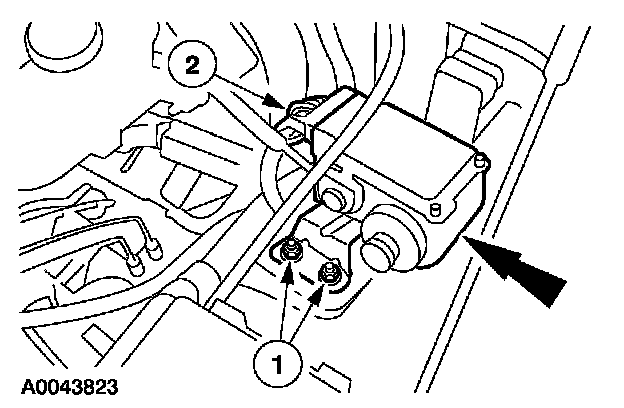

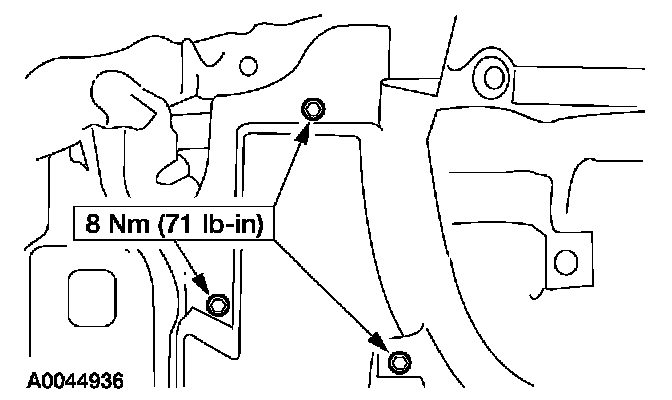

3. Position the speed control actuator aside.
1. Remove the nuts.
2. Disconnect the electrical connector.

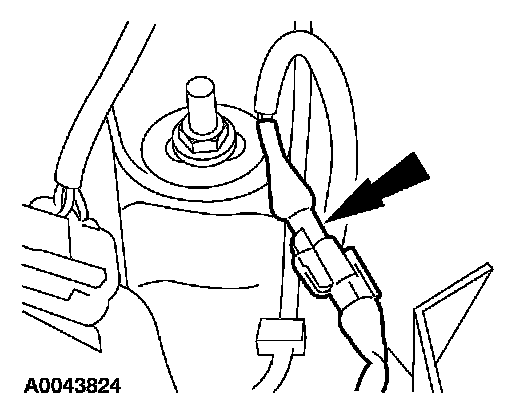

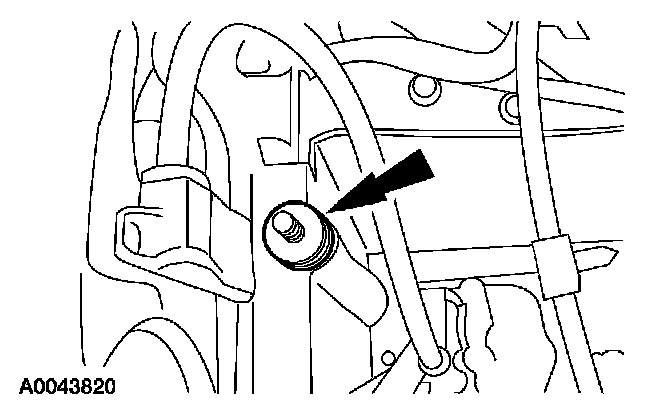

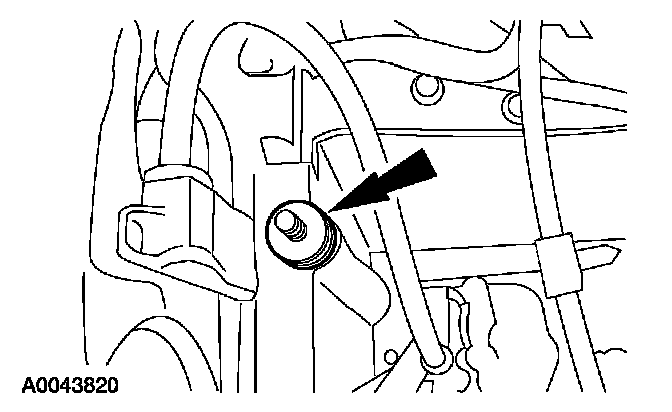

4. Disconnect the vacuum reservoir hose.

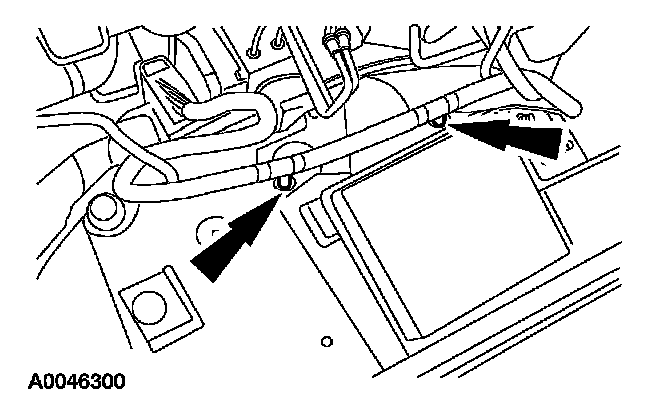

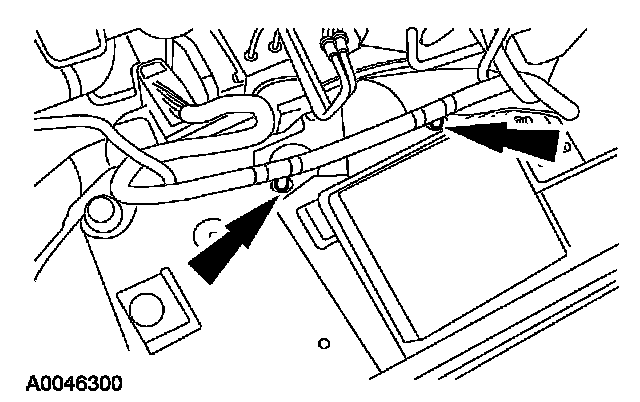

5. Release the wiring harness retainers from the splash shield.

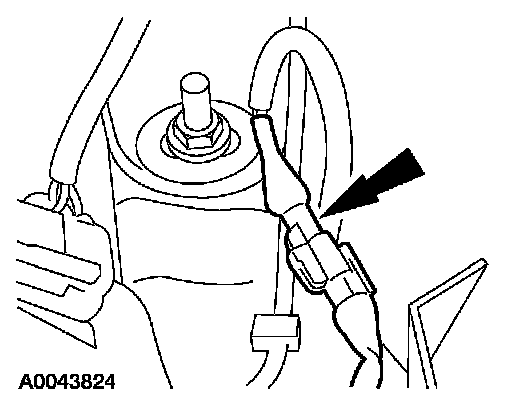

6. Disconnect the front ABS sensor wiring harness.

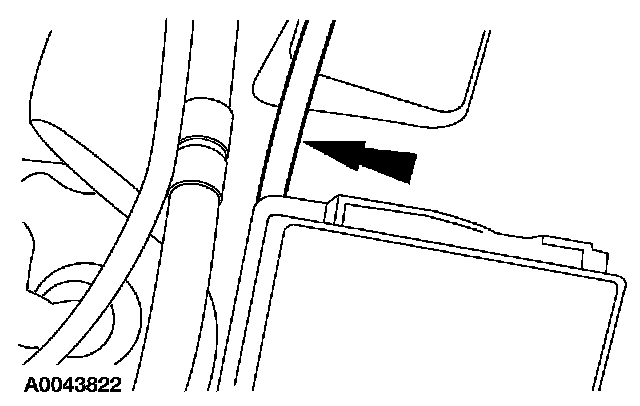

7. Remove the air cleaner mounting insulator.

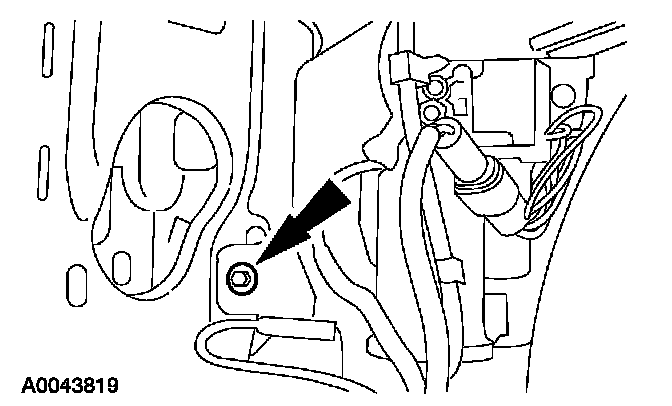

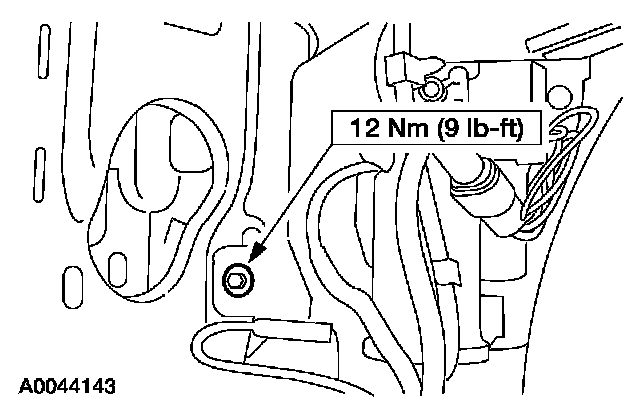

8. Remove the fender splash shield bolt.
9. Remove the tire and wheel assembly.

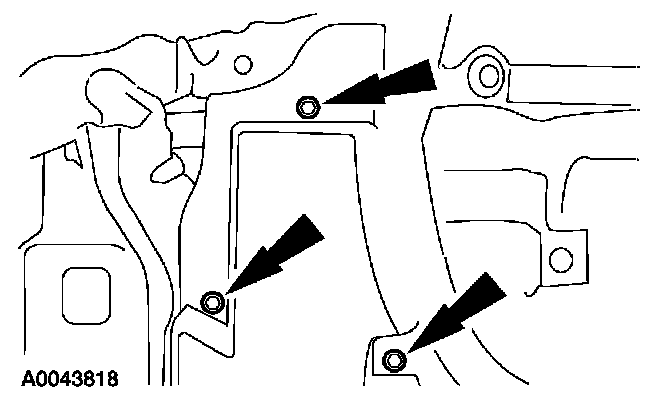

10. If equipped, remove the air compressor bracket nuts.

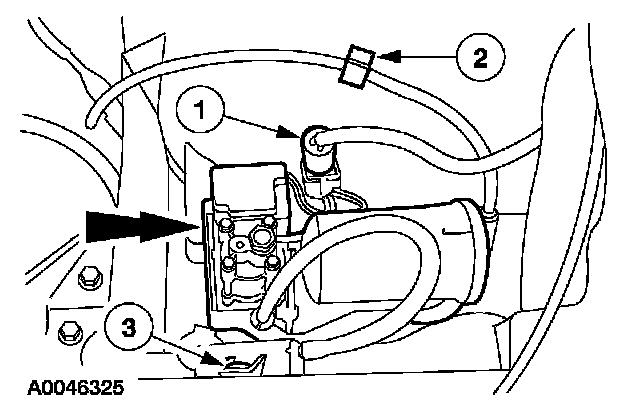

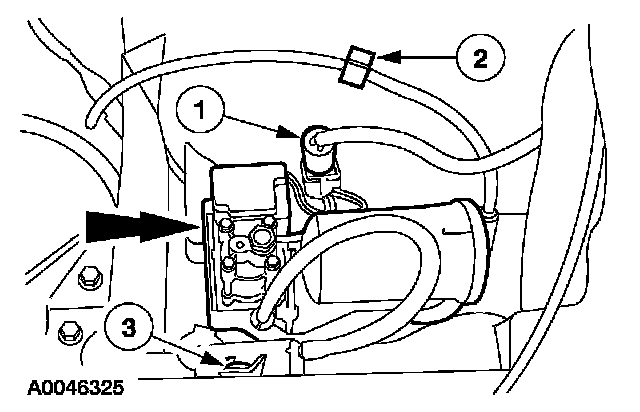

11. If equipped, position the air compressor aside.
1. Disconnect the electrical connector.
2. Release the air hose retainer.
3. Remove the pin-type retainer.

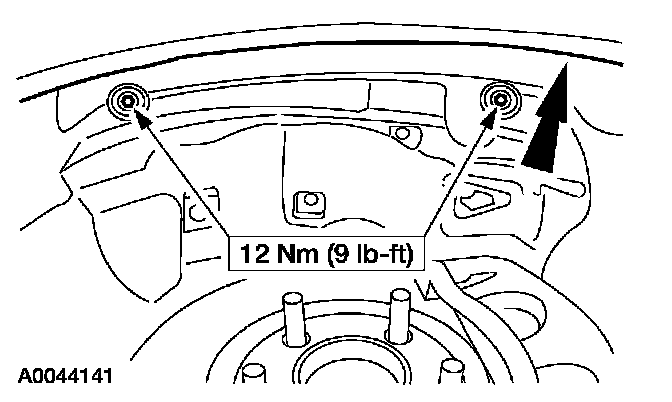

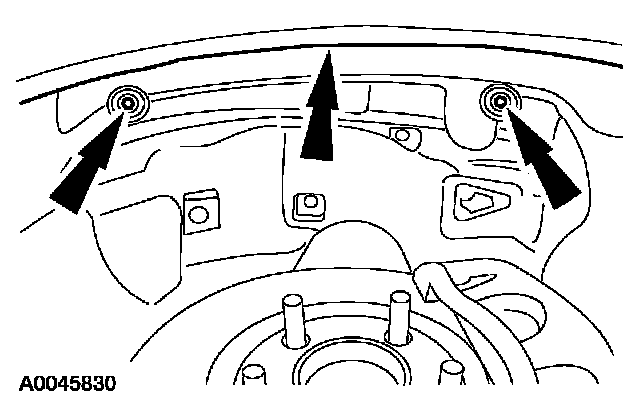

12. Remove the bolts and the fender splash shield.

Installation







1. Position the fender splash shield and install the bolts.







2. Install the fender splash shield bolt.







3. If equipped, install the air compressor.
1. Connect the electrical connector.
2. Connect the air hose retainer.
3. Install the pin-type retainer.







4. If equipped, install the air compressor bracket nuts.
5. Install the tire and wheel assembly.







6. Install the air cleaner mounting insulator.







7. Connect the front ABS sensor wiring harness.







8. Connect the vacuum reservoir hose.

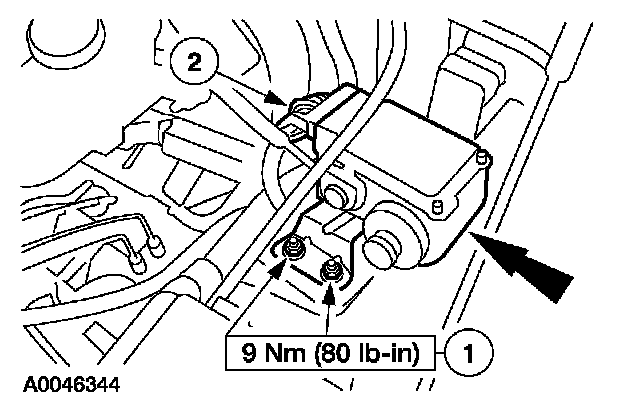

9. Position the speed control actuator.
1. Install the nuts.
2. Connect the electrical connector.







10. Connect the wiring harness retainers to the fender splash shield.
11. Install the washer pump and reservoir.
12. Connect the battery.
