Rear Door Panel: Service and Repair

REAR DOOR TRIM PANEL

REMOVAL

All vehicles
1. Disconnect the battery.







2. CAUTION: Use care not to damage the trim panel when removing.

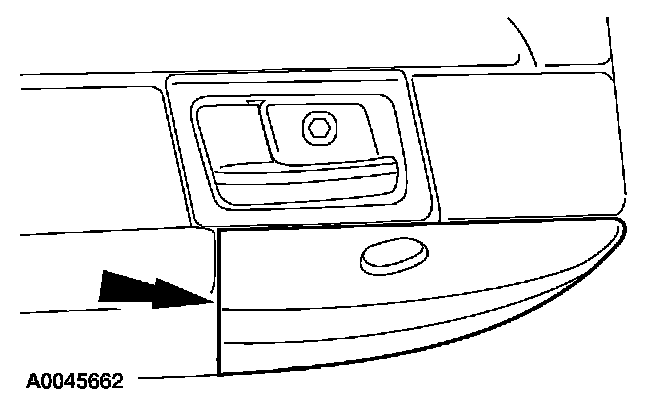

Lift the front of the window regulator switch plate from the rear door trim panel and remove the window regulator switch plate.
- Disconnect the electrical connector.

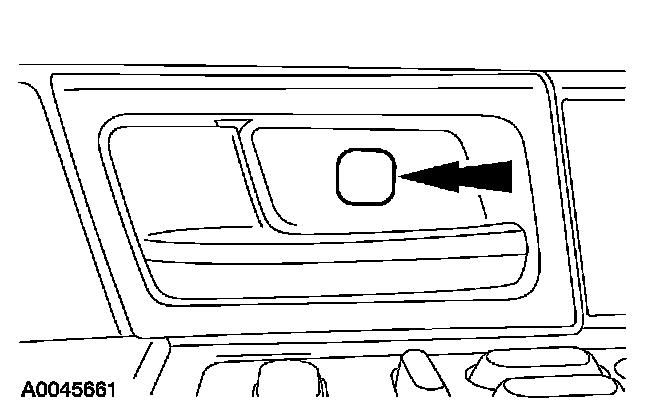

3. Remove the interior door handle cup cover.


All vehicles except long wheelbase

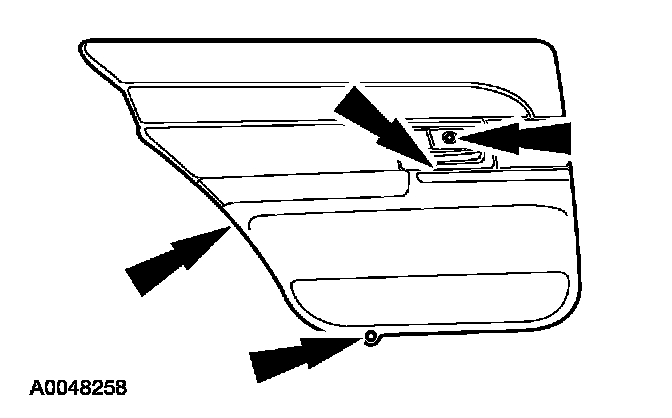

4. Remove the three screws and the rear door trim panel.

Long wheelbase vehicles

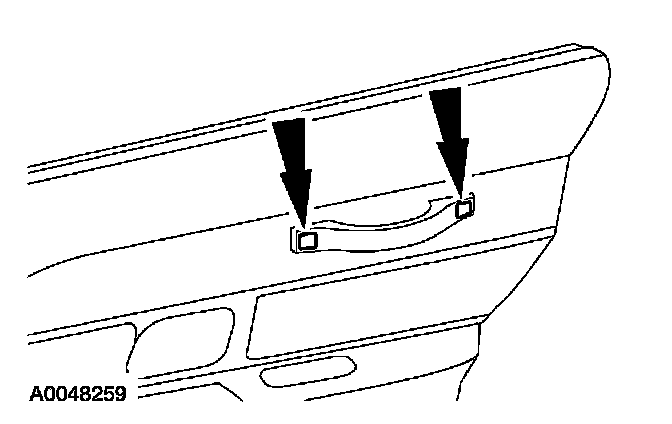

5. Remove the assist handle covers.

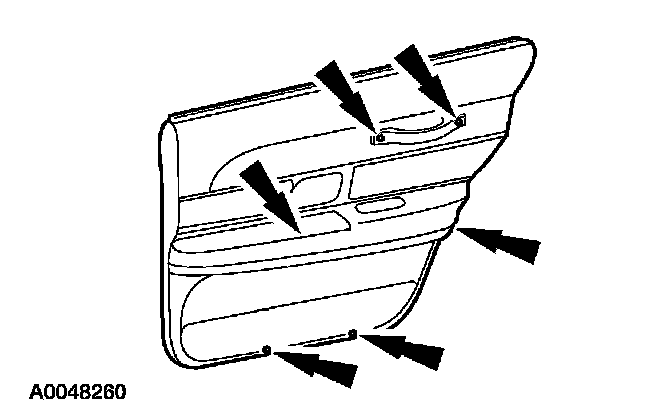

6. Remove the five screws and the rear door trim panel.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
