Front Door Latch: Service and Repair

FRONT DOOR LATCH

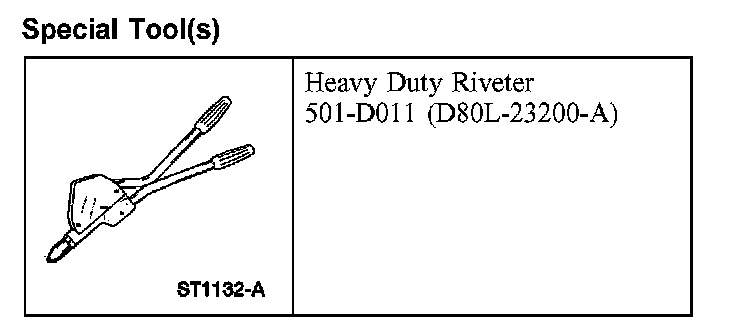

Heavy Dury Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the front door trim panel.
2. Position the watershield aside.







3. Remove the rivets and position the interior door handle remote control aside.







4. Open the clip and release the exterior door handle actuating rod.

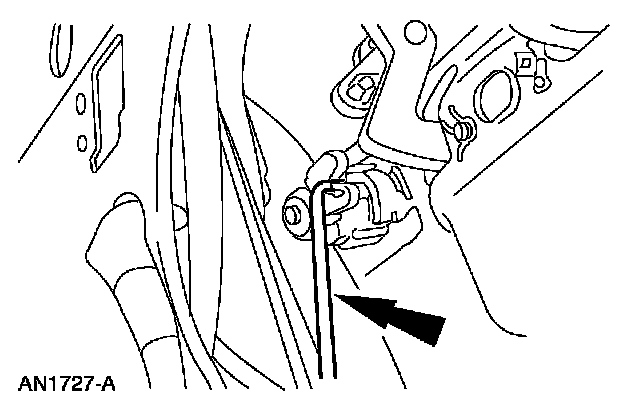

5. Disconnect the door lock cylinder actuating rod.

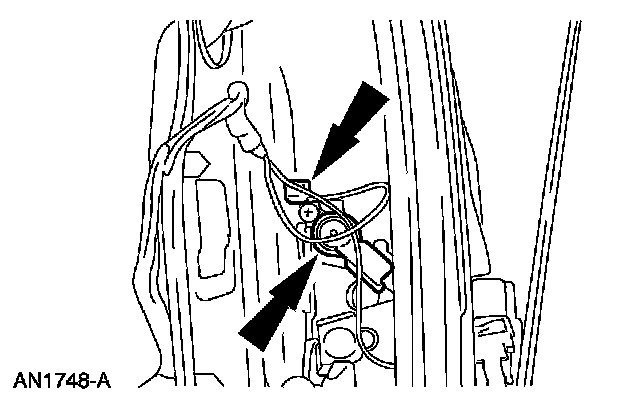

6. Disconnect the door ajar switch electrical connectors.

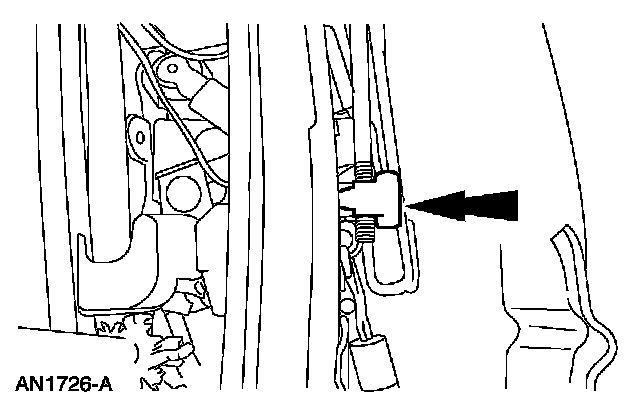

7. Disconnect the door lock actuator electrical connector.

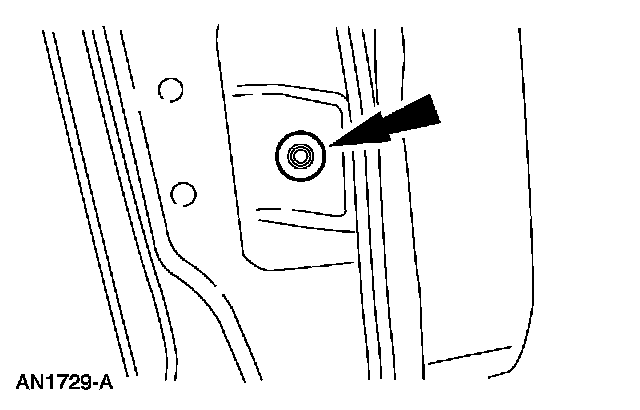

8. Remove the door lock rivet.

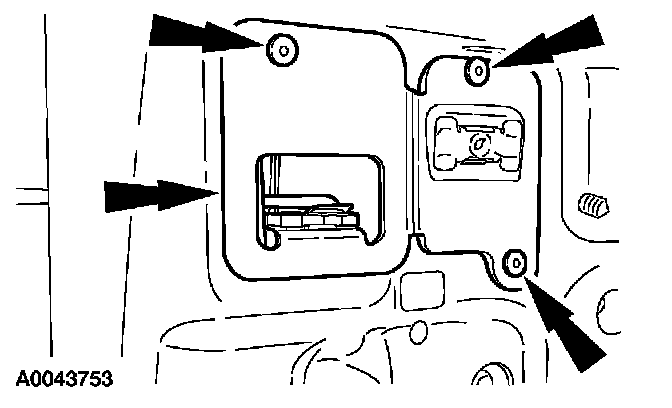

9. Remove the screws and the front door latch.

INSTALLATION
1. To install, reverse the removal procedure.
- Transfer parts as necessary.
