Bumper Isolator - Front

BUMPER ISOLATOR - FRONT

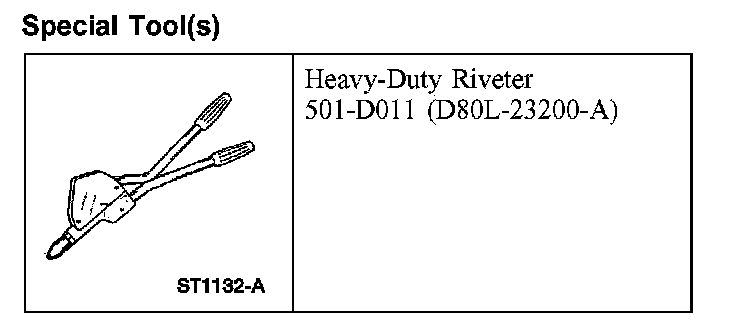

Special Tool(s):

Special Tool(s)

Removal and Installation

All vehicles
1. Remove the front bumper cover.

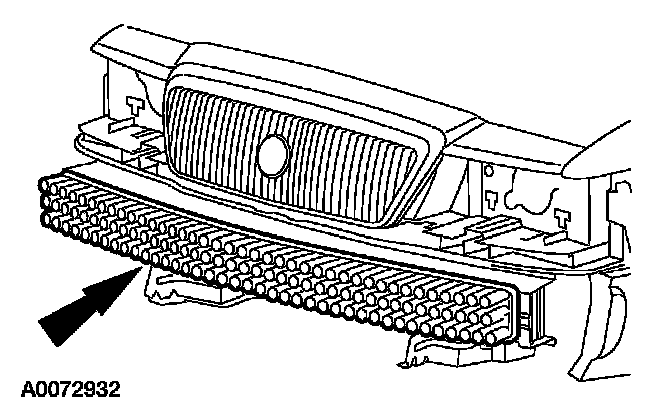

2. Remove the 5 rivets and the front bumper isolator.

Crown Victoria (vehicles built before 12/2003)

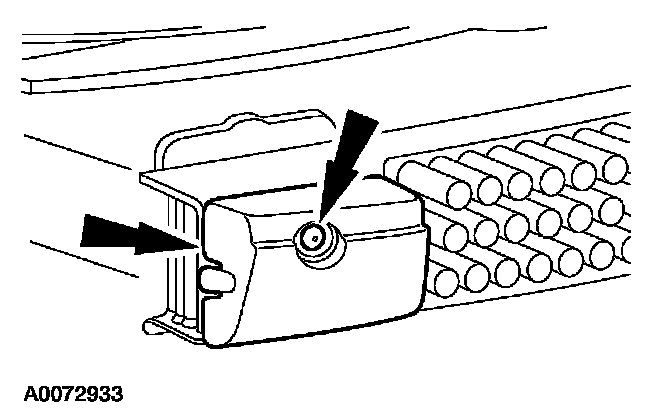

3. Remove the 2 rivets and the RH and LH outer isolators.

All vehicles
4. To install, reverse the removal procedure.
- Use the special tool to install the new rivets.
