Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE AIR SUSPENSION MODULE

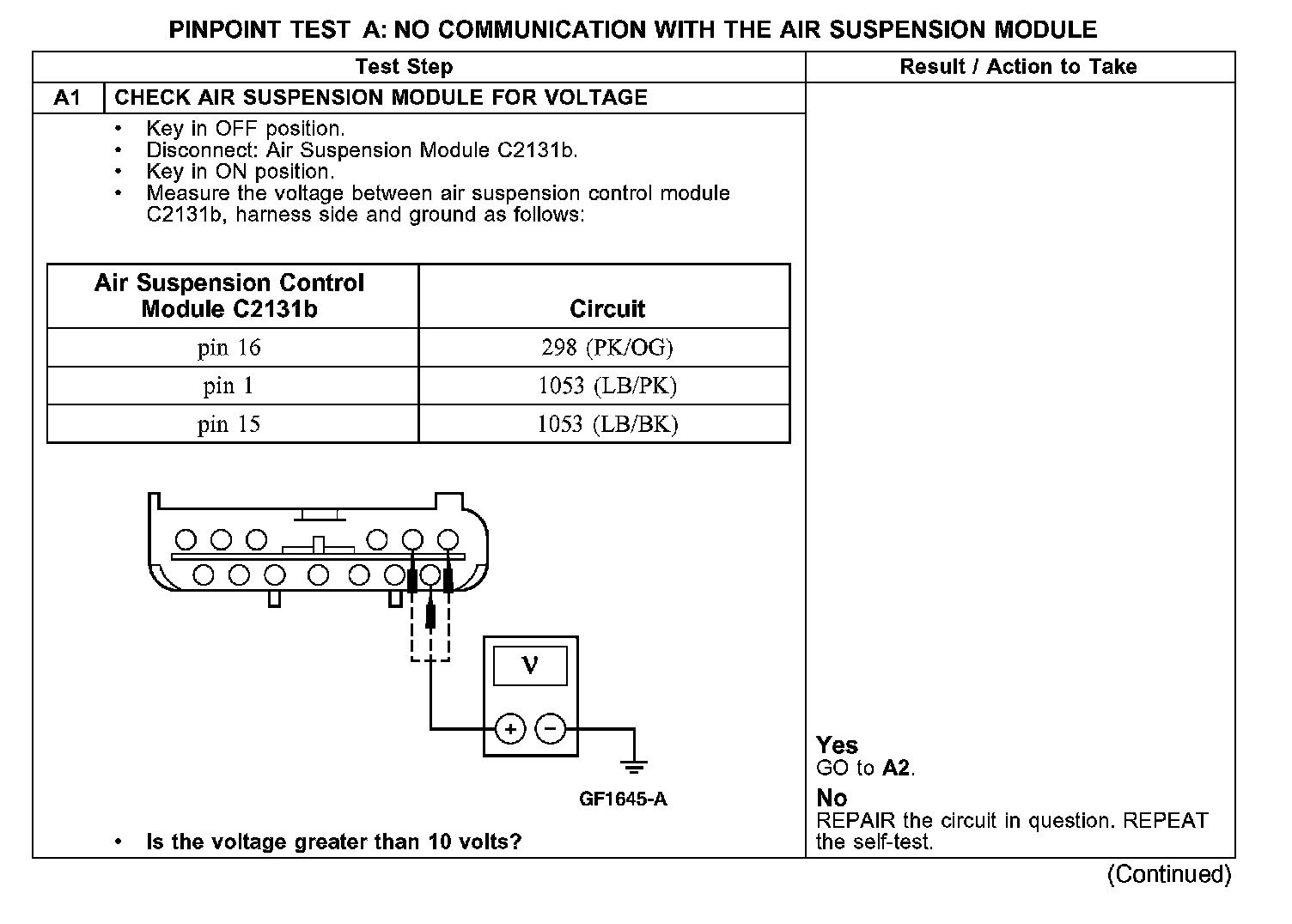

Test A1:

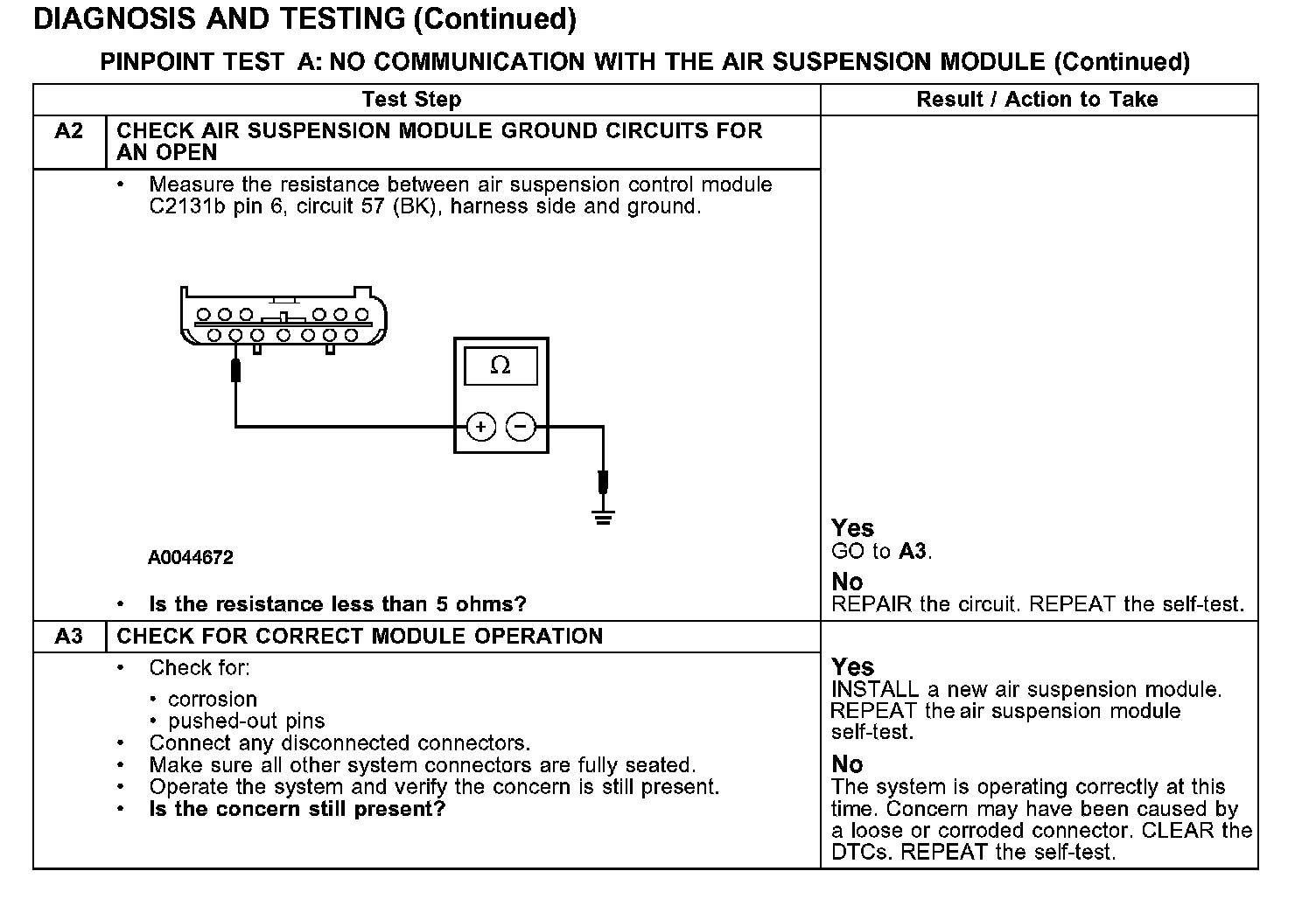

Test A2-A3:
