Test A
Test A
PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

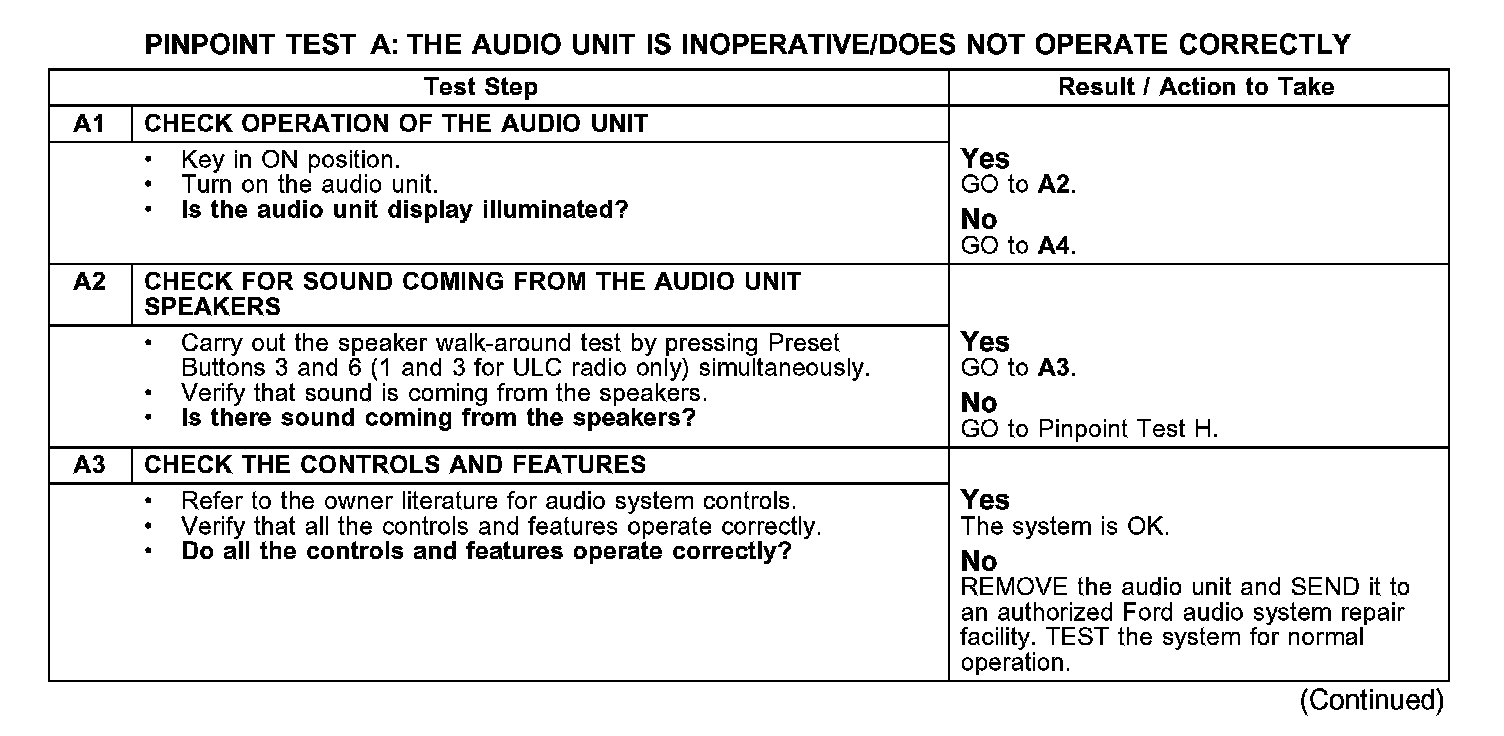

Test A1-A3:

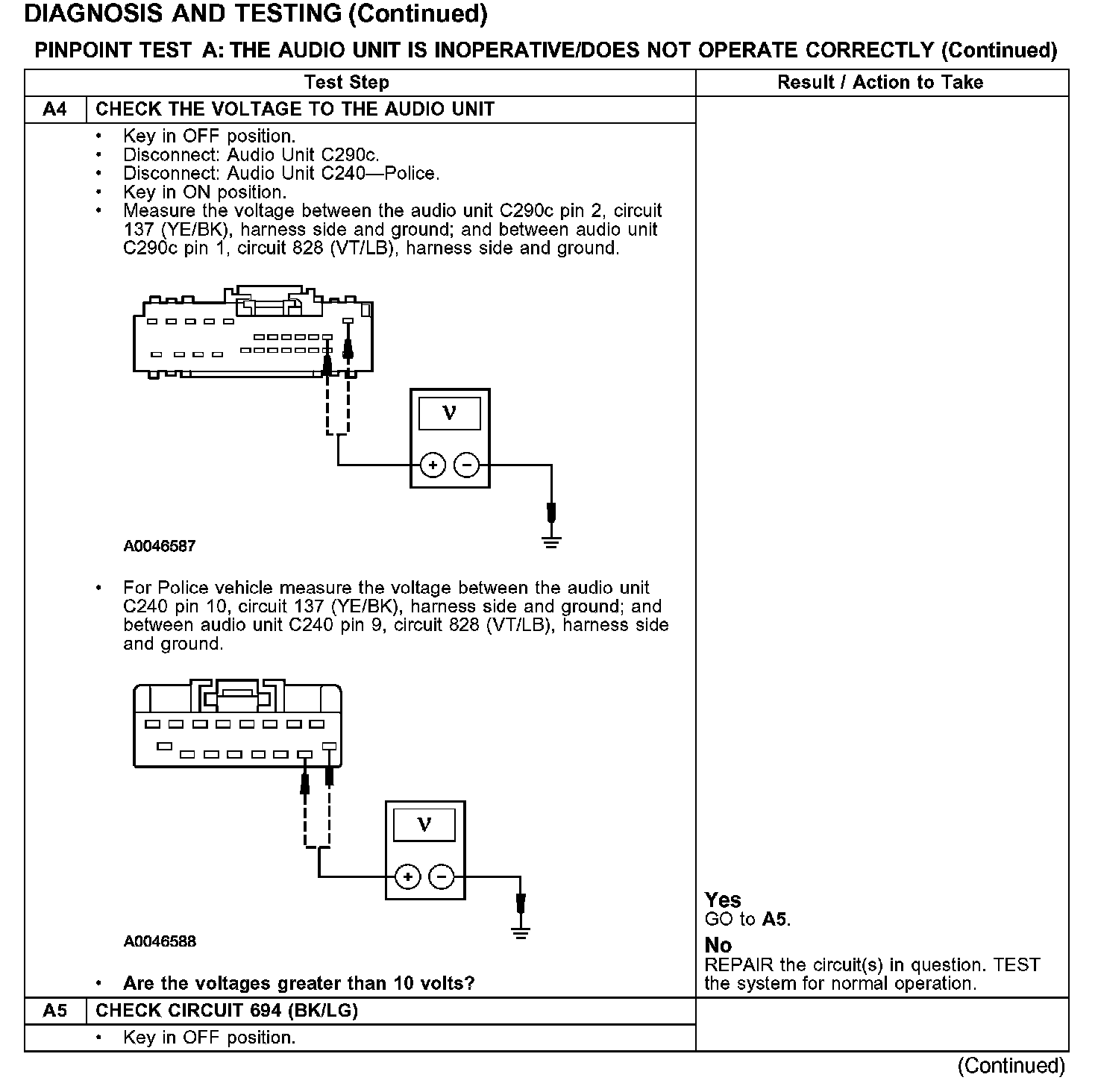

Test A4-A5:

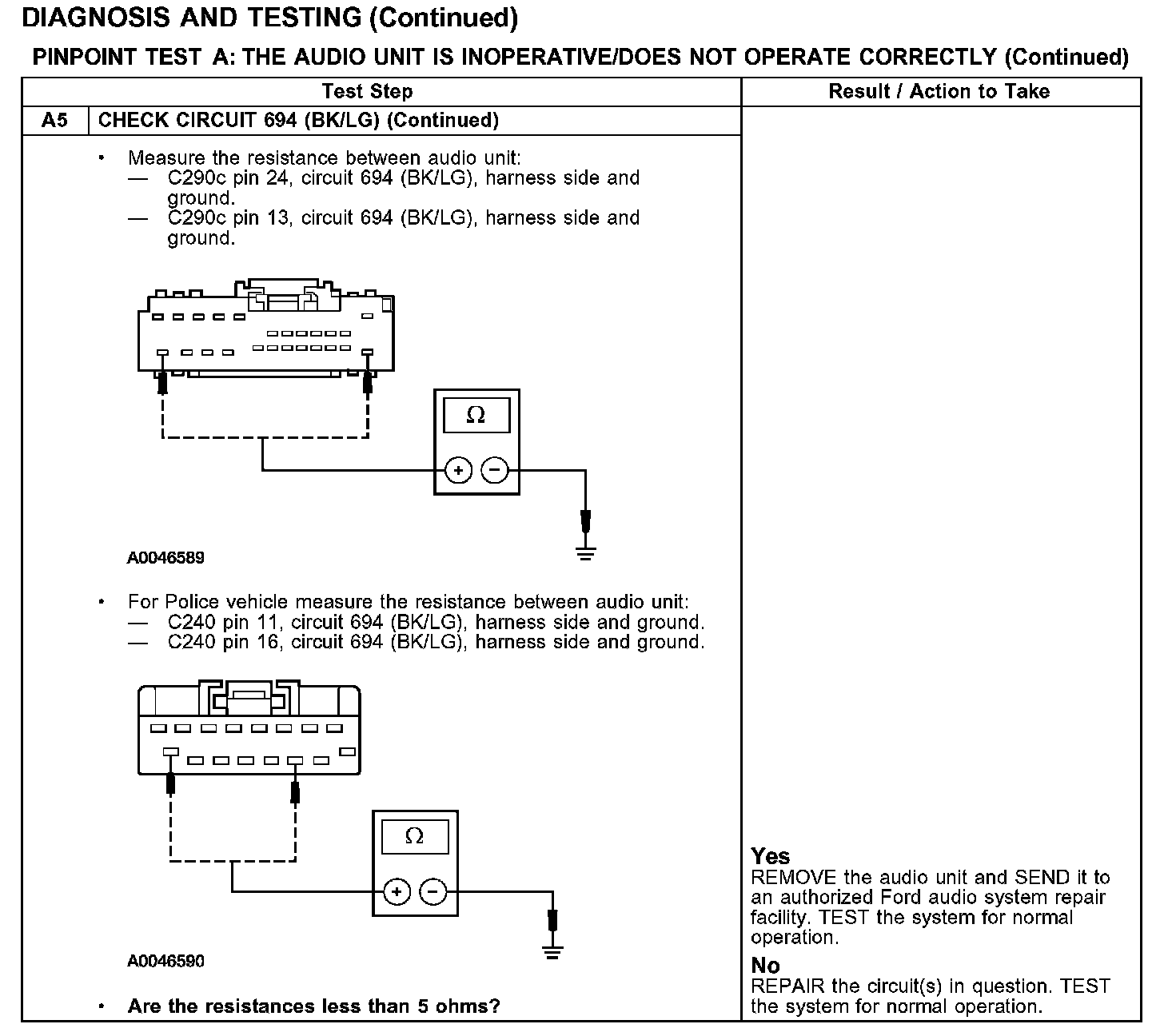

Test A5 Continued:
