Compact Disc (CD) Changer

COMPACT DISC (CD) CHANGER

REMOVAL
1. Disconnect the battery ground cable.
2. If equipped, position the luggage compartment cover aside.

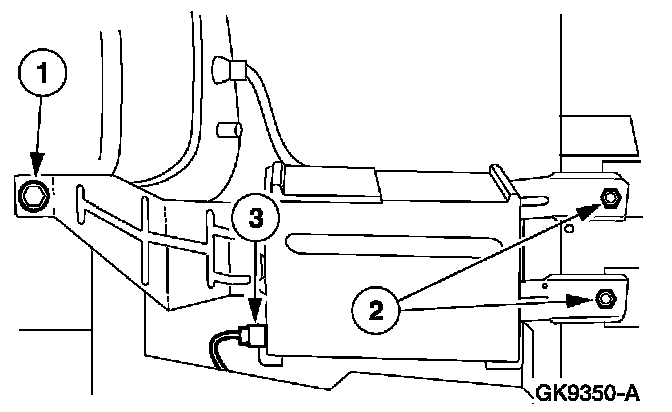

3. Remove the digital audio compact disc changer.
1 Remove the bolt.
2 Remove the nuts.
3 Disconnect the electrical connector.

4. Remove the digital audio compact disc changer brackets.
- Remove the six bolts and two brackets.

INSTALLATION
1. To install, reverse the removal procedure.
