Alarm System Transponder: Service and Repair

MODULE - PASSIVE ANTI-THEFT TRANSCEIVER

REMOVAL
1. Disconnect the battery ground cable.

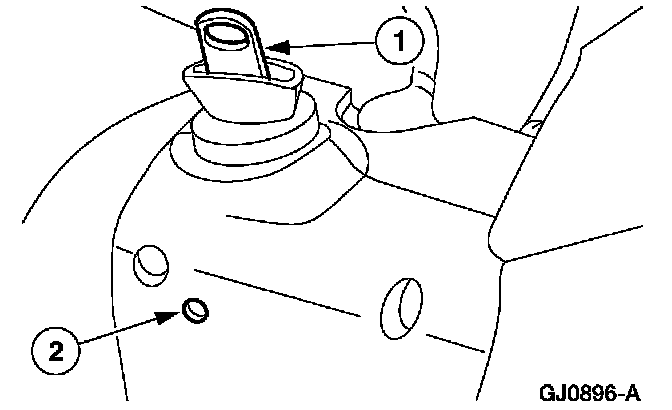

2. Remove the ignition switch lock cylinder.
1 Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
2 Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.

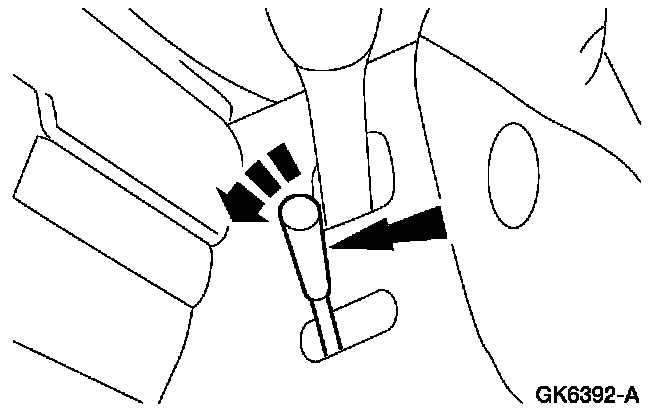

3. Twist the tilt wheel handle and shank and remove.

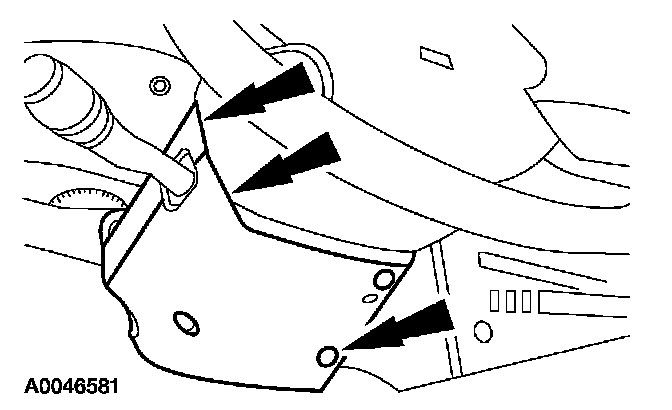

4. Remove the upper and lower steering column shrouds.
- Remove the screws.

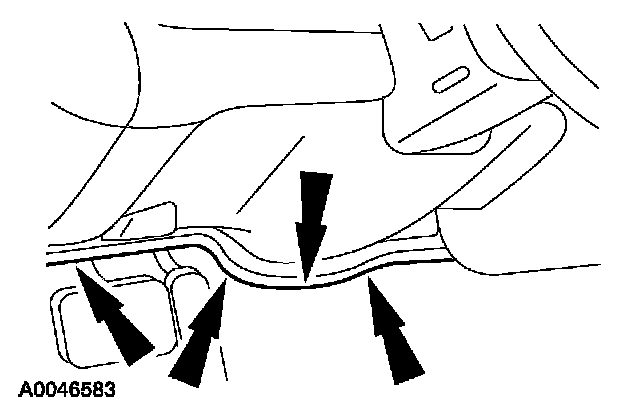

5. Position the LH instrument panel insulator aside.
- Remove the three pin-type retainers.

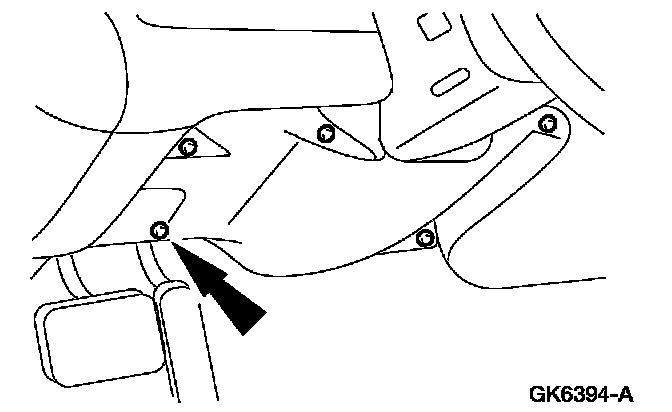

6. Remove the lower instrument panel steering column cover.
- Remove the screws.
- Unhook the parking brake release handle and position aside.

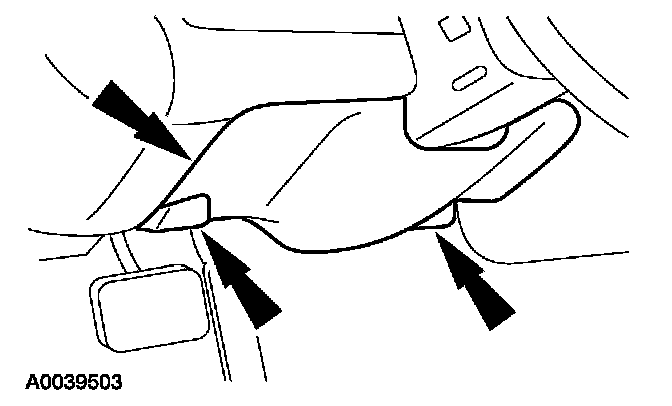

7. Remove the bolts and the instrument panel steering column opening cover reinforcement.

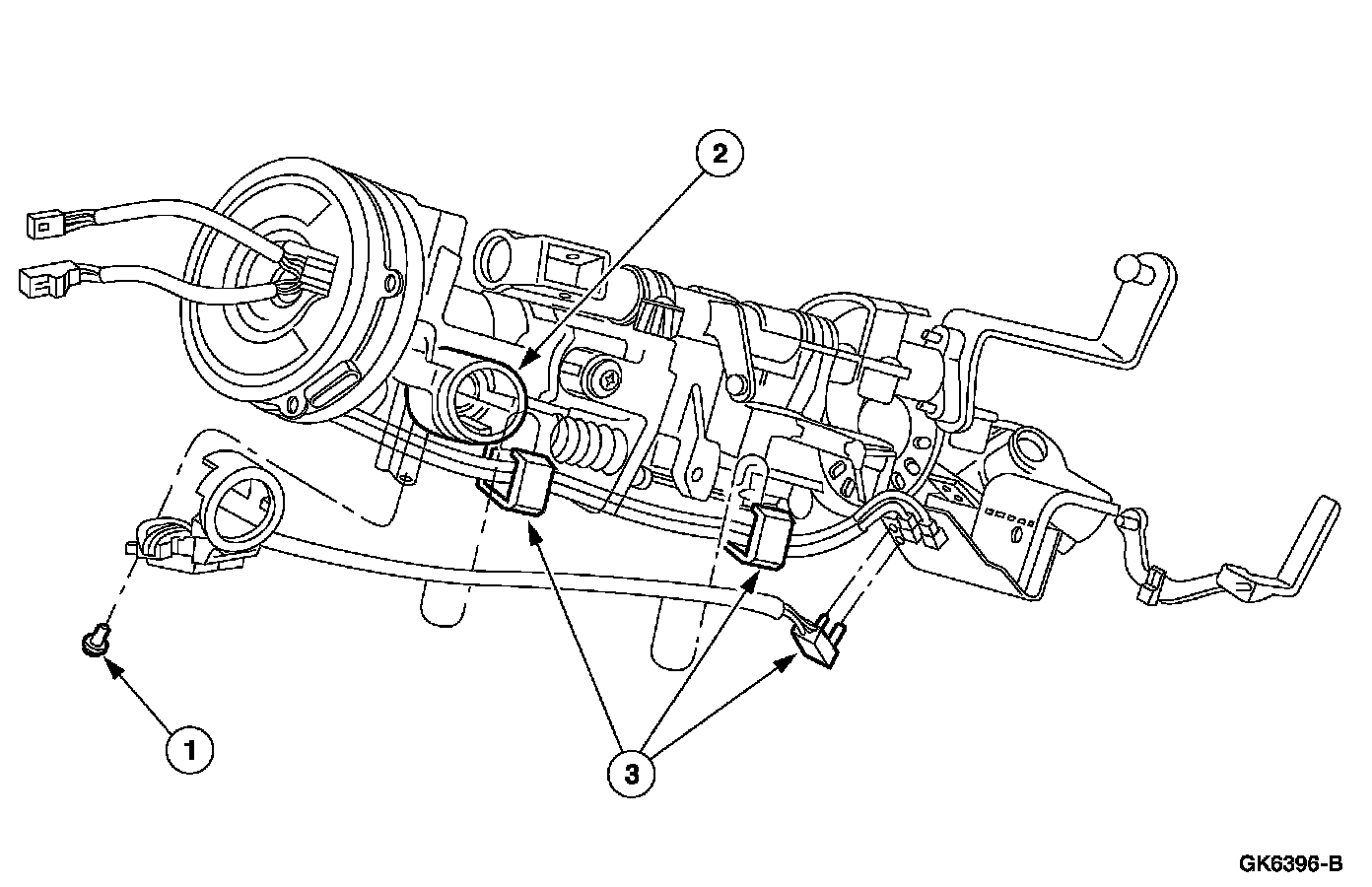

8. Remove the transceiver assembly.
1 Remove the screw.

2 NOTE: Only apply pressure below the key cylinder rib.

Release the transceiver over the rib on the lock cylinder housing.

3 Disconnect the electrical connector locator and electrical connector.

INSTALLATION

1. NOTE: No key re-initialization needs to occur with the removal or installation of a new PATS transceiver.

To install, reverse the removal procedure.
