Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4F50N (AX4N) Automatic Transaxle >> Shift Concerns >> 211/311: Timing - Early/Late

211/311: Timing - Early/Late

SHIFT CONCERNS: TIMING - EARLY/LATE

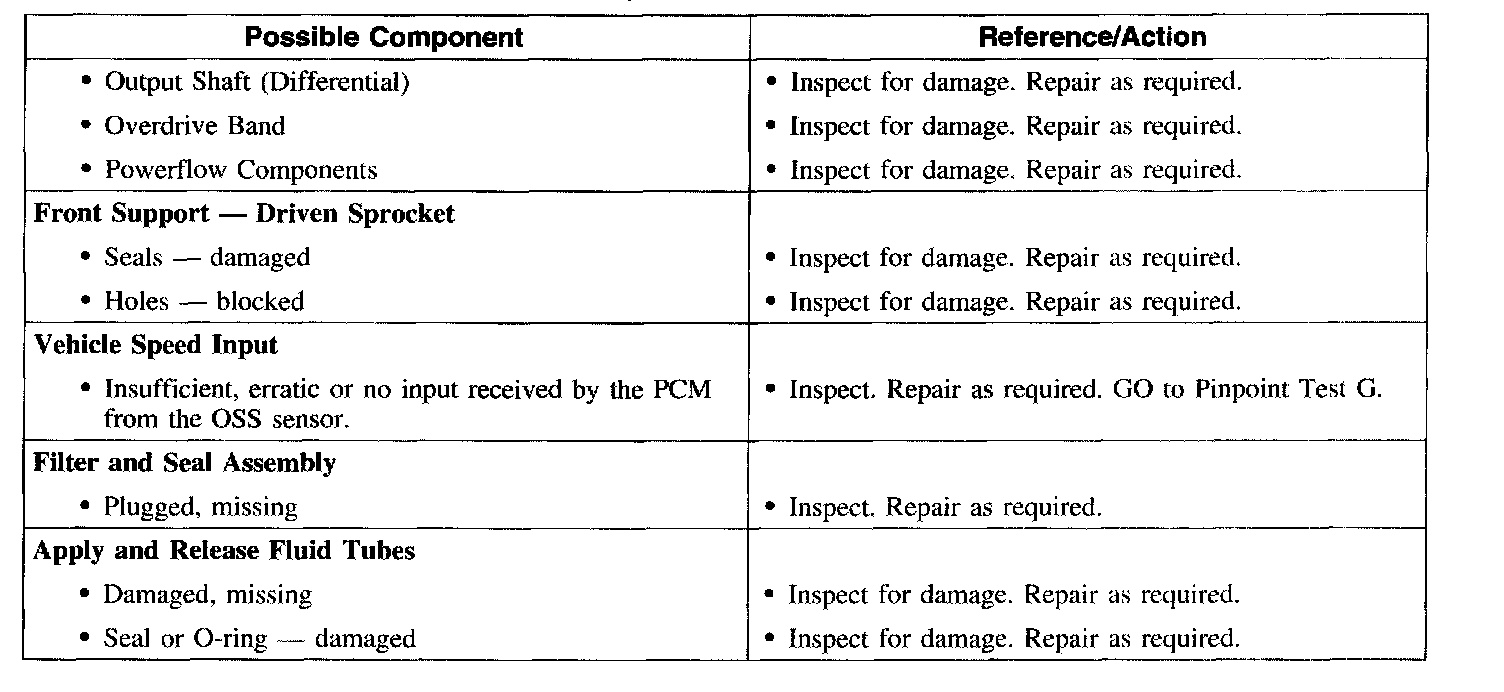

Part 1 Of 3:

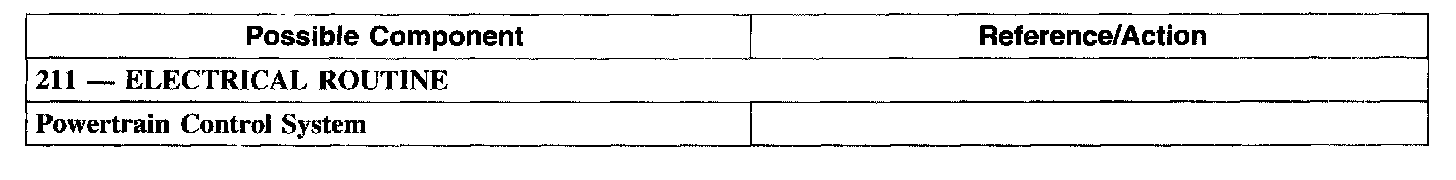

Part 2 Of 3:

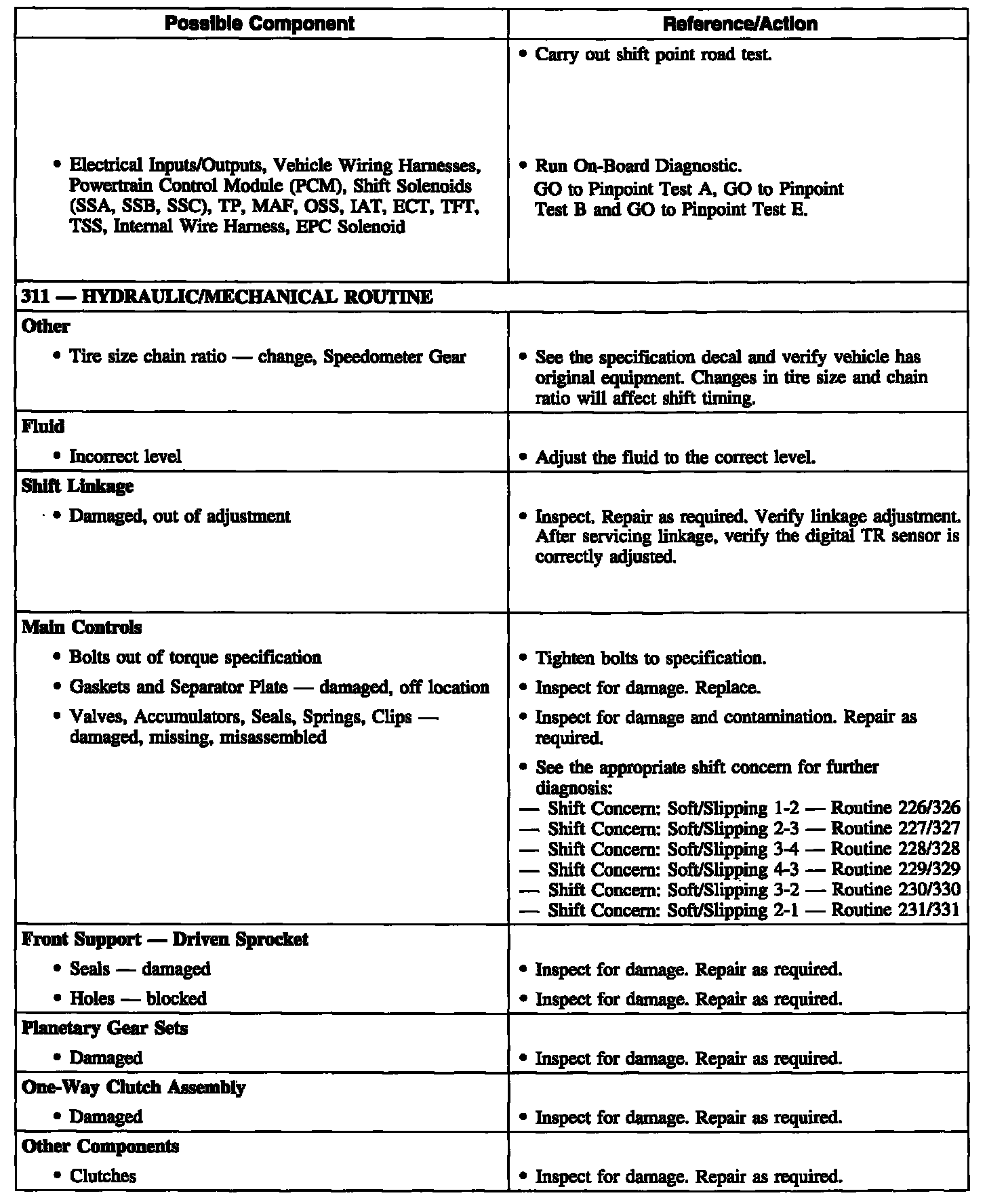

Part 3 Of 3:
