Test E: Electronic Pressure Control (EPC) Solenoid

PINPOINT TEST E: ELECTRONIC PRESSURE CONTROL (EPC) SOLENOID

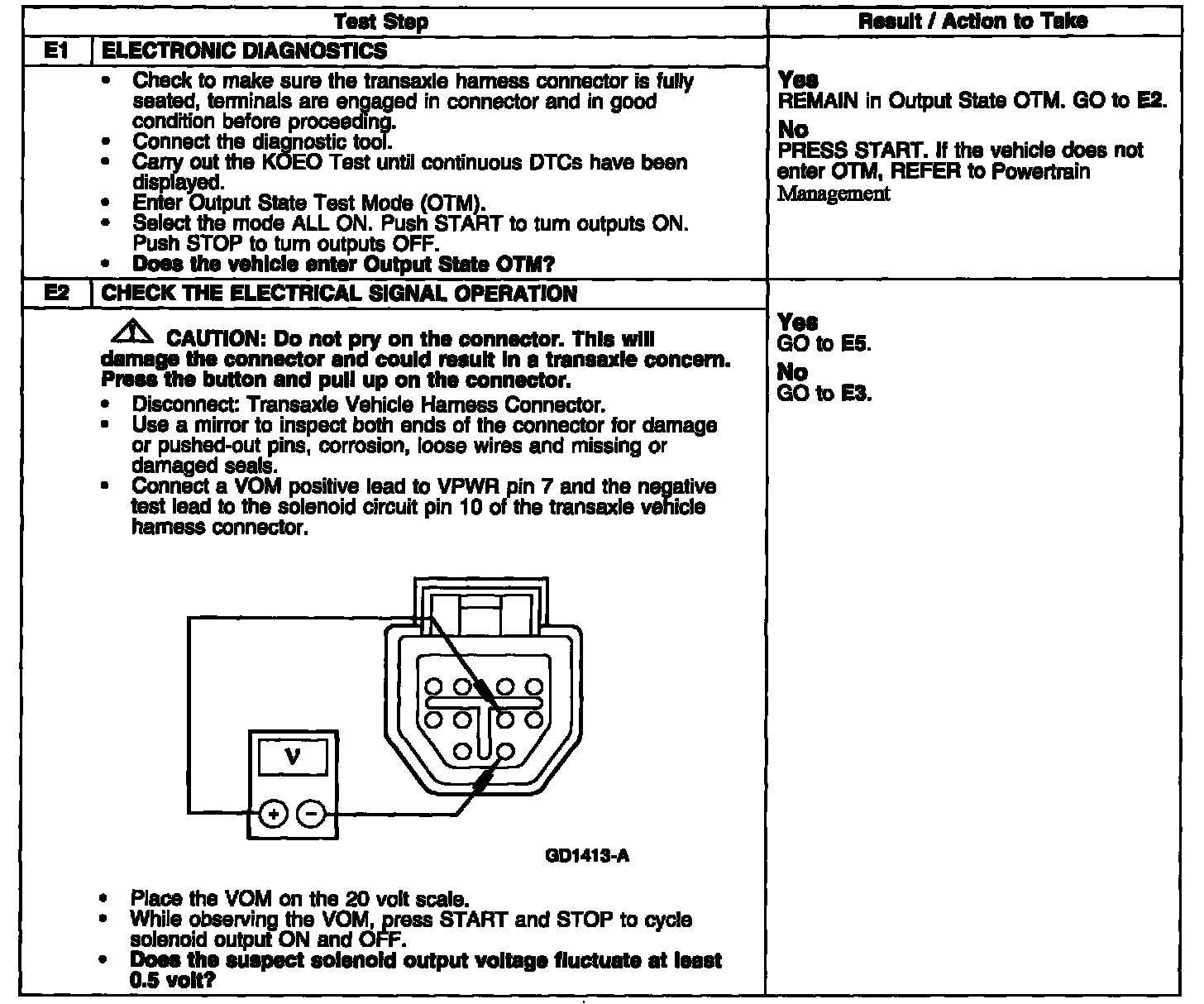

Test E1-E2:

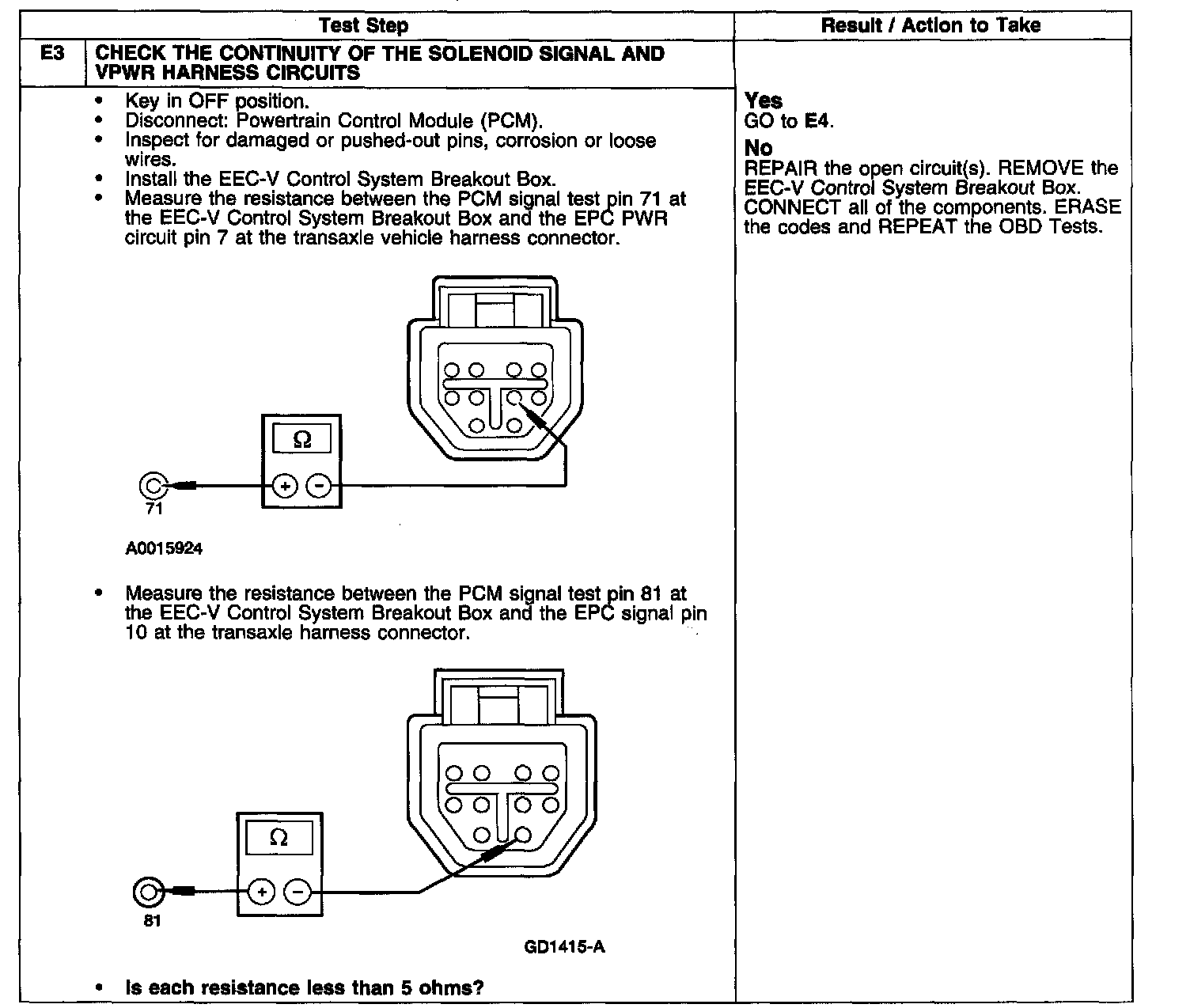

Test E3:

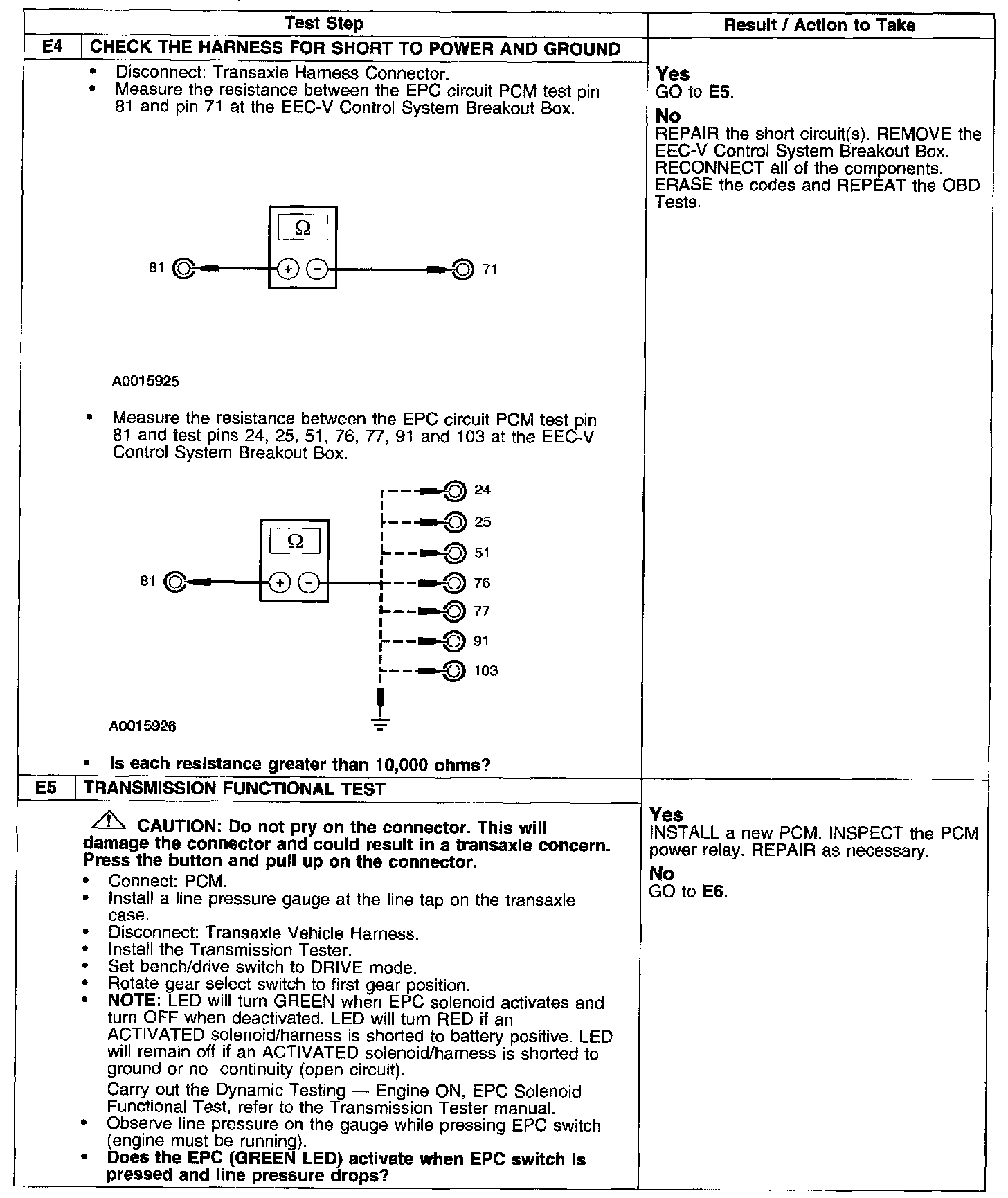

Test E4-E5:

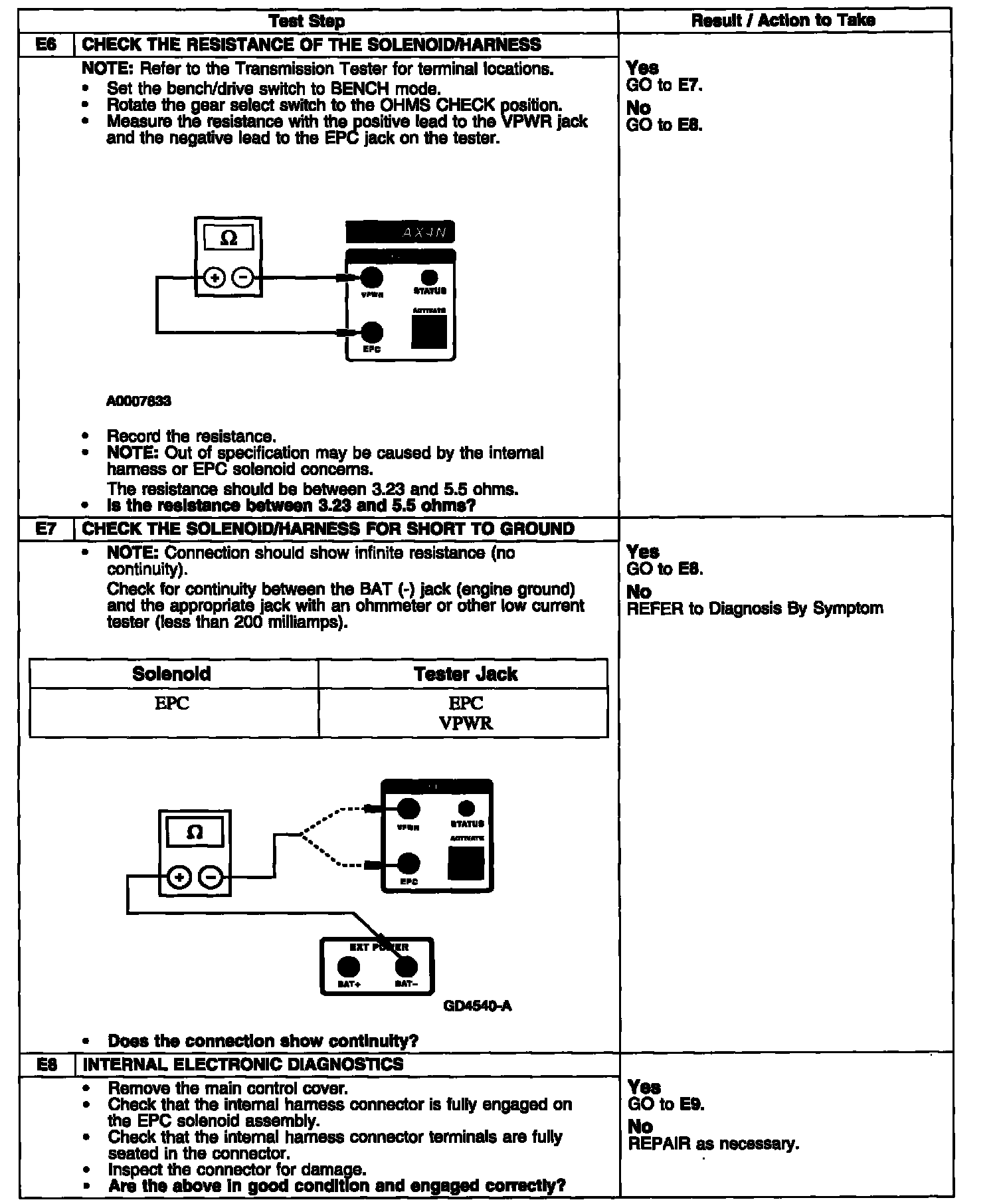

Test E6-E8:

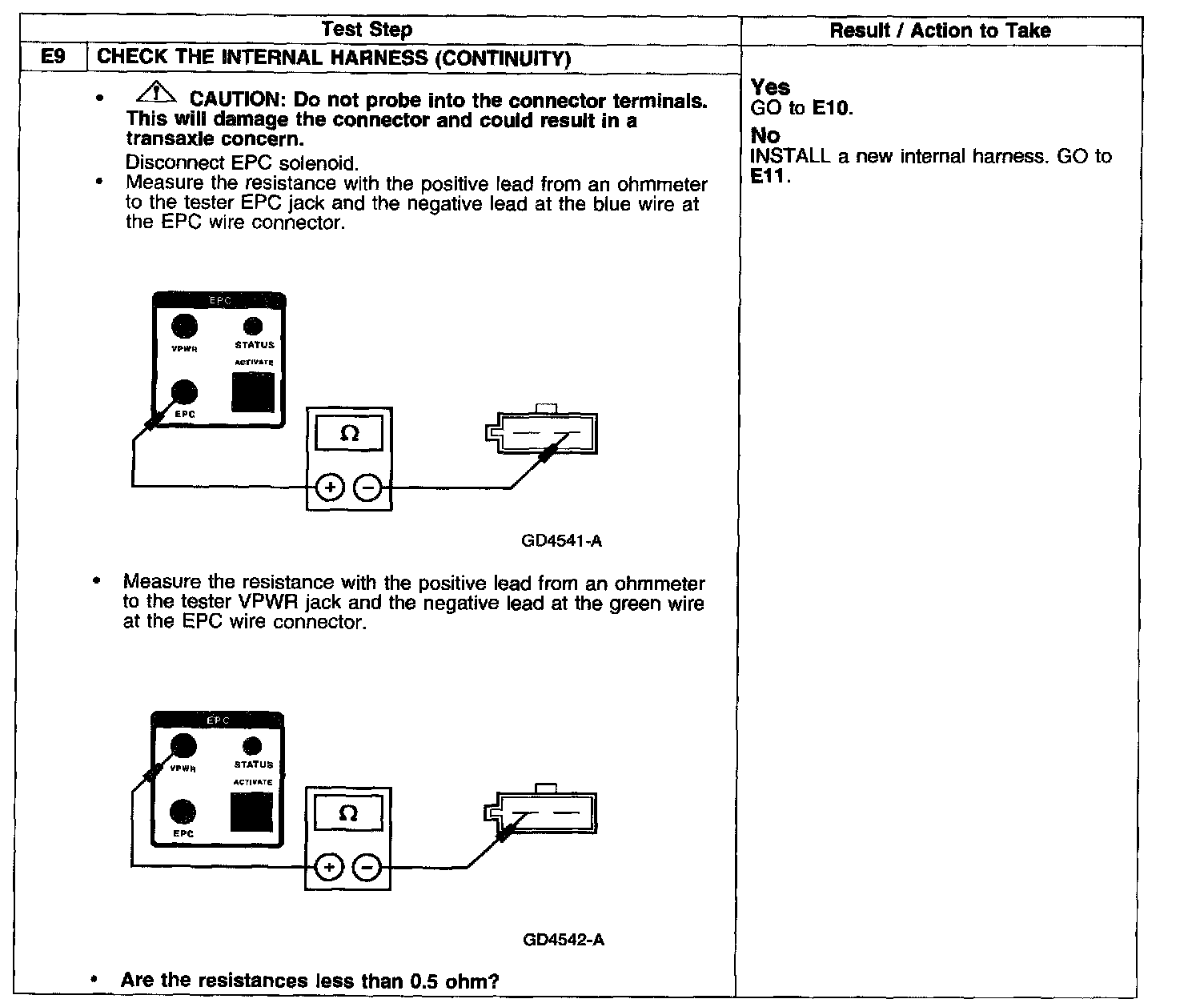

Test E9:

Test E10-E11:

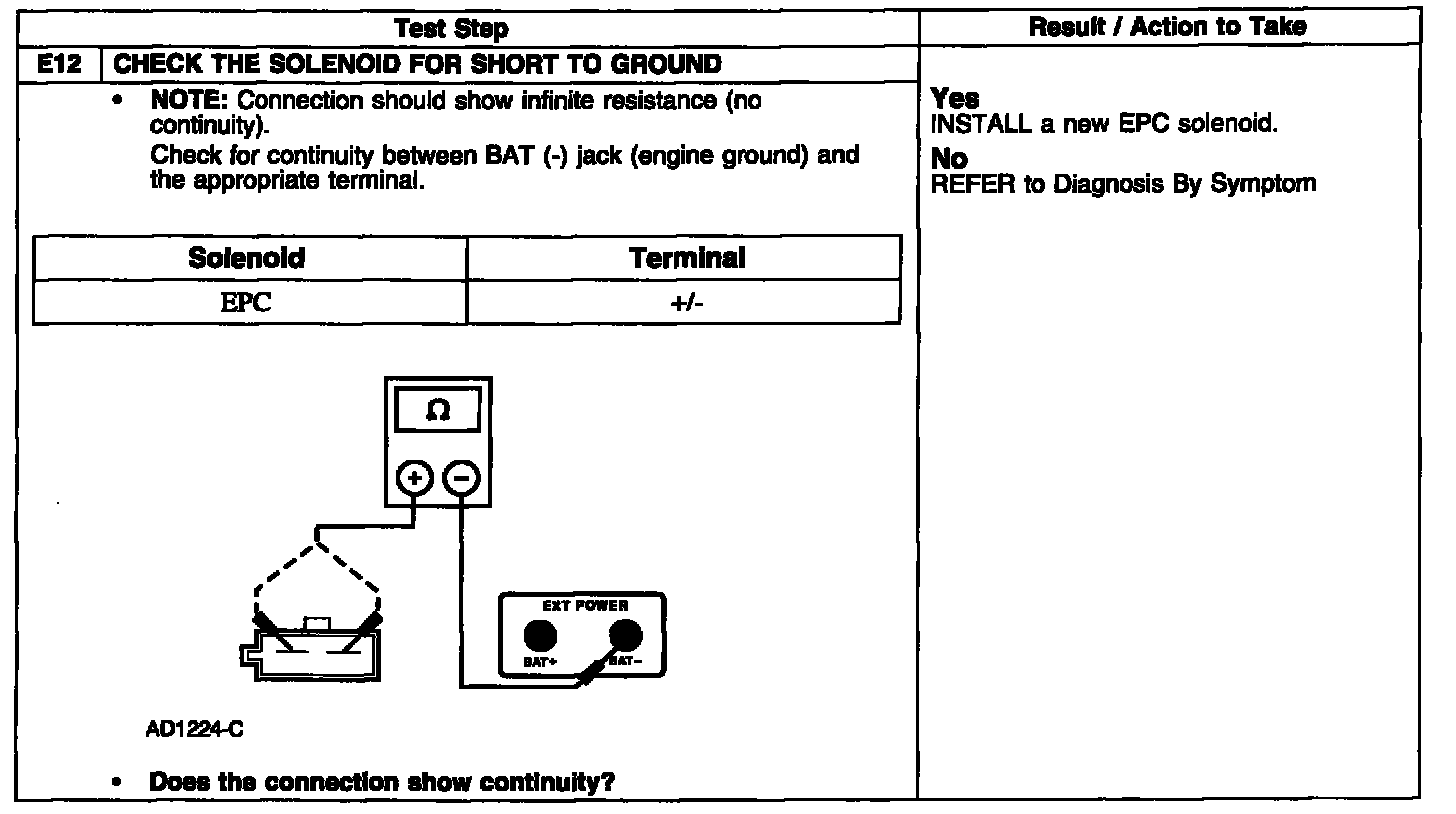

Test E12:

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.

NOTE: Refer to the Transaxle Internal Harness Connector illustration.
