Test C: Torque Converter Clutch (TCC) Solenoid

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

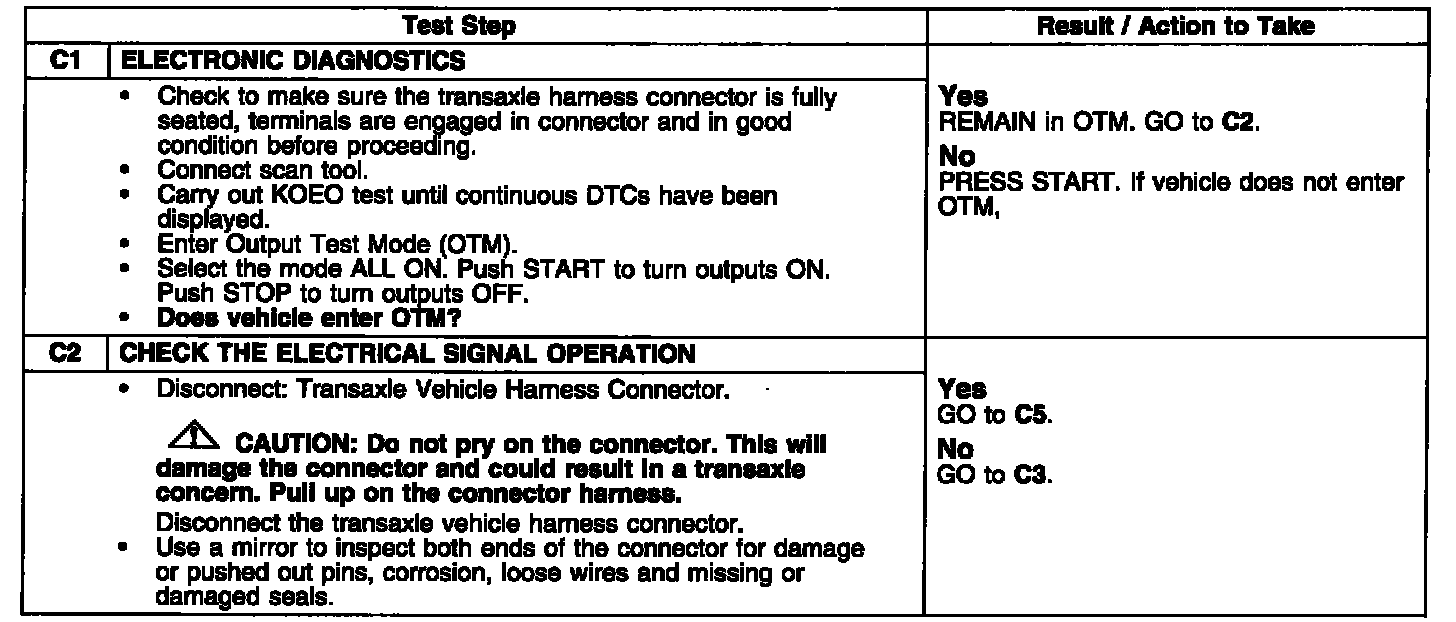

Test C1-C2:

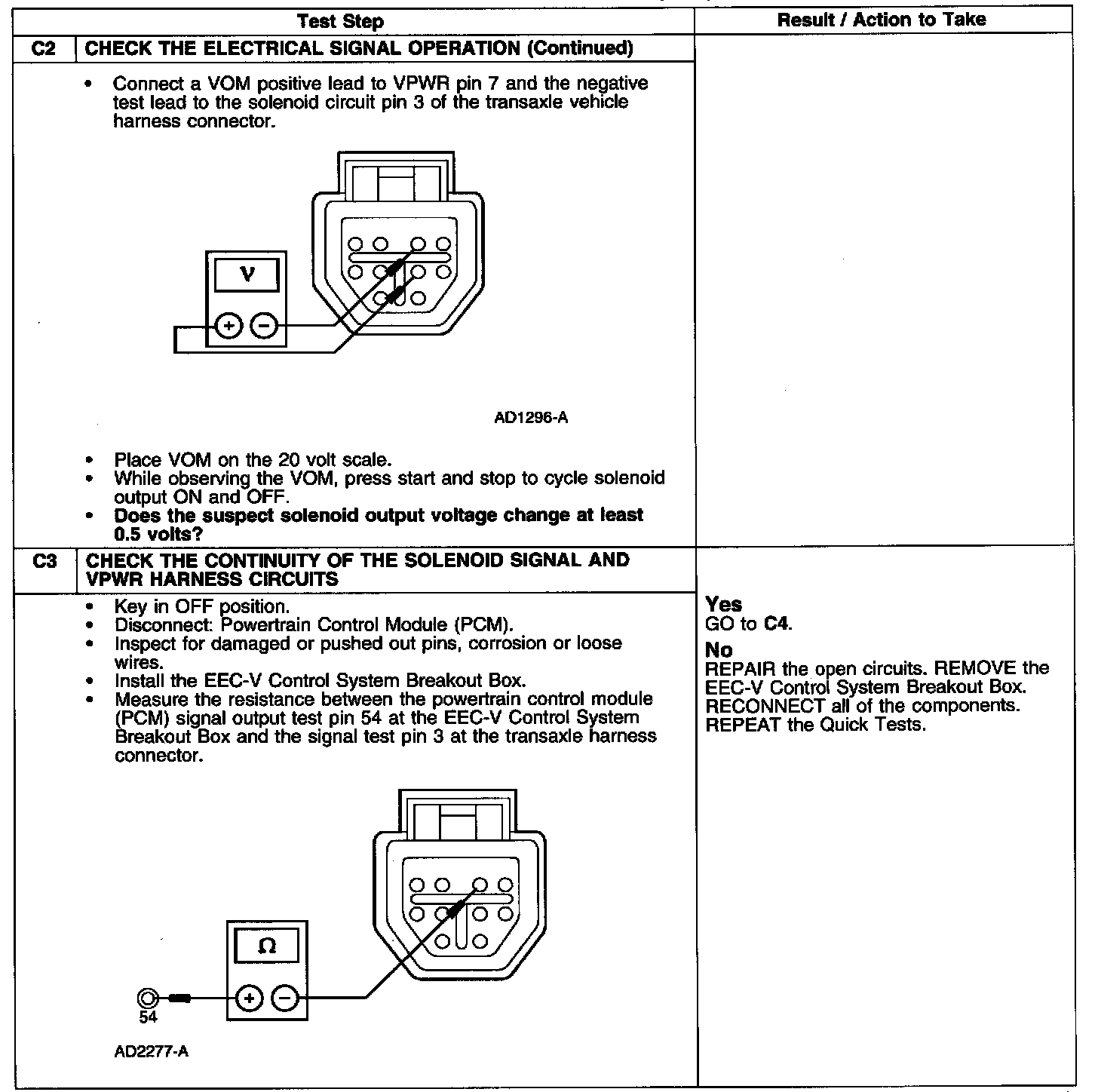

Test C2-C3:

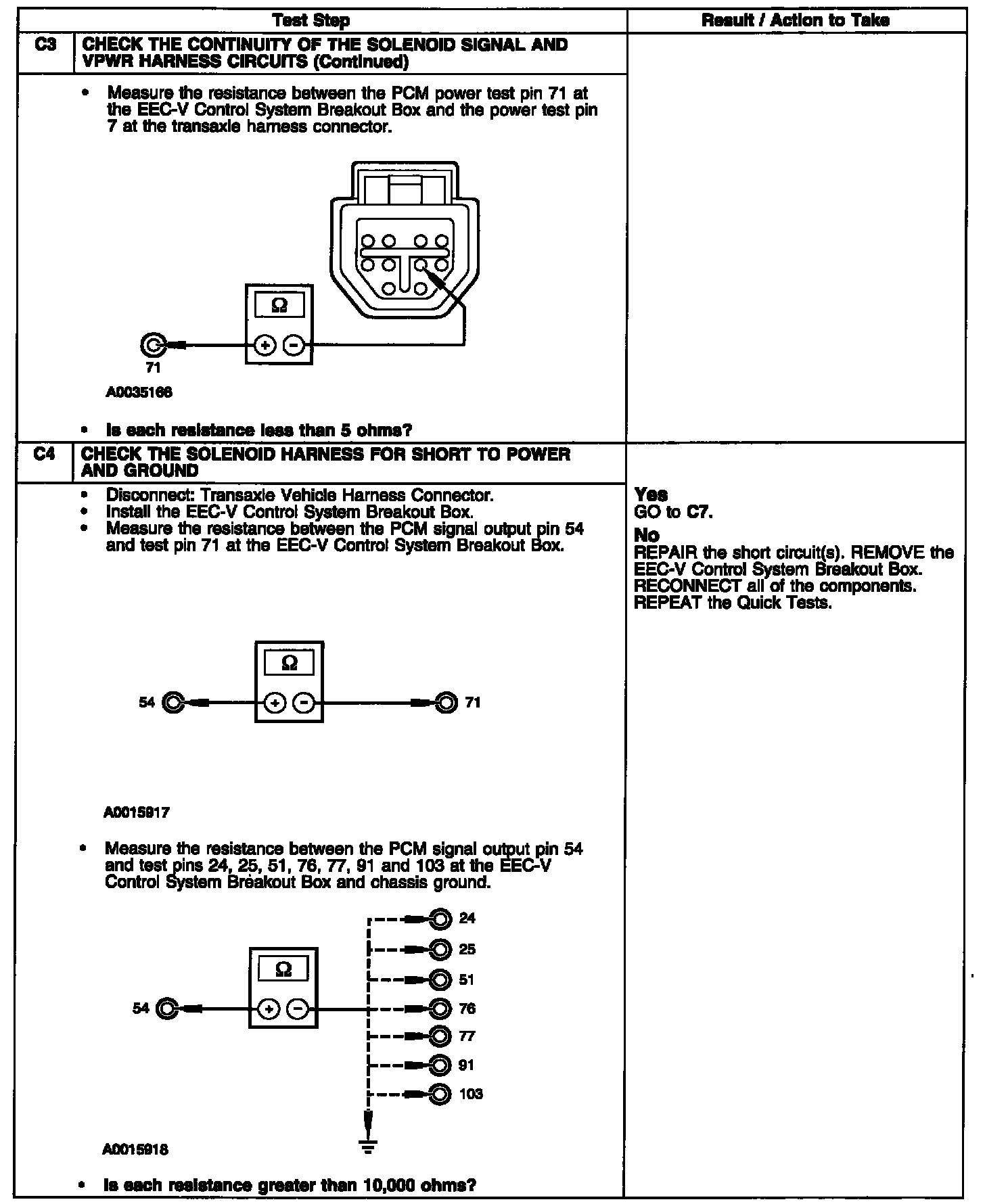

Test C3-C4:

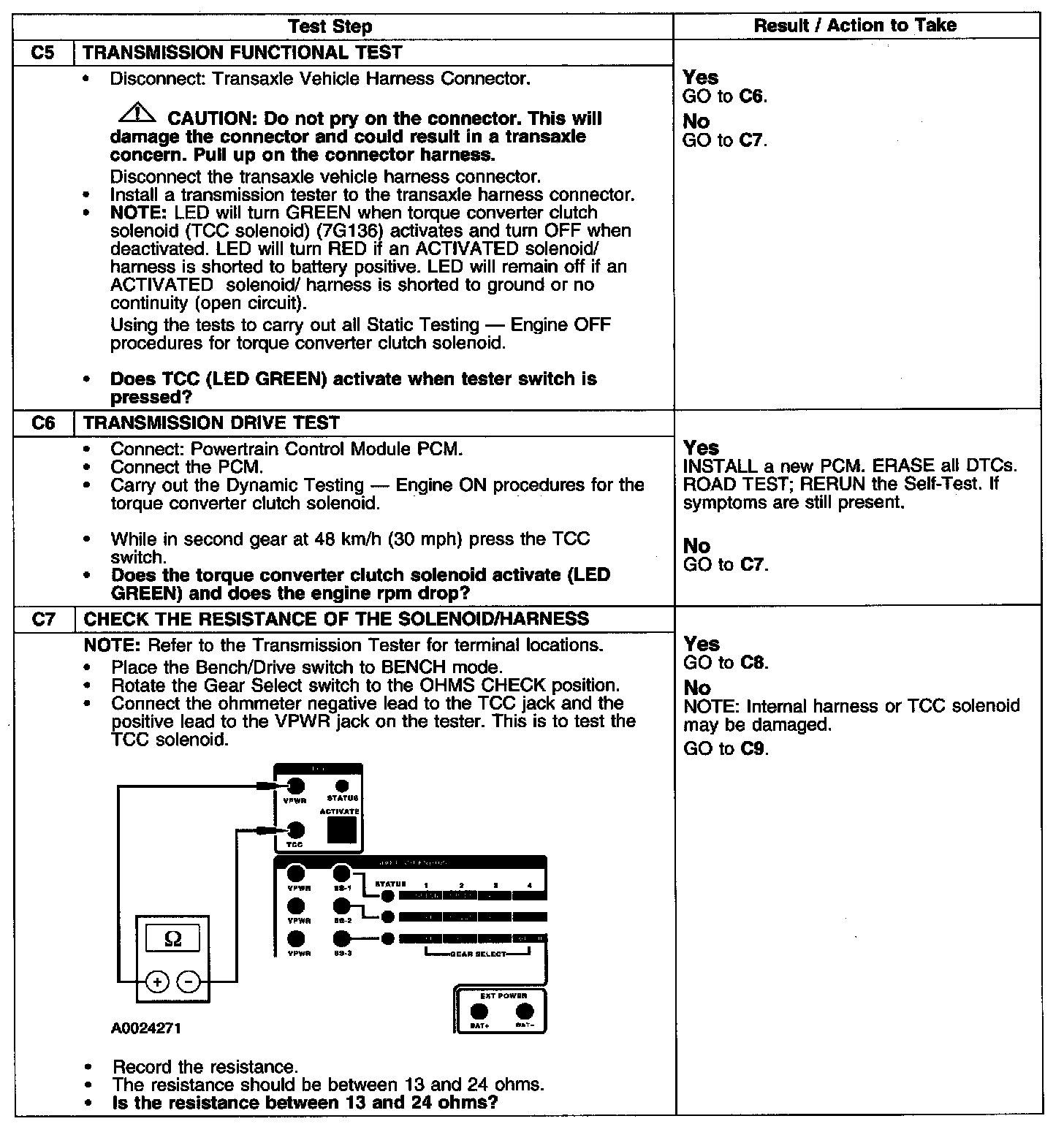

Test C5-C7:

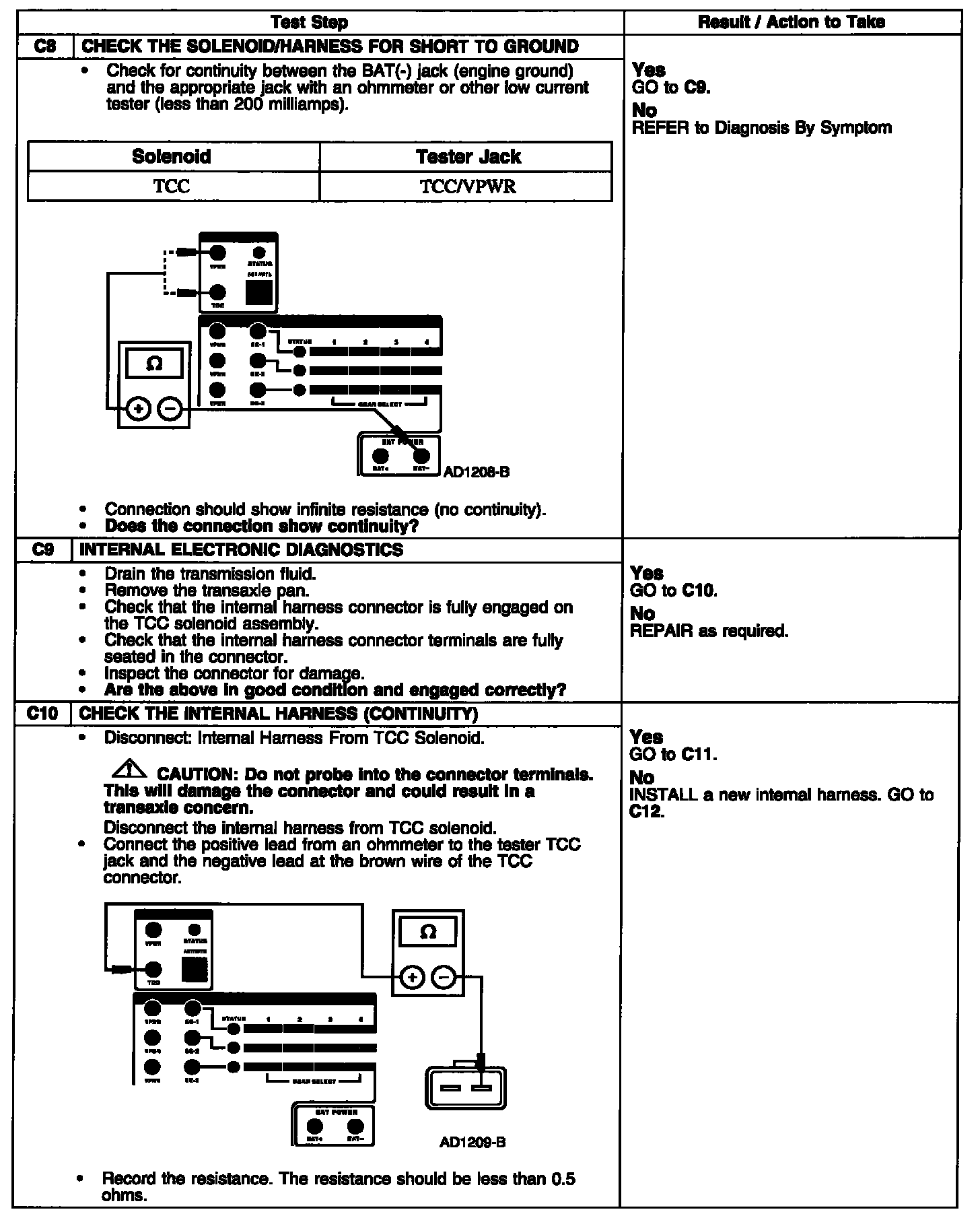

Test C8-C10:

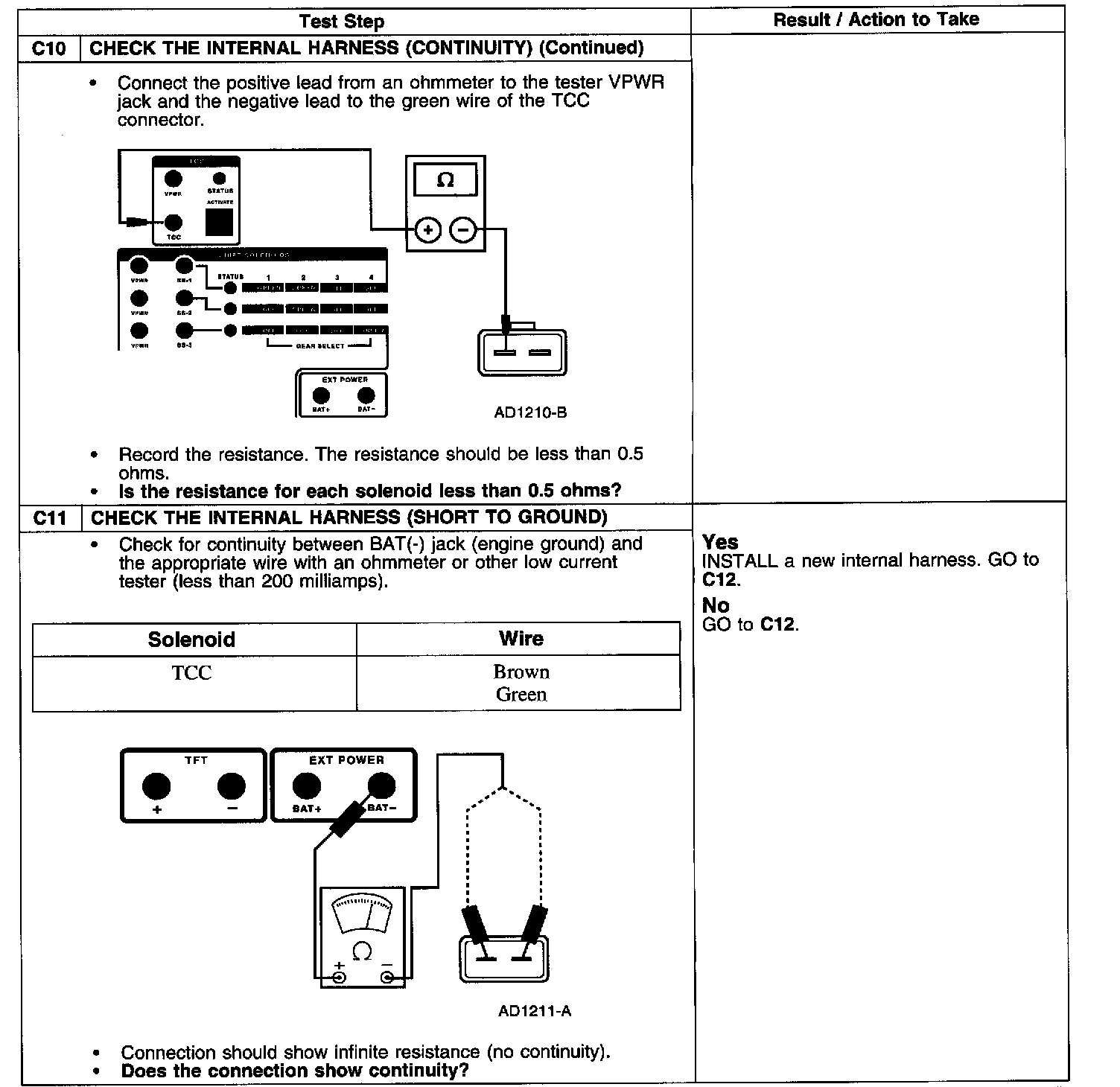

Test C10-C11:

Test C12-C13:

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.

NOTE: Refer to the Transaxle Internal Harness Diagram illustration.
