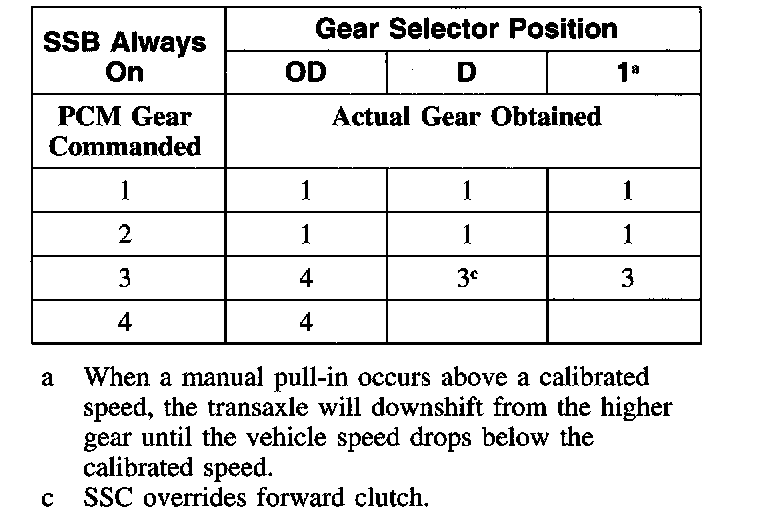

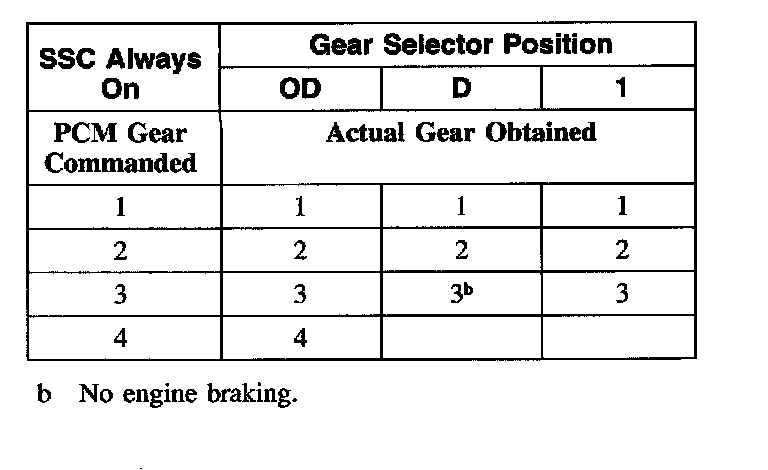

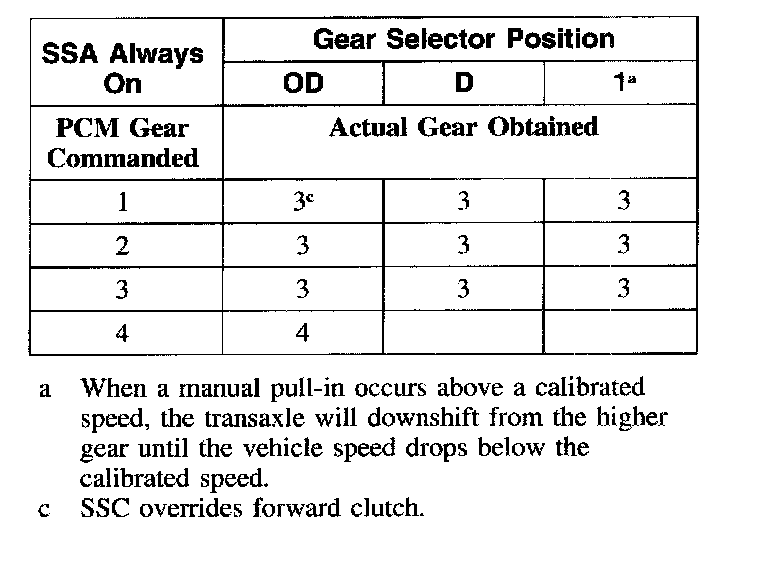

Shift Solenoid Failure Mode Chart "Always On"

Shift Solenoid Failure Mode Chart "Always On"











Failed ON due to power-train control module and/or vehicle wiring concerns; solenoid electrically or mechanically stuck on.
