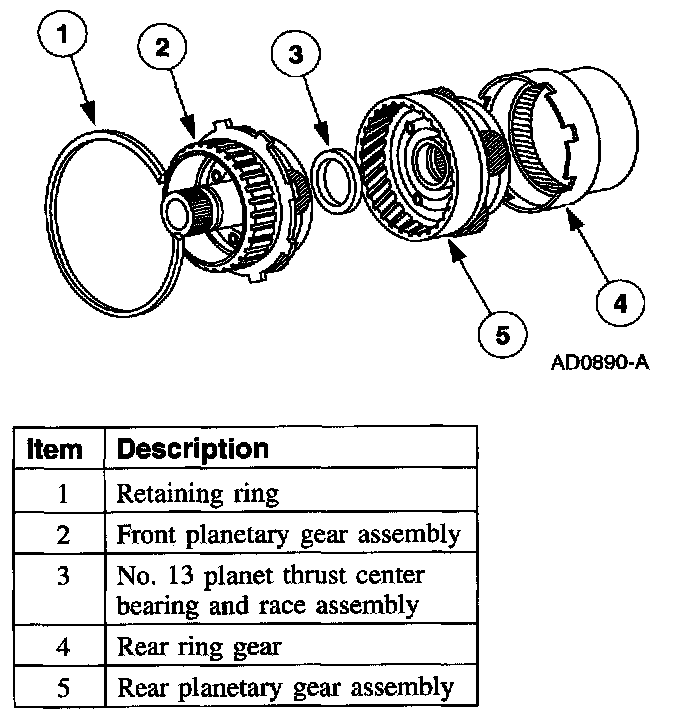

Planet Assembly

Planet Assembly





Disassembly

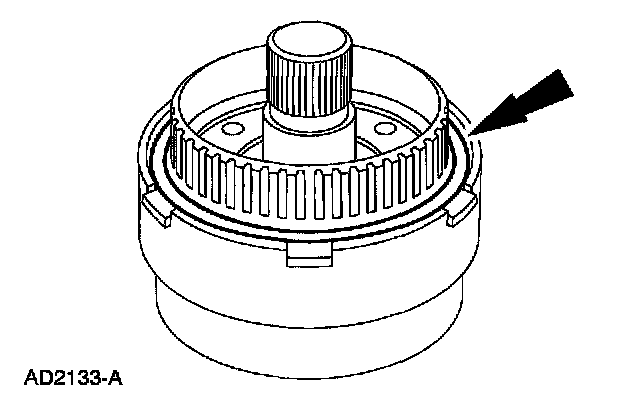

1. Remove the retaining ring.





2. Remove the front planet gear assembly. Clean and inspect for looseness and discoloration of the pinion gears or wear on the bearings. Repair as necessary.

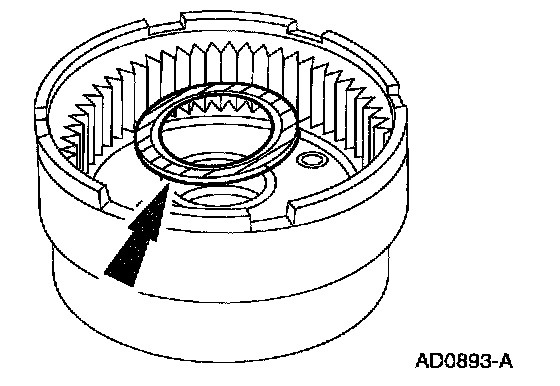

3. Remove the No. 13 needle bearing.

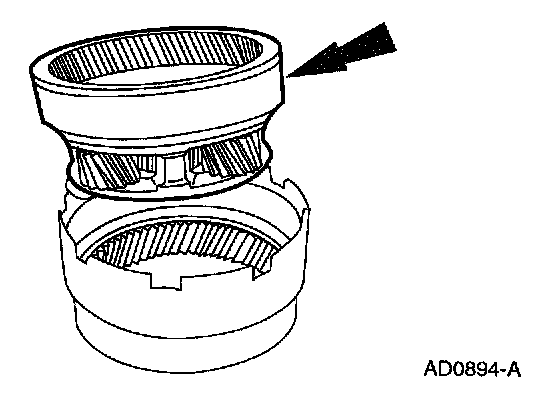

4. Remove the reverse planet.

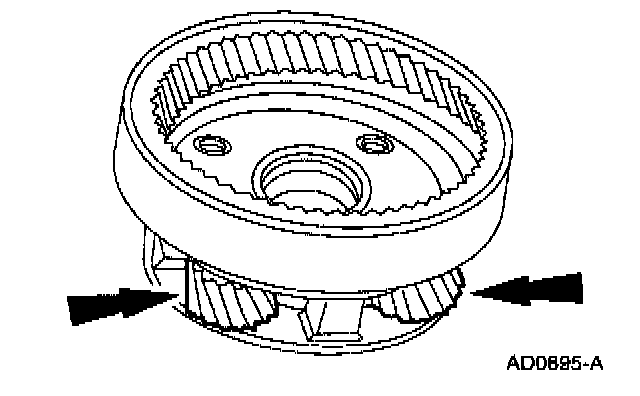

5. Clean and inspect the reverse planet for looseness or discoloration of the planet gears or wear on the bushings or bearings. Repair as necessary.

Assembly

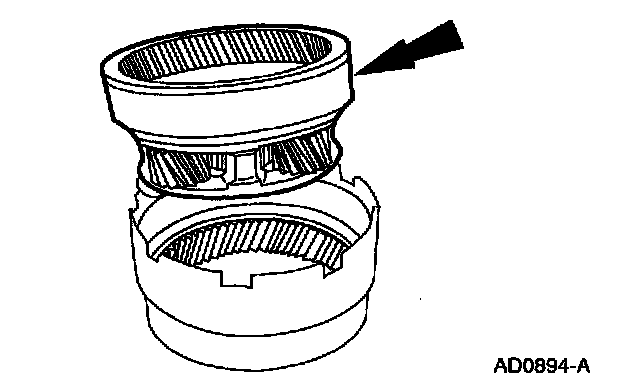

1. Install the reverse planet.





2. Install the No. 13 needle bearing.





3. Install the front planet gear assembly.





4. Install the retaining ring to the rear ring gear.
