End Play Check

End Play Check

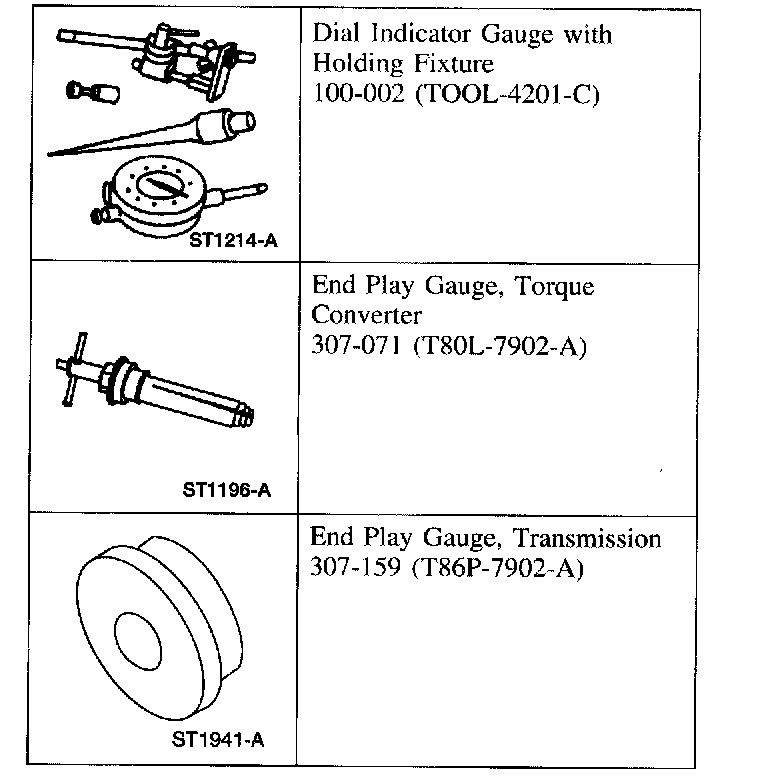

Special Tool(s)





1. Install the special tools into the torque converter.





2. Tighten the nut.





3. Install the special tool.

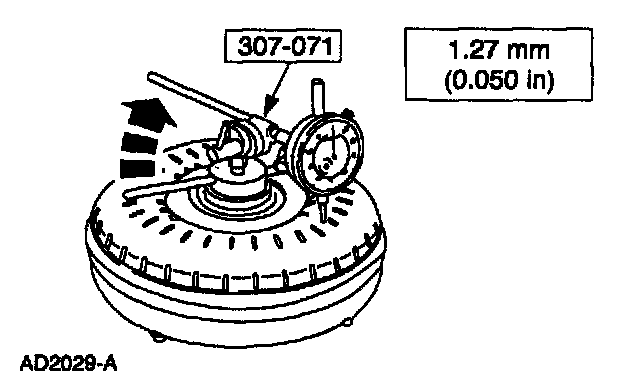

4. NOTE: If the indicator reading is above specification, install a new or remanufactured torque converter.

With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
