Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor 3.0 L MF1

Removal and Installation
1. Disconnect the battery ground cable.

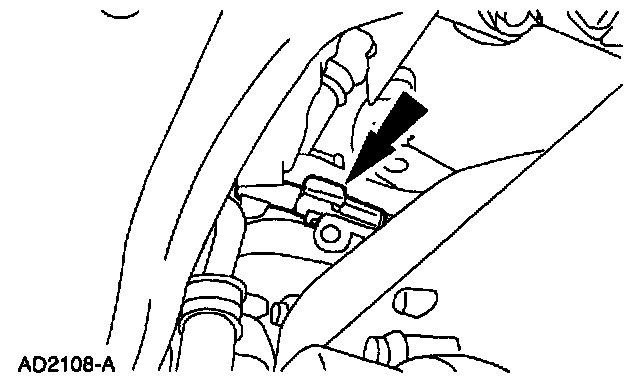

2. Disconnect the output shaft speed (OSS) sensor connector.





3. NOTE: The OSS sensor is located under the RH exhaust manifold.

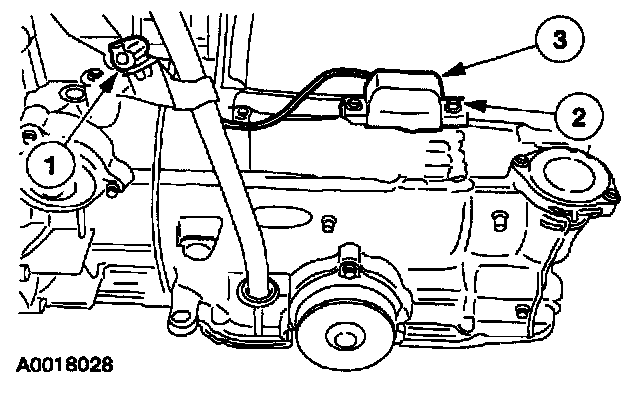

Remove the output shaft speed (OSS) sensor cover.
1. Remove the connector.
2. Remove the bolt.
3. Remove the cover.

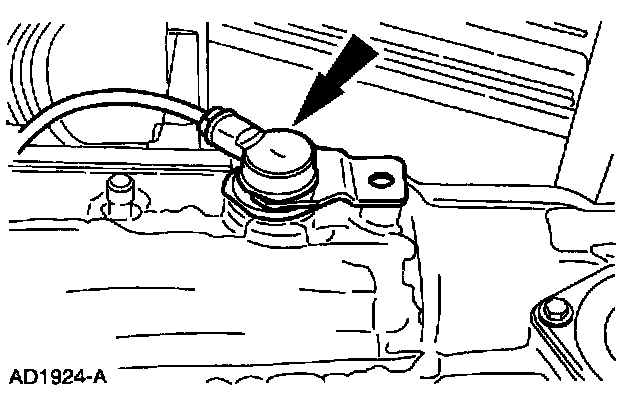

4. Remove the output shaft speed (OSS) sensor.





5. NOTE: Lubricate the OSS O-ring before installing the sensor.

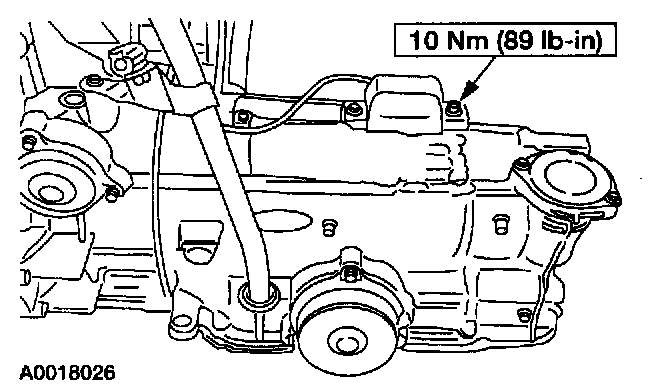

To install, reverse the removal procedure.
