Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

PINPOINT TEST C: THE IGNITION SWITCH IS INOPERATIVE

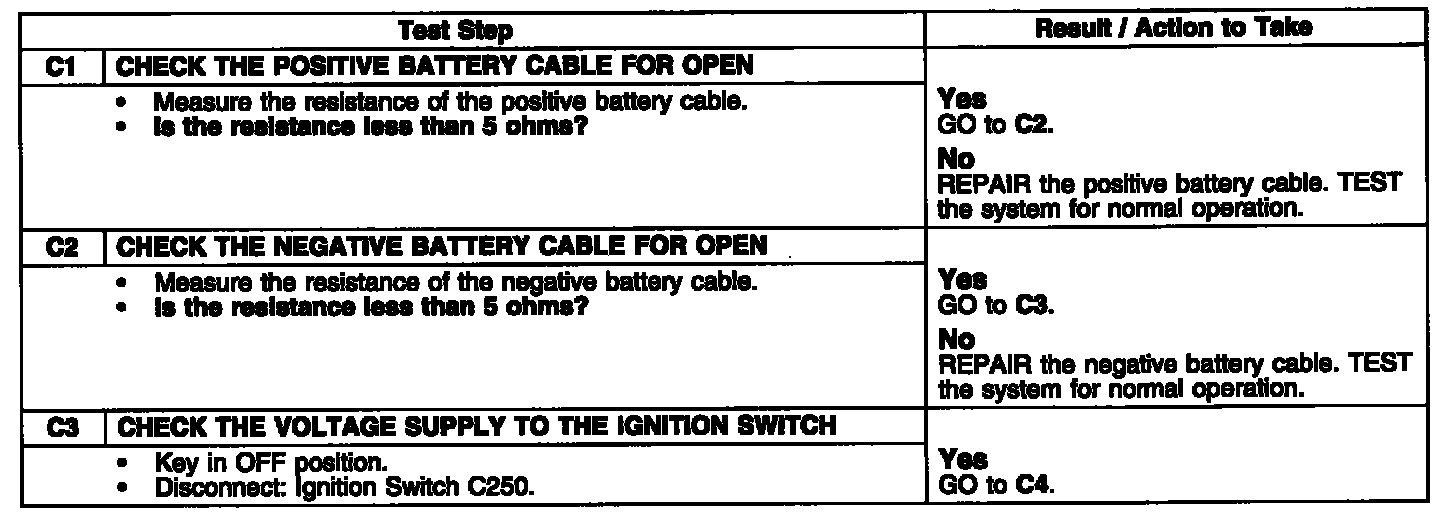

Test C1 - C3

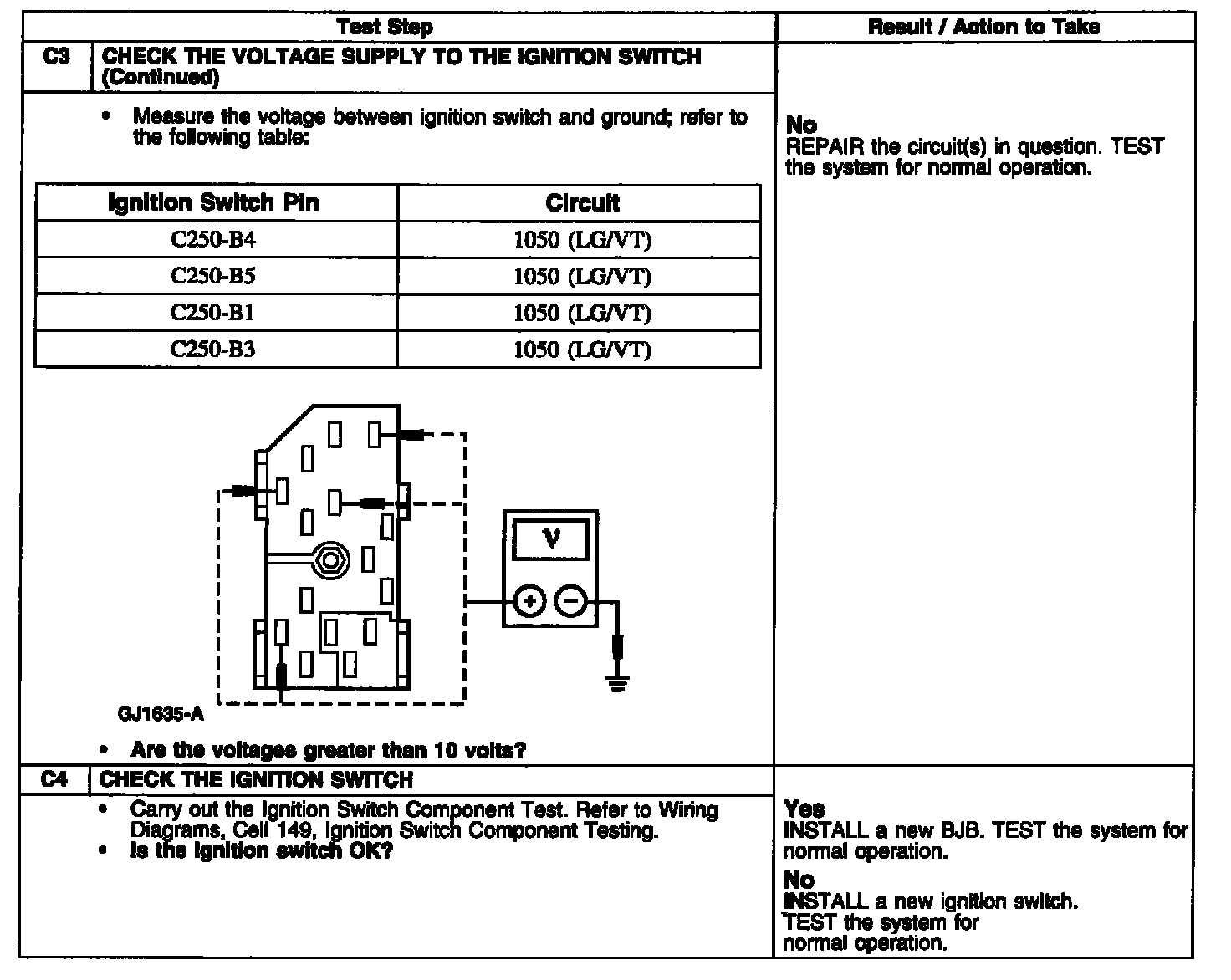

Test C3 - C4
